### **1. Why is Electrical Preventive Testing Critical for 220kV Power Systems?**

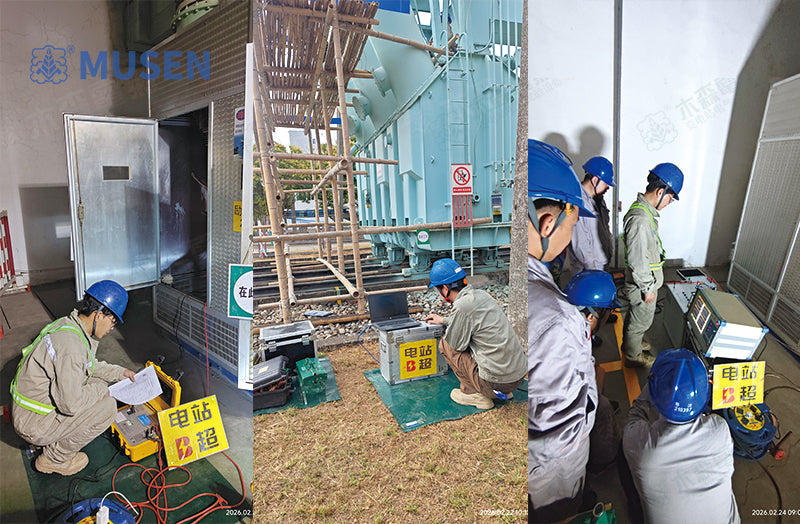

In high-voltage environments, such as the facilities managed by Guangdong * Power Generation Co., Ltd., the operational integrity of transformers determines the stability of the entire regional grid. **Electrical Preventive Testing** (Electrical Preventive Testing) serves as a data-driven defense mechanism against unforeseen insulation failures and mechanical displacements. By conducting systematic evaluations on two 220kV units and several 15.75kV excitation transformers, engineers can transition from reactive repairs to predictive maintenance, significantly reducing the Total Cost of Ownership (TCO) for power plant assets.

### **2. How to Detect Internal Transformer Damage with Short Circuit Impedance?**

Mechanical deformation often occurs silently due to the massive electrodynamic forces during external short circuits. The **MS-103 Transformer Short Circuit Impedance Tester** is the primary tool used by Wuhan Musen Electric to quantify these changes. By measuring the low-voltage impedance, technicians compare current data against the transformer's nameplate or "birth records." A deviation exceeding 2% often indicates winding movement or physical alteration, providing an early warning before the unit is energized under full load.

### **3. Can Winding Deformation Fingerprinting Prevent Catastrophic Failures?**

Traditional testing methods often miss subtle geometric shifts within the coil structures. The **MSBR-II Transformer Winding Deformation Tester** employs Frequency Response Analysis (FRA) to solve this challenge. By injecting a swept frequency signal (ranging from 1kHz to 2MHz), the device creates a unique transfer function for each winding.

Technical Utility: This "fingerprinting" technique allows the team at Musen Electric to identify axial displacement, radial bulging, and even loosened clamping structures without untanking the transformer, saving weeks of downtime.

### **4. What Are the Precision Requirements for 15.75kV Excitation Testing?**

Excitation transformers bridge the gap between generation and the grid, requiring extreme reliability. For these units, **Electrical Preventive Testing** focuses on winding continuity and insulation strength.

The **MS-510R Transformer DC Resistance Tester** utilizes a high-precision constant current source to overcome the large inductance of the windings, providing rapid stabilization and accurate milliohm readings. This ensures that every internal connection is robust enough to handle the high-current demands of the excitation system without overheating.

### **5. How Does Partial Discharge Testing Identify Latent Insulation Defects?**

For the most sensitive insulation assessments, the combination of the **MSXZ(WJ)-15kVA PD-Free Variable Frequency Power Supply** and the **MSJF-9208 Partial Discharge Comprehensive Tester** is utilized.

Partial discharge (PD) is a localized electrical breakdown that does not completely bridge the space between conductors. Over time, PD erodes the insulation, leading to total failure. By using a "PD-Free" power source from Wuhan Musen Electric, the test environment remains quiet, allowing the MSJF-9208 to detect microscopic "pockets" of ionization. This level of precision is vital for the 15.75kV induced voltage and insulation health checks.

### **6. Which MS-Series Equipment is Essential for Modern Power Plants?**

Standardized testing requires standardized equipment. The success of technical operations at Guangdong * Power Generation Co., Ltd. is underpinned by the following specialized hardware:

### **7. Summary of Results: The Impact of Systematic Testing**

By integrating these advanced diagnostics, the **电气预防性试验** project confirmed the operational readiness of the 220kV transformers and ensured the excitation systems met all safety benchmarks. This data-centric approach provides the facility managers with the necessary evidence to authorize continued operation or plan targeted maintenance during the next scheduled outage.
