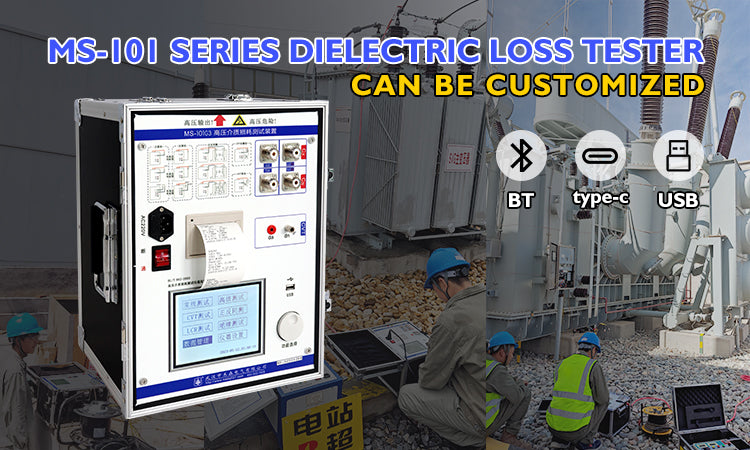

Is Your Insulation Reliable? How to Use an Anti-interference Dielectric Loss Tester for Accurate Diagnostics?

 Anti-interference Dielectric Loss Tester, Tan Delta Testing, Insulation Aging Detection, HV Transformer Maintenance, Capacitance Measurement

 Discover how to identify hidden insulation defects in high-voltage assets. Learn why an Anti-interference Dielectric Loss Tester is essential for accurate Tan Delta measurements in noisy substation environments and explore professional selection criteria.

1. Why is Precise Insulation Diagnostic Critical for Grid Stability?

In global power infrastructure, the sudden failure of a high-voltage transformer or bushing often results in massive economic losses. The primary culprit is usually "insulation degradation." To quantify this degradation, engineers measure the dielectric loss factor. An Anti-interference Dielectric Loss Tester is the industry-standard tool for this task, specifically designed to function within the high electromagnetic noise of 500kV substations. By analyzing the phase shift between voltage and current, the device determines if the insulation system is compromised by moisture or chemical aging.

2. How Does Frequency Conversion Defeat Substation Interference?

Field testing in active switchyards faces a significant hurdle: 50Hz/60Hz power frequency interference. Standard bridges often yield erratic data in these environments. Modern technology developed by Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) utilizes Advanced Frequency Conversion. By injecting test signals at 45Hz and 55Hz, the Anti-interference Dielectric Loss Tester digitally filters out the background grid noise. This ensures that the Tan Delta (tanδ) and capacitance readings reflect the true state of the equipment rather than environmental interference.

3. What Are the Indicators of Moisture and Thermal Aging?

Effective condition-based maintenance relies on data-driven decisions. When performing a Tan Delta test, two primary metrics are recorded:

• Tan Delta (tanδ): An increase in this ratio indicates rising resistive leakage current, typically caused by moisture ingress or carbonization of the oil-paper insulation.

• Capacitance (Cx): Changes in capacitance often signal physical deformation of transformer windings or the breakdown of partial capacitive layers in high-voltage bushings. Reliable diagnostic equipment must provide a resolution of 0.001% for Tan Delta to catch these defects at an embryonic stage.

4. Technical Specifications and Integrated Testing Capabilities

To meet the rigorous demands of international power engineering firms, the Anti-interference Dielectric Loss Tester incorporates several specialized functions:

• Integrated CVT Testing: Features a self-excitation function to measure C1 and C2 capacitance and Tgδ simultaneously with a single connection.

• Reverse-Connection Shielding: Enables 10kV measurements on grounded CVT busbars without disconnecting leads, drastically reducing labor time.

• High-Voltage Expansion: Built-in capability for external voltage application and standard capacitor (Cn) measurement for lab-grade precision.

• Wide-Range CVT Ratio: Supports ratio measurements for CVT devices ranging from 35kV to 500kV.

• Multi-Channel Efficiency: Four-channel synchronous measurement allows for testing four samples at once, increasing throughput.

• Comprehensive Insulation Suite: Includes built-in Insulation Resistance (IR), Polarization Index (PI), and Dielectric Absorption Ratio (DAR) testing.

• LCR Functionality: Automated measurement of inductance, capacitance, and resistance for versatile component analysis.

5. Professional Selection Guide for High-Voltage Testing Assets

When procuring testing equipment for overseas projects, technical support and compliance are paramount. Wuhan Musen Electric Co., Ltd. provides robust diagnostic solutions that align with international standards. Choosing the right Anti-interference Dielectric Loss Tester involves verifying the instrument's ability to handle high-capacitance loads and its integration of safety features like ground-fault protection and emergency stop protocols, ensuring both data integrity and personnel safety.

Frequently Asked Questions (FAQ)

Q1: Can this equipment be used in live substation environments? A: Yes. The device is specifically engineered with frequency-shifting technology to negate the effects of electromagnetic induction from nearby live high-voltage lines.

Q2: Why is the CVT self-excitation method preferred? A: It eliminates the need for an external high-voltage source and heavy reactors. The tester provides the necessary excitation voltage directly to the CVT's secondary side, making field operations safer and more portable.

Q3: Does the device support automated data logging? A: Absolutely. It features internal storage for test results and USB export capabilities, allowing engineering teams to perform trend analysis on insulation aging over multiple years.

Q4: Is it possible to measure insulation resistance with the same unit? A: Yes, the professional model integrates a high-voltage insulation resistance tester, allowing you to obtain Tan Delta, Capacitance, and PI/DAR values in a single test session.
