Is Your High Voltage Asset Safe? Why a Partial Discharge Free Test System is the Industry Standard?


Partial Discharge Free Test System, PD Free AC Test System, SF6 Insulated PD Free Transformer, High Voltage Insulation Testing, Wuhan Musen Electric

 Discover how a Partial Discharge Free Test System from Wuhan Musen Electric ensures the reliability of transformers and cables. Learn about SF6 insulated technology and integrated PD testing solutions for global power projects.

1. Why is a Partial Discharge Free Test System Critical for Global Power Infrastructure?

In the rigorous field of international power engineering, the integrity of high-voltage insulation is the primary factor determining the lifespan of electrical assets. For utility companies and EPC contractors, undetected insulation defects can lead to catastrophic grid failures. A Partial Discharge Free Test System is not merely a piece of laboratory equipment; it is a vital diagnostic gatekeeper.

By eliminating background interference and internal equipment noise, this system allows engineers to pinpoint microscopic insulation voids in transformers and cables, ensuring that every component meets the highest international safety standards before commissioning.

2. Technical Superiority of the Partial Discharge Free AC Test System in Modern Labs Traditional high-voltage testing often struggles with electromagnetic "pollution," where the testing transformer itself generates discharges that mask the true condition of the test object. Wuhan Musen Electric addresses this by utilizing advanced shielding and filtering technologies. Our Partial Discharge Free AC Test System provides a pristine testing environment. This level of precision is essential for sensitive diagnostic tasks, such as measuring dielectric loss and discharge magnitude in high-voltage components, where accuracy is measured in single-digit picocoulombs (pC).

3. Operational Efficiency of SF6 Insulated PD Free Transformer Technology For overseas power projects where site space and logistics are often constrained, the move toward gas-insulated solutions is a significant trend. The SF6 Insulated PD Free Transformer offers a high-power density solution that is significantly lighter than traditional oil-immersed units. This SF6 technology provides superior arc quenching and moisture resistance, ensuring the system remains stable across diverse climatic conditions—from humid tropical substations to dry high-altitude research facilities. Its fully enclosed metal structure inherently blocks external interference, making it the most reliable choice for field-site quality assurance.

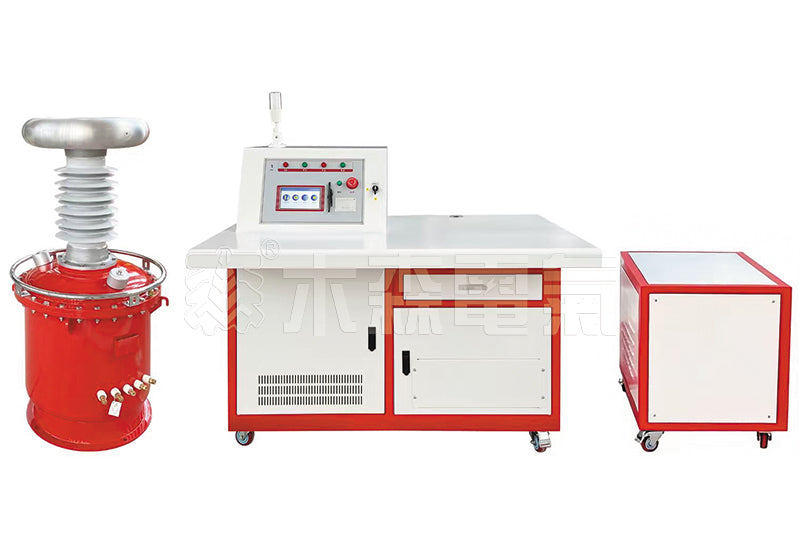

 4. Integrated MS-YDQW Series: Performance Data and Specifications The MS-YDQW series represents a leap in integrated engineering, consolidating multiple high-voltage components into a single, modular gas-filled vessel. This design minimizes the loop inductance and stray capacitance that typically hinder PD measurements. MS-YDQW Series Technical Models: YDQW-10kVA/100kV – Ideal for small-scale component testing. YDQW-30kVA/100kV – Balanced for laboratory and mobile testing units. YDQW-50kVA/250kV – Suitable for medium-sized power transformers. YDQW-250kVA/500kV – Designed for ultra-high voltage (UHV) grid equipment validation. Core Technical Features: 5. FAQ: Expert Insights on High-Voltage PD Testing

Q1: How does an integrated system compare to traditional modular setups in terms of accuracy?

A: Traditional modular setups often suffer from high background noise (near 10pC) due to long high-voltage connection lines. Our integrated MS-YDQW series houses the resistor and capacitor within the same SF6 chamber, successfully lowering the noise floor to <5pC for superior accuracy.

Q2: What are the maintenance requirements for SF6-insulated test transformers?

A: Unlike oil-filled units that require regular sampling and purification, these systems are virtually maintenance-free. Users only need to monitor the gas pressure and density through the integrated gauges provided by Wuhan Musen Electric.

 Q3: Is the equipment suitable for use in extreme environmental conditions?

A: Yes. The fully enclosed metal environment protects the high-voltage components from dust, humidity, and altitude-induced corona, making it highly effective for global power engineering projects in varied environments.

Q4: How does Musen Electric ensure the safety of the operators during 500kV testing?

 A: Our systems include a rapid-response protection unit. In the event of a test object breakdown or voltage surge, the system triggers an automatic alarm and returns the voltage to zero in milliseconds to protect both personnel and the equipment. For more technical data and procurement support, visit www.musenelectric.com.
