For international power utilities and high-voltage engineering firms, insulation failure remains the primary cause of unplanned outages. Identifying these vulnerabilities early is not just a maintenance preference—it is a financial and safety imperative. At Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), we provide the technical expertise and hardware necessary to detect these silent threats before they lead to catastrophic equipment destruction.
1. Why is Partial Discharge Detection Critical for Grid Stability?

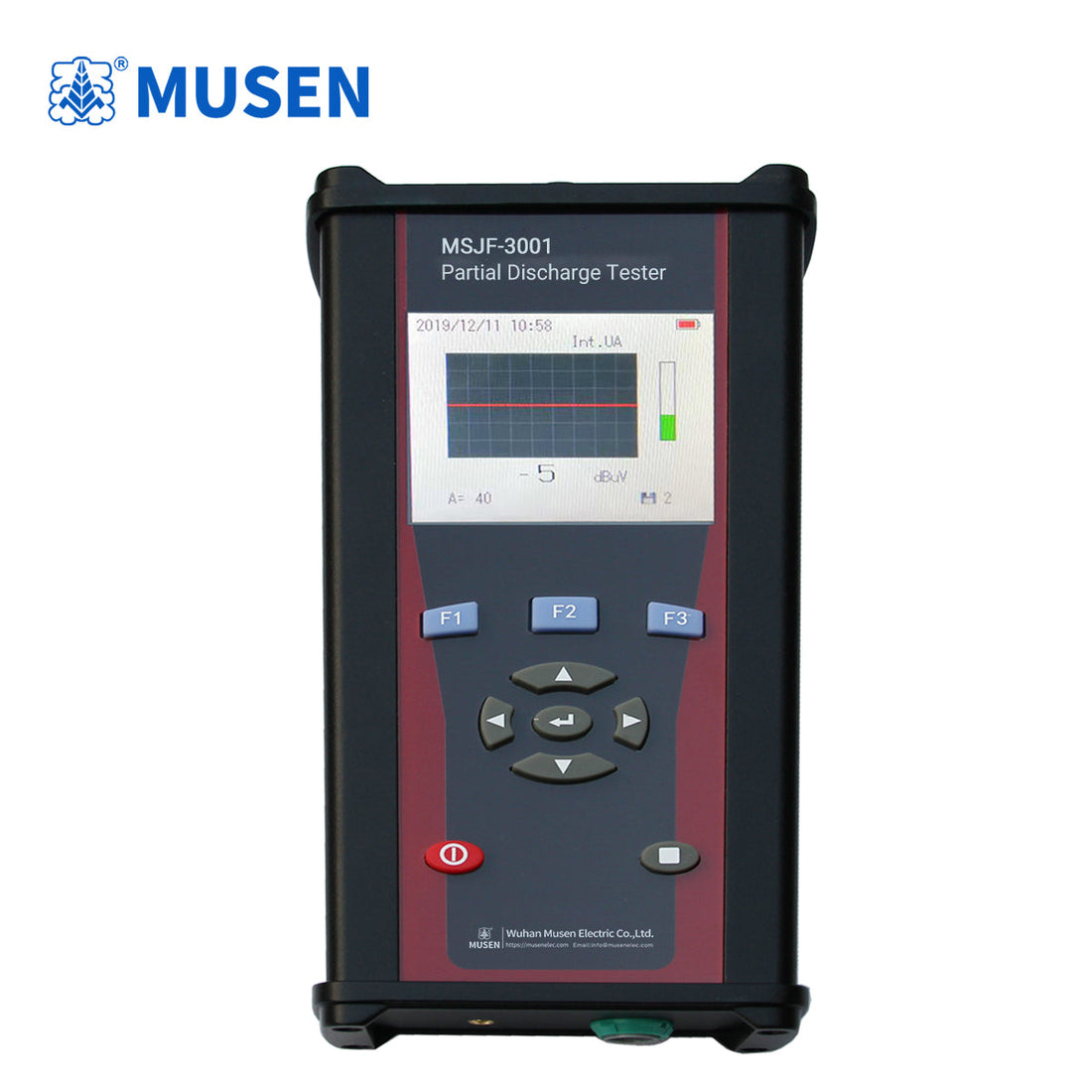

Partial discharge (PD) serves as the "early warning signal" for insulation degradation in high-voltage environments. Whether dealing with aging switchgear or newly installed transformers, PD activity indicates localized electrical stress that eventually bypasses insulation. Using a professional Partial Discharge Testerallows engineers to quantify this risk without de-energizing the system, maintaining the 99.9% uptime required by modern industrial standards.
2. Advanced Diagnostic Methods: TEV, UA, and UHF
Reliable diagnostics require a multi-modal approach to filter out ambient noise and pinpoint exact defect locations. Our systems utilize three primary detection principles:
● Transient Earth Voltage (TEV): Measures electromagnetic pulses on metal enclosures, ideal for internal discharge in switchgear.
● Ultrasonic Method (UA): Captures acoustic emissions from surface tracking, corona, or arcing in open-air components.
● Ultra-High Frequency (UHF): Provides precision monitoring for GIS and oil-filled transformers by detecting radio frequency interference within the 300MHz to 1.5GHz range.
3. Application Scope in Global Power Engineering
Overseas power projects often operate in diverse environmental conditions, from humid tropical substations to arid desert grids. The Partial Discharge Testeris engineered to deliver repeatable data across various assets:
High-Voltage Switchgear & RMU: Detecting internal arc-over and spacer contamination.
Power Transformers: Monitoring bushing health and winding insulation integrity.
Gas Insulated Switchgear (GIS): Identifying free-conducting particles or protrusion defects.
Cabling Systems: Inspecting cable terminations and joints for moisture or installation errors.
4. Key Features of the Musen Electric PD Diagnostic Suite
Our instruments are designed for the rigors of field engineering, emphasizing speed, accuracy, and ease of use:
Online Measurement: Perform Partial Discharge Tester evaluations on live equipment, eliminating the need for costly shutdowns. Real-time data visualization allows for immediate on-site decision-making.
Anti-Interference Technology: Integrated digital filtering ensures that high-frequency noise from nearby radio towers or power electronics does not trigger false positives.
High-Sensitivity Sensors: With a signal gain 6 dB higher than the industry average, our sensors detect early-stage PD that other devices might miss.
5. Technical Specifications and Product Configuration
Scope of Application: Non-invasive detection and localization of PD defects in HV electrical infrastructure.
Sensor Configuration: ① Standard: Ultrasonic (UA), Transient Earth Voltage (TEV) ② Optional: Specialized Transformer Sensor Network; UHF Sensor for GIS ③ Optional: Custom High-Voltage Cable Sensors.
Operational Data: ● Battery: High-efficiency Lithium-polymer (8-hour runtime). ● Interface: High-resolution LCD with waveform and trend analysis. ● Storage: Integrated data logging for post-inspection reporting.
6. Conclusion: The Future of Asset Life Extension
Transitioning from reactive to predictive maintenance is the hallmark of a world-class utility. By integrating advanced Partial Discharge Tester technology into your standard operating procedures, you protect both your capital investment and your personnel. Wuhan Musen Electric remains committed to providing the global power sector with the most robust and accurate diagnostic tools available today.
7. FAQ: Expert Technical Guidance
Q1: How does ambient noise affect the accuracy of the PD results?
Our devices use advanced noise-cancellation algorithms and specialized frequency gating to distinguish between external interference and actual internal discharge events.
Q2: Can this device locate the specific point of failure?
Yes. By utilizing the time-of-flight difference between acoustic and electromagnetic signals, the tester can assist in triangulating the exact location of the defect.
Q3: Is the data compatible with external asset management software?
The stored inspection data can be exported to standard formats, allowing for integration into your existing SCADA or maintenance databases for long-term trend analysis.
Q4: What is the benefit of using UHF sensors in GIS applications?
UHF sensors are immune to the low-frequency noise common in substations, allowing for high-sensitivity detection inside the shielded environment of gas-insulated equipment.
