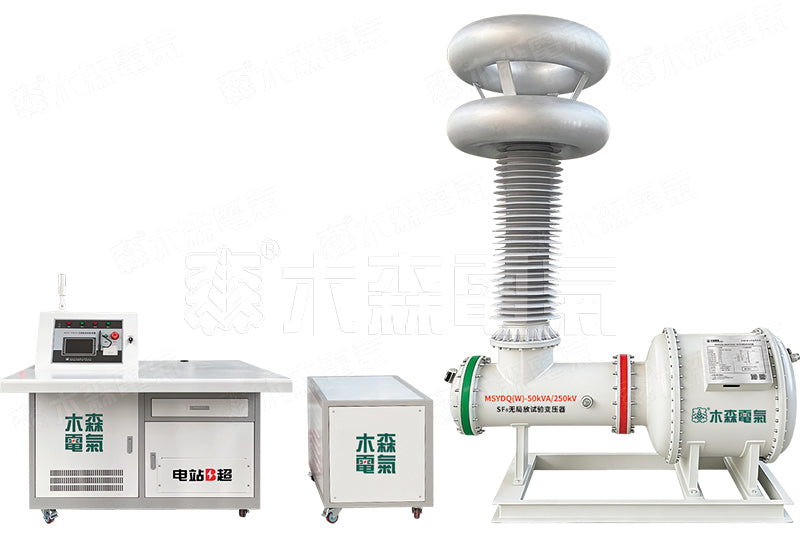

Is the High Voltage PD Free Test System the Ultimate Solution for Reliable Insulation Diagnostics? Partial Discharge Free Test System, PD Free Test Transformer, SF6 Insulated PD Free Transformer, Insulation Testing Equipment, Musen Electric
1. Why is Partial Discharge Testing Critical for High Voltage Infrastructure?
In global power engineering, the reliability of insulation determines the lifespan of billion-dollar assets. Manufacturers of transformers, gas-insulated switchgear (GIS), and high-voltage cables face the constant challenge of detecting "silent killers"—microscopic voids and impurities. The Partial Discharge Free Test System provides the controlled environment necessary to identify these flaws. By maintaining a background noise level far below the sensitivity threshold of the test object, engineers can ensure that every measured pico-coulomb (pC) originates from the equipment under test, not the testing apparatus itself.
2. How Does SF6 Integration Enhance Testing Accuracy?
Modern power utilities are moving away from traditional oil-filled units toward the SF6 Insulated PD Free Transformer. The shift is driven by the superior dielectric strength and thermal stability of Sulfur Hexafluoride gas. In an integrated architecture, the current-limiting resistor, coupling capacitor, and voltage divider are housed within a single, gas-tight metal cylinder. This design eliminates the corona discharge typically found at the connection points of modular systems. While conventional setups often struggle to stay below 10pC, the integrated Partial Discharge Free Test System from Wuhan Musen Electric Co., Ltd. consistently achieves a total PD level of ≤5pC.
3. What Are the Operational Efficiency Gains of Gas-Insulated Systems?
For electrical engineering firms, maintenance downtime is a significant cost factor. Transitioning to a Partial Discharge Free Test System simplifies site management through several key technical advantages:
✔ Intrinsic Safety: SF6 is non-flammable and provides rapid arc-quenching, essential for indoor lab safety.
✔ Weight Reduction: Integrated structures are approximately 30-50% lighter than equivalent oil-immersed counterparts.
✔ Maintenance-Free Operation: Eliminates the need for oil chromatography, moisture analysis, and complex filtration. Operators only need to monitor gas pressure and density.
✔ Environmental Protection: The fully enclosed metal housing prevents performance degradation caused by ambient humidity, dust, or salt spray.
4. Technical Data and Product Specifications
Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) provides high-performance testing solutions engineered for rigorous industrial environments.
Our YDQW series represents the pinnacle of gas-insulated testing technology:
Model Reference
Rated Capacity
Rated Voltage
Configuration
YDQW 30kVA / 100kV
30 kVA
100 kV
Integrated SF6 Type
YDQW 50kVA / 250kV
50 kVA
250 kV
Integrated SF6 Type
YDQW 250kVA / 550kV
250 kVA
550 kV
Integrated SF6 Type
5. Frequently Asked Questions (FAQ)
Q: What is the main difference between oil-immersed and integrated SF6 systems?
A: Oil systems require frequent chemical testing and are prone to leakage and fire risks. SF6 systems are "clean," maintenance-free (gas monitoring only), and offer a much lower background noise level due to their integrated shielding.
Q: Can the system be used for field testing on-site?
A: Yes. Due to the lightweight and compact nature of the integrated design, these units are far easier to transport and install in confined substation environments compared to traditional modular components.
Q: Does the system meet international IEC standards?
A: Absolutely. Our systems are designed to comply with IEC 60270, ensuring that the partial discharge measurements are globally recognized and technically rigorous.
Q: What is the expected background noise level of the YDQW series?
A: The total system partial discharge is kept under 5pC, allowing for extremely precise diagnostics of high-sensitivity equipment like instrument transformers and insulation materials.
