Is the GIS PD-Free Test System Essential for Substation Reliability?
GIS PD-Free Test System, GIS Resonant Test System, Substation Dielectric Test, High Voltage GIS Testing, Musen Electric HV Test
1. Why is Partial Discharge Testing Critical for GIS Grid Integrity?
In the high-stakes environment of global power transmission, the reliability of Gas-Insulated Switchgear (GIS) is non-negotiable. For overseas power engineering firms and utility operators, undetected insulation defects are the leading cause of unplanned outages. A specialized GIS PD-Free Test System provides the necessary diagnostic depth to identify microscopic flaws before they escalate into catastrophic failures. By maintaining a background noise level as low as 1-3pC, these systems ensure that the measurement data reflects the true condition of the high-voltage assets, rather than interference from the test environment itself.
2. How Does the Resonant Principle Optimize On-Site HV Testing?
Testing large-capacity GIS or GIL (Gas-Insulated Lines) requires immense reactive power. Traditional transformers are often too heavy for remote substation sites. Wuhan Musen Electric Co., Ltd.
(www.musenelectric.com) utilizes the resonant test system)technology to overcome these logistical hurdles. By matching the system’s inductance with the load capacitance, the power demand from the grid is reduced by up to 90%. This structural efficiency allows for a more portable, lightweight configuration that does not sacrifice the high-voltage output required for 500kV or 1000kV installations.
3. What Are the Technical Benchmarks for Dielectric Withstand Verification?
Authoritative testing requires adherence to strict international standards. A professional GIS PD-Free Test System must provide a pure sine wave and stable frequency to accurately simulate operational stresses. For engineers managing long-distance GIL projects, the system's ability to maintain high voltage stability over extended periods is the ultimate mark of quality. This data-driven approach ensures that every component—from the high-voltage bushings to the internal insulators—is verified under conditions that meet or exceed IEC and IEEE requirements.

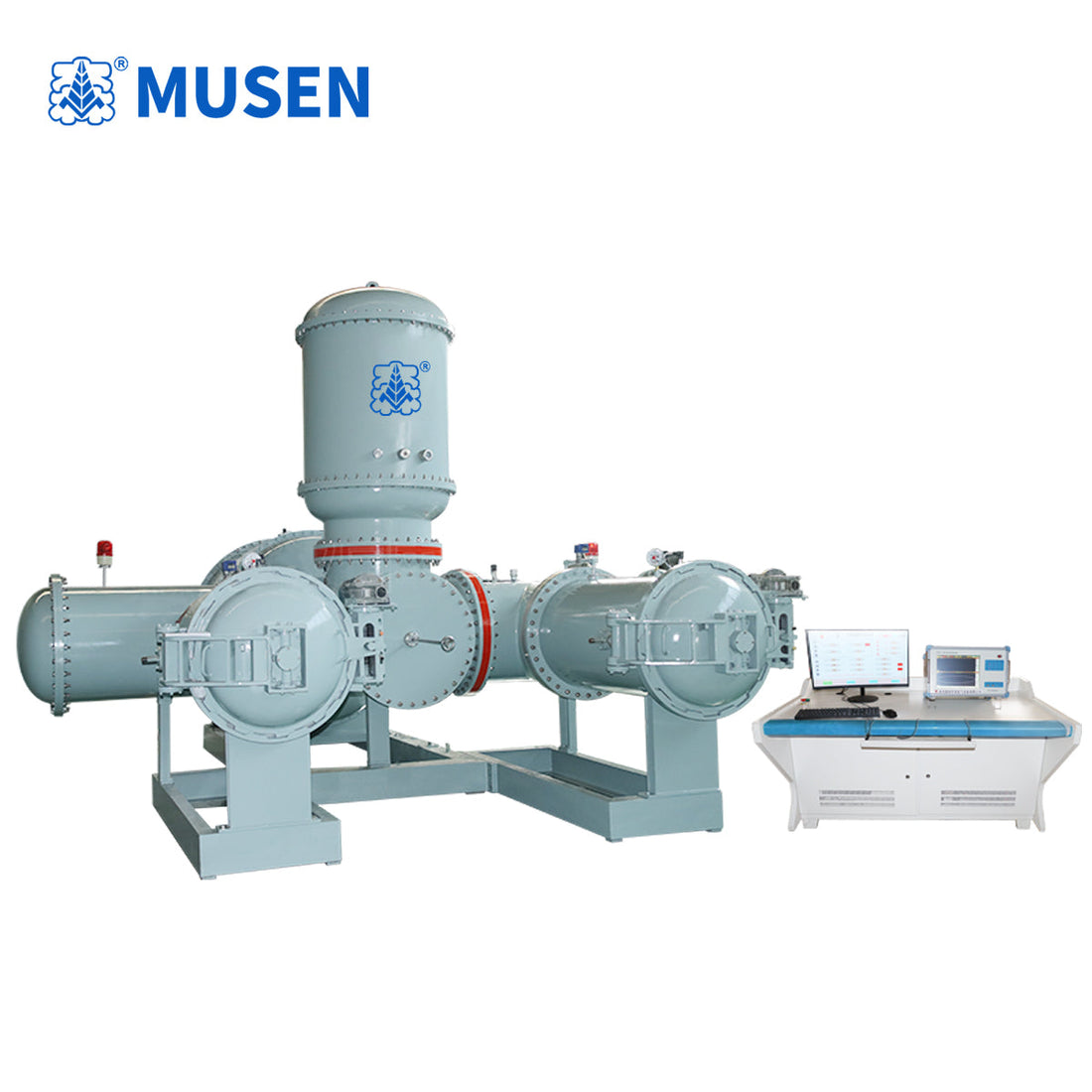

4. Key Performance Specs: The GIS PD-Free Test System Wuhan Musen Electric provides highly engineered solutions tailored for the rigorous demands of international power projects. Our systems are designed for durability during long-distance shipping and rapid deployment in the field.
● Shielded Integrity: High voltage components are fully enclosed to ensure a PD-free environment (1-3pC).
● Modular Design: Lightweight components and a compact footprint for restricted substation spaces.
● Versatility: Integrated high-voltage isolation switches allow for multiple testing modes in one setup.
● Efficiency: Direct coupling to the specimen reduces setup time and complexity.
● Rated Capacity: 50kVA to 2000kVA customized solutions.
● Voltage Range: 100kV, 200kV, 300kV, 500kV, up to 1200kV ultra-high voltage outputs.
5. Frequently Asked Questions for Power Engineers
Q: Why is the 1-3pC PD level significant for substation commissioning? A: Standard industry background noise can mask real defects. By keeping system PD under 3pC, engineers can detect the earliest signs of insulation aging or particle contamination that would otherwise be invisible.
Q: Is the system compatible with different GIS brands? A: Yes, the GIS PD-Free Test System features universal coupling interfaces designed to connect directly with various international GIS/GIL manufacturer bushings.
Q: How does the resonant frequency affect the test results? A: The system automatically finds the resonance point, typically between 20Hz and 300Hz, ensuring the most efficient power transfer and a stable, high-voltage waveform for the duration of the withstand test.
Q: Can this equipment be used for GIS voltage transformer (VT) testing? A: Absolutely. The system is designed to perform accuracy and insulation tests on GIS voltage transformers and other integrated components simultaneously.
