# Can You Achieve True Zero-PD Testing? Master Substation Safety with the Ultimate SF6-Insulated Expert Guide

High-voltage electrical engineering demands uncompromising testing precision to prevent catastrophic insulation failure in power grids. As global utilities upgrade infrastructure to support higher industrial loads, traditional testing methodologies often fail due to excessive ambient electromagnetic interference and cumbersome logistics. Engineered by Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), the **SF6-Insulated Partial Discharge-Free Transformer** provides the industry's most advanced solution, ensuring an ultra-quiet electrical environment that completely redefines precision diagnostics for international power grids.

### 1. How Does the System Meet Strict 110kV and 220kV Test Requirements?

High-voltage assets such as Gas-Insulated Switchgear (GIS), power transformers, and instrument transformers operate under extreme electrical stress. To guarantee long-term operational reliability, field engineers must perform rigorous AC withstand voltage testing alongside highly sensitive partial discharge diagnostics. The **SF6-Insulated Partial Discharge-Free Transformer** serves as a specialized, ultra-clean high-voltage power source explicitly engineered to meet these rigorous parameters.

The equipment delivers pristine, high-voltage AC output tailored for comprehensive dielectric validation across a wide field of applications:

* **Grid-Scale Infrastructure Validation:** Easily generates stable high-voltage potentials required to execute routine and type testing on 110kV and 220kV power networks in strict compliance with IEC and IEEE standards.
* **Gas-Insulated Switchgear (GIS) Analysis:** Enables flawless field testing and factory validation of tightly enclosed GIS units without introducing external PD interference.
* **Instrument Transformer Calibration:** Delivers the hyper-precise voltage control required to identify microscopic insulation flaws in current transformers (CTs) and potential transformers (PTs).

### 2. Can One-Touch Hydraulics Optimize Field Logistics and Deployment?

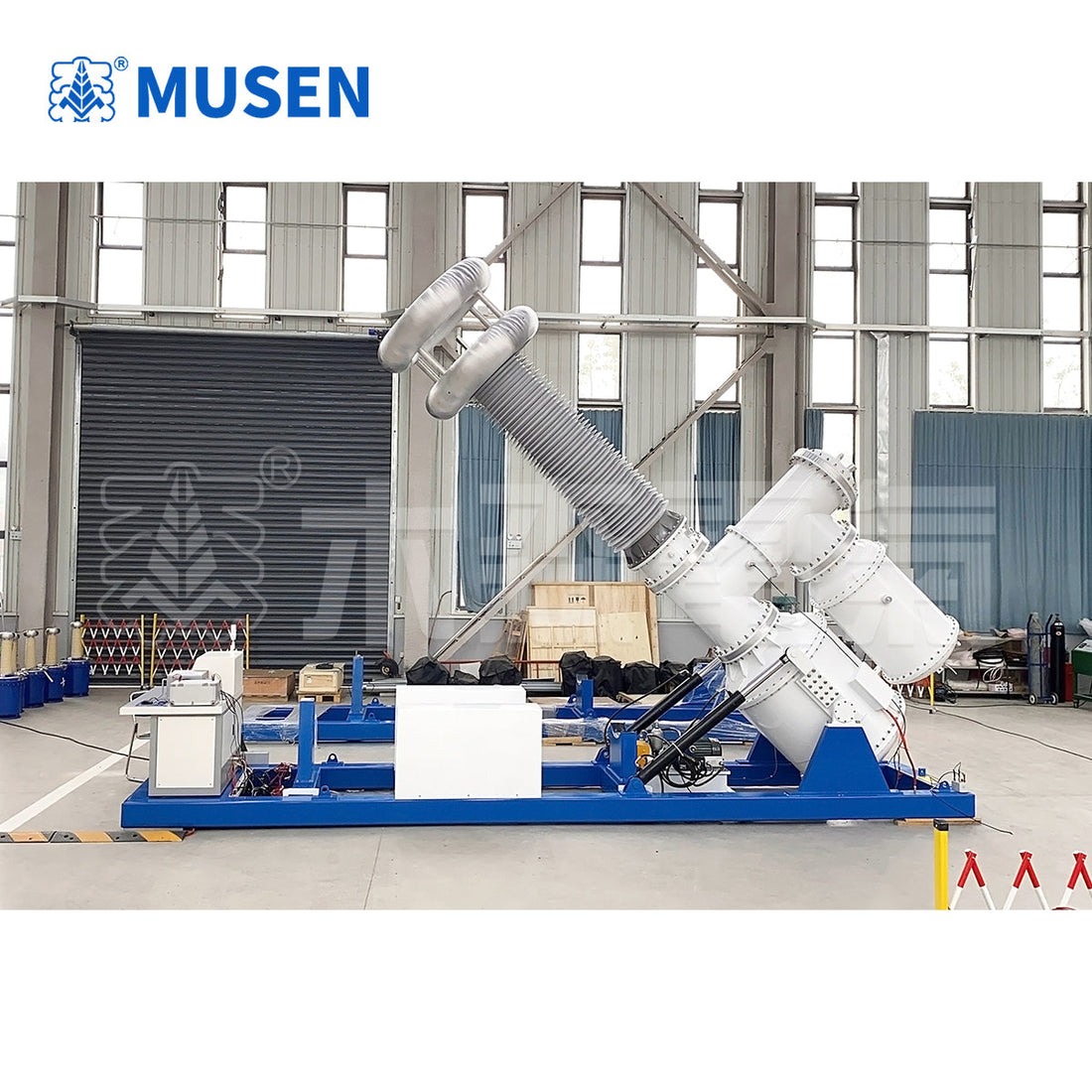

Traditional high-voltage testing transformers are notoriously heavy, challenging to transport, and difficult to position safely on-site. Field teams frequently face severe logistical bottlenecks when moving large-scale transformers from transport vehicles to their active testing positions. To eliminate these operational challenges, Wuhan Musen Electric Co., Ltd. integrates a heavy-duty, automated one-touch hydraulic lifting system into the chassis.

This mechanical breakthrough optimizes field logistics through a highly secure dual-state configuration:

* **Horizontal Layout for Transport:** During transit, the main transformer body is lowered hydraulically into a horizontal, low-profile position. This significantly lowers the center of gravity, protecting internal components from mechanical shock and eliminating overhead clearance risks.
* **Vertical Layout for Operation:** Upon arrival at the substation, a single button press on the control unit activates the hydraulic cylinders. The system smoothly and automatically uprights the main transformer into its vertical operating position, entirely eliminating the need for complex external crane rentals or high-risk manual rigging.

### 3. What Core Components Ensure a Harmonized System Architecture?

An elite-tier partial discharge test system requires flawless synchronization among its underlying electrical components. This advanced testing apparatus from Wuhan Musen Electric Co., Ltd. is configured as a fully harmonized assembly of high-precision instruments engineered to suppress electrical noise and deliver clean power:

* **Operator Control Console:** The centralized human-machine interface (HMI) that manages automated voltage regulation, displays real-time telemetry, tracks safety interlocks, and logs data.
* **Testing Transformer Core:** Utilizing advanced SF6 gas insulation to step up low-voltage input to the required 110kV/220kV experimental thresholds without generating internal PD.
* **High-Voltage Measuring Voltage Divider:** Provides highly precise voltage attenuation, scaling down massive test voltages to readable levels for the control console with pristine linearity.
* **Coupling Capacitor:** Acts as a low-impedance path for high-frequency PD pulses, capturing minute electrical discharges from the test object while blocking the power frequency voltage.
* **Current-Limiting Reactor:** Safeguards the transformer body against sudden surge currents or flashover conditions by introducing calculated series impedance during a test object breakdown.
* **Low-Voltage Compensation Reactor:** Optimizes input power requirements by compensating for the heavy capacitive loads typical of long cables and large GIS arrays.
* **Power Isolation Transformer:** Filters out high-frequency noise and harmonics originating from the primary grid mains supply, preventing pollution of the sensitive measuring circuit.

### 4. Why Does SF6 Insulation Outperform Legacy Oil-Immersed Systems?

Sulfur Hexafluoride (SF6) gas possesses extraordinary physical and chemical properties that make it the premier medium for critical electrical insulation. By replacing traditional oil or air dielectrics, SF6 introduces fundamental technical advantages that drastically enhance substation safety and diagnostic accuracy:

* **Superior Arc Quenching:** SF6 has an electronegative molecular profile, meaning it rapidly captures free electrons generated by electrical fields. This allows it to quench electrical arcs up to 10 times faster than air, ensuring total insulation stability during high-stress tests.
* **Intrinsic Fire Prevention:** Unlike mineral oil-insulated systems, SF6 is completely non-flammable and inert. This eliminates the catastrophic risk of high-voltage oil explosions or fires within factory bays and substations.
* **Extreme Lightweighting:** Gas insulation dramatically reduces the clearances required between energized parts and grounded enclosures. By housing the transformer, coupling capacitor, and voltage divider within a single gas-filled envelope, the total weight is drastically reduced.
* **Clean, Zero-Maintenance Operation:** Operating a completely oil-free system removes the risks of environmental oil spills, fluid aging, and degassing procedures. The unit requires zero routine internal maintenance; engineers simply monitor gas pressure and gas density via integrated gauges.
* **Total Environmental Sealing:** The internal components are permanently sealed inside a robust metal tank. This configuration guarantees that the internal dielectric strength remains entirely unaffected by external ambient humidity, dust accumulation, or atmospheric pressure variations.

### 5. How Does Integration Achieve a Quantitative Leap in Background Noise Reduction?

The ultimate metric of performance for any high-voltage insulation evaluation system is its background partial discharge level. External connections, stray capacitance, and long open-air high-voltage leads act as antennas for environmental noise, easily skewing test results.

When utilizing discrete components linked via external high-voltage busbars (connecting a separate current-limiting resistor, standalone coupling capacitor, and open-air voltage divider), the background partial discharge level frequently hovers close to 10pC. This high noise floor completely obscures tiny internal defects within the test specimen.

By enclosing the entire high-voltage path—incorporating the internal current-limiting resistor, integrated coupling capacitor, and shielding voltage divider within a single SF6 gas envelope—the background noise floor drops dramatically. The total background partial discharge of the **SF6-Insulated Partial Discharge-Free Transformer** is tightly controlled below 5pC, enabling engineers to identify insulation flaws with absolute clarity.

### 6. What Intelligent Protection Features Guarantee Operator Safety?

Because high-voltage operations carry inherent breakdown risks, the equipment features a comprehensive automated safety array designed to protect both the operator and the test specimen. Real-time microsecond-level monitoring networks continuously track current and voltage trajectories during operation.

The system's advanced protection architecture includes:

* **Overcurrent Protection:** If a flashover or short-circuit occurs in the test object, the input breaker trips instantly to prevent damage to the system.
* **Overvoltage Protection Alarms:** Real-time peak and RMS voltage tracking ensure that user-defined thresholds are never breached, triggering immediate acoustic and visual alarms if limits are exceeded.
* **Automatic Zero-Return Interlocks:** To eliminate the risk of starting a test at high voltage, the control system locks out voltage initialization until the regulator's physical contact is verified to be at absolute zero potential.

### 7. Frequently Asked Questions Regarding Zero-PD High-Voltage Testing

* **Q1: Why is a background partial discharge level of <5pC critical for high-voltage testing?**
A1: Insulation defects in 110kV and 220kV equipment often manifest as tiny partial discharges of less than 10pC. If your testing transformer has an inherent background noise floor of 10pC, these critical early warning signs are masked by noise. A background floor under 5pC allows diagnostic instruments to isolate and locate minor defects before they lead to full insulation breakdown.
* **Q2: What routine maintenance does an SF6-insulated test transformer require?**
A2: Unlike traditional oil-immersed test systems that require periodic oil sampling, dissolved gas analysis (DGA), and moisture filtration, SF6 systems are virtually maintenance-free. Operators only need to routinely check the integrated gas pressure gauge and density monitor provided by Wuhan Musen Electric Co., Ltd. to confirm the SF6 gas remains within safe operational limits.
* **Q3: How does the one-touch hydraulic lifting system improve site safety?**
A3: High-voltage testing units are top-heavy and physically tall when upright. Moving them manually or with external cranes introduces severe tipping hazards and requires specialized rigging teams. The integrated hydraulic system automates this transition. It keeps the center of gravity low and stable during transport, and uprights the unit at the touch of a button, removing manual rigging risks from the field workflow.
* **Q4: Can this system be used for highly capacitive loads like long high-voltage power cables?**
A4: Yes. The system architecture includes a low-voltage compensation reactor. Large capacitive assets, such as extensive GIS runs or long insulated cables, draw significant reactive power during AC withstand tests. The compensation reactor cancels out this capacitive demand, lowering the required kVA capacity from the primary supply source and enabling highly efficient testing.
