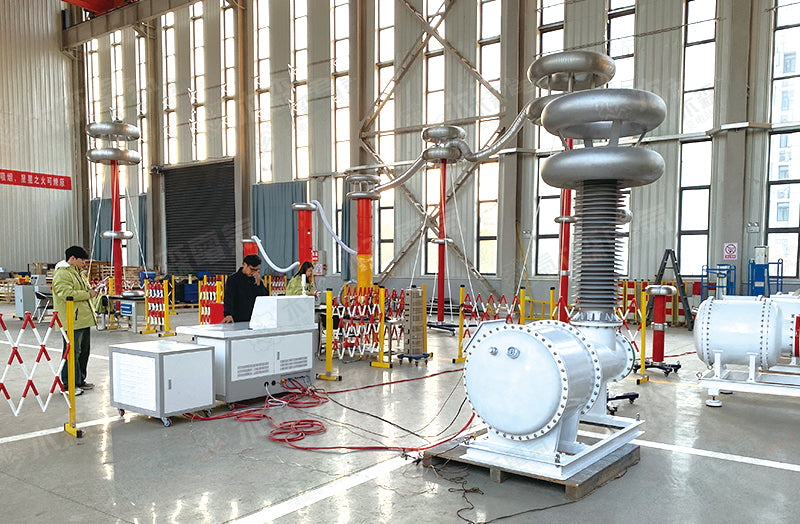

The PD-Free Test Transformer (MSYDQ series) by Musen Electric is an all-in-one high-voltage dielectric test system integrating the HV transformer, voltage divider, coupling capacitor, and current-limiting resistor into a single insulated vessel with a guaranteed partial discharge level of ≤3pC at rated voltage. Designed for power frequency withstand voltage testing and sensitive partial discharge diagnostic procedures according to IEC 60270, the MSYDQ series covers capacity ratings from 50kVA to 1200kVA and voltage outputs ranging from 50kV up to 1000kV.
How Does the Integrated All-in-One Architecture Lower HV Field Distortions?
Traditional high-voltage partial discharge testing setups require separate, discrete components including a standalone testing transformer, high-voltage coupling capacitors, capacitive or resistive voltage dividers, and external damping resistors. Interconnecting these discrete units requires extensive spatial clearance, corona rings, and external shielded cabling that introduces stray capacitance and local electromagnetic interference (EMI). The MSYDQ series PD-Free Power Frequency Withstand Voltage Test Set houses the main primary and secondary windings, capacitive divider secondary arms, coupling dielectric layers, and protective impedance units within a unified SF6 gas or epoxy insulator structure.
By enclosing all high-potential components inside a single coaxial or shielded housing, electric field gradient (mathbf{E} = -nabla V$) distribution is strictly controlled. Corona discharge at sharp points is suppressed, ensuring that background noise remains below 3pC across the complete operating spectrum.
Technical Specifications and Model Classifications
Below are the standardized technical parameters for the MSYDQ series PD-Free Test Transformer family manufactured by Musen Electric (www.musenelectric.com):
| Model Series | Rated Capacity Range | Rated Output Voltage Options | Partial Discharge Level | No-Load Loss | Load Loss |
|---|---|---|---|---|---|
| MSYDQ-50 | 50 kVA – 100 kVA | 50 kV / 100 kV / 150 kV | ≤ 3 pC (Overall System) | < 4.0% | < 9.0% |
| MSYDQ-200 | 150 kVA – 300 kVA | 200 kV / 250 kV / 300 kV | ≤ 3 pC (Overall System) | < 4.0% | < 9.0% |
| MSYDQ-600 | 400 kVA – 800 kVA | 500 kV / 600 kV | ≤ 3 pC (Overall System) | < 3.5% | < 8.5% |
| MSYDQ-1200 | 1000 kVA – 1200 kVA | 800 kV / 1000 kV | ≤ 3 pC (Overall System) | < 3.0% | < 8.0% |
Which International Standards Control PD Measurement Rigor?
High-voltage insulation integrity testing must adhere strictly to established international testing frameworks. The MSYDQ series complies with:
- IEC 60270: High-voltage test techniques – Partial discharge measurements (calibrated pulse injection, Apparent Charge $q$ in pC).
- IEC 60060-1: High-voltage test techniques – Part 1: General definitions and test requirements.
- IEC 60076-3: Power transformers – Part 3: Insulation levels, dielectric tests and external clearances in air.
- IEEE Std 4: Standard Techniques for High-Voltage Testing.
Frequently Asked Questions
Q: What is the main operational advantage of an integrated coupling capacitor in the MSYDQ series?
A: Integrating the coupling capacitor directly into the high-voltage vessel eliminates external high-voltage leads, reducing stray inductance and high-frequency noise interference, which enables precise apparent charge measurements down to ＜3pC under field and laboratory conditions.
Q: Can the MSYDQ series operate at variable frequencies beyond standard power frequency?
A: Yes, when coupled with a variable frequency power source, the MSYDQ series supports resonant and variable frequency withstand testing across 30 Hz to 300 Hz for gas-insulated switchgear (GIS) and cable insulation diagnostics.
