How to Streamline On-Site Substation Audits Using a Portable Ct Pt Transformer Comprehensive Analyzer
How to Streamline On-Site Substation Audits Using a Portable Ct Pt Transformer Comprehensive Analyzer

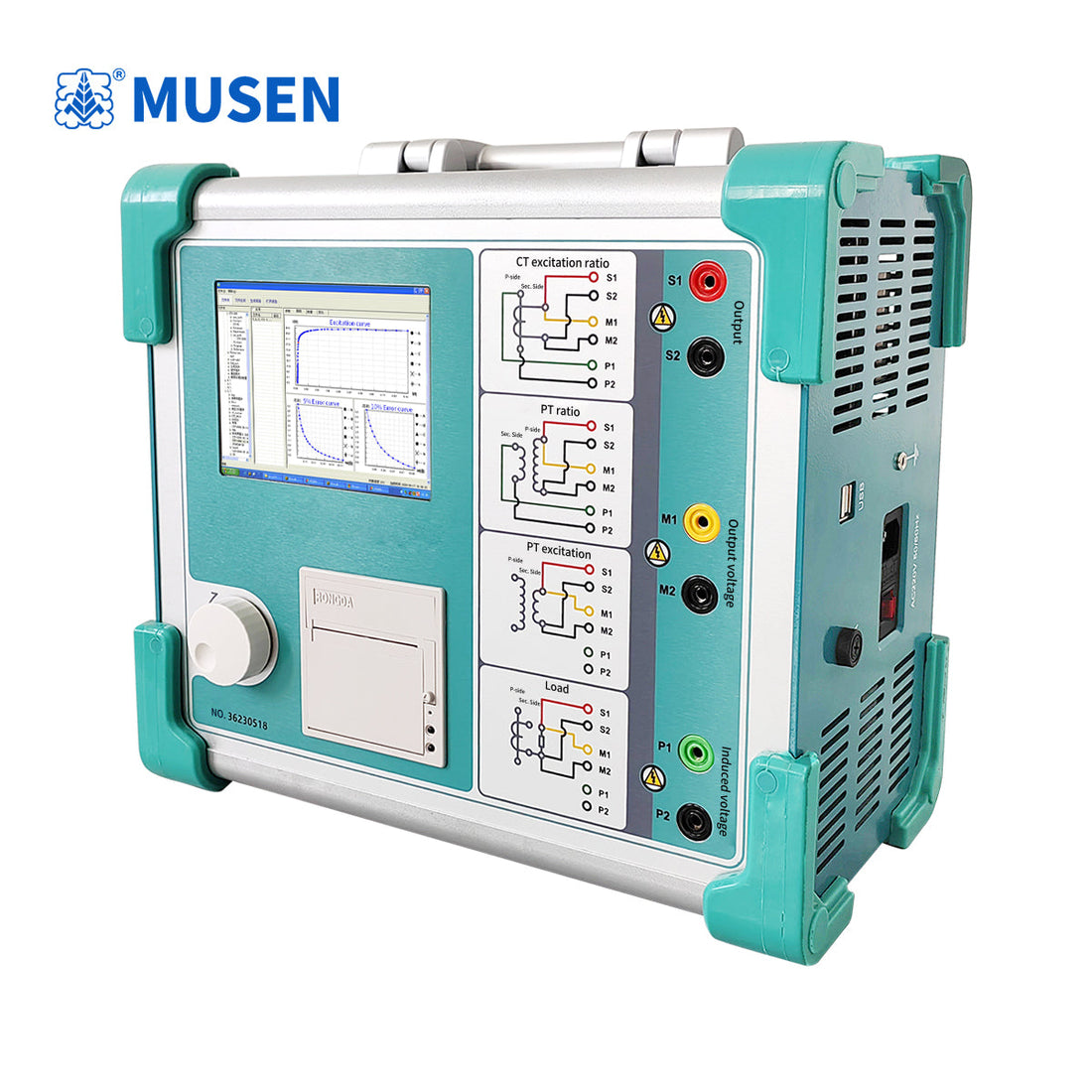

A Portable Ct Pt Transformer Comprehensive Analyzer optimizes on-site commissioning by consolidating ratio, polarity, DC resistance, and burden testing into a single lightweight instrument with unified wiring. Designed for field technicians, this Comprehensive Ct Pt Tester removes the need to change test leads between continuity, excitation, and ratio evaluations.
Optimizing Data Reporting and Storage in High-Voltage Diagnostics
Field audits require meticulous record-keeping. Substation engineers must archive historical diagnostic trends to predict insulation aging. High-end Transformer Testing Equipment supports internal memory storage for up to 2,000 test files, preventing data loss during power failures. Test logs are easily exported via USB flash drives to computer software for professional Word report generation.
Operational Efficiency Matrix
| Feature Attribute | Conventional Method | Advanced Integrated Analyzer |
|---|---|---|
| Wiring Configuration | Multiple rewiring changes per test | Single uniform wiring setup for all tests |
| Report Generation | Manual data entry and charting | Automated USB transfer to PC Word generator |
| Portability | Heavy multi-unit test benches | Compact, portable field unit |
Addressing Complex PT and CT Classes in Substation Environments
Whether evaluating metering classes, protective classes, or TP-class transient-fault current transformers, the equipment delivers precise phase measurements with a resolution of 0.5min and accuracy within 5min. AC burden measurements up to 1000 VA (2% ± 0.2VA) ensure that connected secondary relays operate within manufacturer tolerances.
Frequently Asked Questions
- Q: How are test results exported to a computer?
- A: Test results stored in the internal non-volatile memory can be exported directly via a standard USB flash drive into PC software for detailed analysis and report compilation.
- Q: Does the unit support potential transformer (PT) testing?
- A: Yes, it is fully equipped to test electromagnetic PT units, measuring ratio (1–40,000 range), polarity, and secondary resistance.
