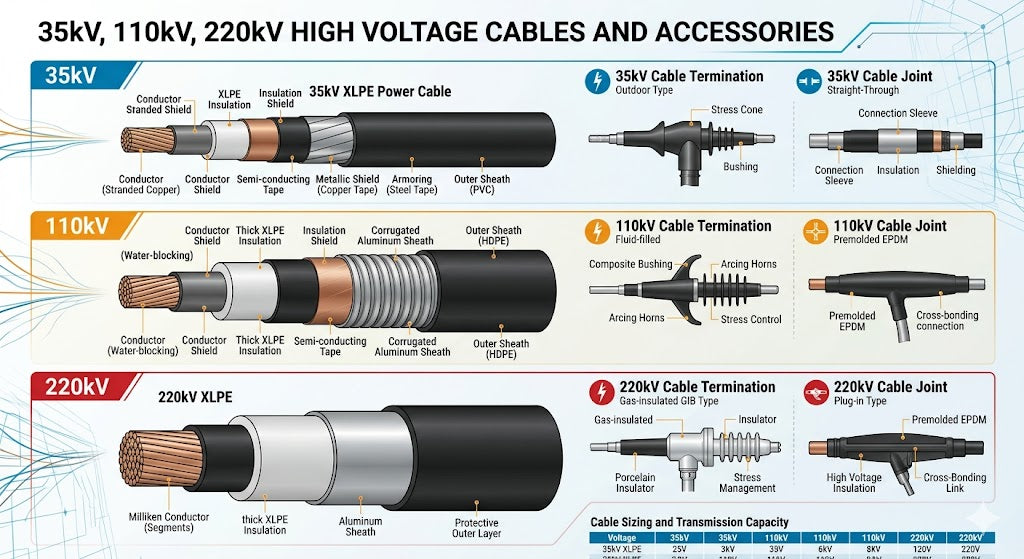

Ensuring the operational integrity of high-voltage power networks requires a rigorous approach to diagnostic testing. For overseas power engineering firms and utility operators, the quality of 35kV, 110kV, and 220kV cable systems is non-negotiable. Whether it is a new installation or a routine preventive check, utilizing standardized Cable Testing Agency Equipment is the only way to mitigate the risk of catastrophic dielectric failure. Wuhan Musen Electrical Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) provides specialized, high-accuracy instrumentation designed for international field standards and material acceptance protocols.
1. What are the Mandatory Requirements for 220kV Cable Handover Testing?
Commissioning a 220kV transmission line demands equipment that can handle massive capacitive loads while delivering a pure sinusoidal waveform. Standard transformers are often too heavy for remote site access. The technical consensus among global engineering agencies favors the Series Resonant method.
- Main Insulation Solution: The MSXB-F Series AC Series Resonant Test System. This modular system allows for flexible configuration, significantly reducing the required input power by matching the natural resonant frequency of the cable-reactor circuit.
- External Sheath Validation: The MSZGF 120kV/2mA DC High Voltage Generator. It is critical for detecting punctures in the outer HDPE/PVC protective layer, preventing water ingress and electrochemical corrosion.
2. How to Efficiently Inspect 35kV XLPE Distribution Networks?
For medium-voltage distribution systems, speed and portability are the primary operational requirements. Traditional 50Hz testing can be cumbersome for urban or rural 35kV circuits. Professional Cable Testing Agency Equipment 电力电缆检测单位设备 users often pivot to Very Low Frequency (VLF) technology for rapid field diagnostics.
Ultra-Low Frequency (0.1Hz) Generator: By reducing the test frequency to 0.1Hz, the capacitive reactance is increased by a factor of 500. This enables a compact, lightweight unit to test long cable runs that would otherwise require several tons of inductive equipment.
3. Why are Dielectric Loss and Insulation Resistance the "Vitals" of Cable Health?
Before applying high-voltage stress, diagnostic agencies must verify the baseline physical condition of the XLPE material. This is essential during material reception to ensure that storage conditions have not compromised the cable's chemical properties.
| Diagnostic Target | Instrument Model | Key Metric |
|---|---|---|
| Moisture / Degradation | MS-101G Tester | Tan Delta (Loss Factor) |
| Insulation Purity | MS-3126 Tester | Polarization Index (PI) |
4. Can Cable Conductor and Joint Quality be Audited on Site?
The power-carrying capacity of a cable is only as good as its weakest joint. Improperly installed terminations or sub-standard conductor materials lead to thermal runaway. High-quality Cable Testing Agency Equipment must include tools for micro-ohm verification.
- MS-510R DC Resistance Tester: Used to verify the linear resistance of the conductor core during material acceptance.
- MSHL-100A Loop Resistance Tester: Employs a 100A DC current to check the contact integrity of cable joints and terminations, ensuring they won't overheat under load.
5. Is it Possible to Detect Faults Without Power Outages?
Modern grid management trends toward "Condition-Based Maintenance." Online Partial Discharge (PD) monitoring is the gold standard for live diagnostics. The MSJF-3001B Handheld Partial Discharge Detector allows agencies to inspect energized 110kV and 220kV accessories. By using Ultrasonic and TEV sensors, it identifies internal arcing and insulation tracking without any service interruption, providing a safe and data-driven approach to grid reliability.
Frequently Asked Questions (FAQ)
Q: What equipment is needed for the 110kV cable commissioning test?
A: A complete set usually includes a Series Resonant system (MSXB-F), a DC High Voltage Generator for the sheath (MSZGF), and an Insulation Resistance Tester (MS-3126) for pre-test safety verification.
Q: Why is Polarization Index (PI) more important than simple resistance?
A: Simple resistance is a snapshot, whereas PI measures how the insulation charges over 10 minutes. A low PI suggests moisture or contaminants, even if the absolute resistance seems high.
Q: Can I test 220kV cables with a VLF generator?
A: VLF is typically recommended for 35kV and below. For 220kV cables, international standards generally require the MSXB-F Series Resonant System to provide a frequency-tuned AC stress that better simulates real-world conditions.
Wuhan Musen Electrical Co., Ltd. (Wuhan Musen Electrics) | [www.musenelectric.com](https://www.musenelectric.com)
```
