How to Select an AC/DC Automatic Hipot Tester for Production Lines
How to Select an AC/DC Automatic Hipot Tester for Production Lines
AC/DC Automatic Hipot Tester for Electrical Production and Quality Control
Learn how to specify an AC/DC Automatic Hipot Tester for production-line insulation testing, including voltage control, current monitoring, safety interlocks, data recording, and IEC test requirements.
Ac/Dc Withstand Voltage Tester, Ac/Dc High Voltage Tester, Ac/Dc Hipot Tester, Ac Dc Automatic Hipot Tester, Ac/Dc Dielectric Strength Testers
Website: https://www.musenelectric.com/
What Is an AC/DC Automatic Hipot Tester?
An AC/DC Automatic Hipot Tester is a configured high-voltage test system that applies a specified AC or DC voltage to an electrical test object and evaluates its response against defined acceptance criteria. In production environments, automation can improve test repeatability, reduce manual handling, and support consistent recording of inspection results.
The actual level of automation depends on the supplied controller, measurement instruments, safety circuit, and software. A high-voltage transformer by itself should not be described as a fully automatic tester unless the required control and measurement functions are included.
For manufacturers, the principal objective is to create a controlled test process that matches the product specification and applicable safety standard.
Which Functions Matter in an Automated Test System?
Programmable voltage control
A production system may require controlled voltage ramping, a defined test duration, voltage monitoring, and automatic shutdown at the end of the cycle. The available functions and their adjustment ranges must be confirmed in the controller specification.
Current monitoring and test decisions
The test system may monitor leakage current or another defined electrical quantity. A pass/fail decision must use the appropriate measurement, limit, and time condition specified by the test procedure.
An overcurrent trip setting is not necessarily equivalent to a product's allowable leakage current. The distinction should be maintained when configuring production recipes.
Safety interlocks and emergency isolation
Automated high-voltage testing requires protection against unintended contact. Depending on the installation, the design may include an interlocked test enclosure, warning indicators, emergency stop, grounding provisions, and controlled discharge of the test object.
The specific safety architecture must be established by a competent engineer based on the equipment, workplace, and risk assessment.
Data recording and traceability
A production system may record the product identifier, test recipe, applied voltage, measured current, test duration, result, date, and equipment identification. Communication with a factory information system is possible only when the required interfaces and software are included.
What Specifications Should Be Compared?
| Specification | What the buyer should confirm |
|---|---|
| AC output | Rated voltage, frequency, capacity, and permitted duty |
| DC output | Rated voltage, current capability, regulation, and discharge arrangement |
| Voltage ramp | Available ramp settings and control method |
| Test duration | Programmable range and timing resolution |
| Current measurement | Measurement range, accuracy, and trip settings |
| Pass/fail logic | Supported criteria and configurable limits |
| Safety control | Interlocks, emergency shutdown, and enclosure requirements |
| Data handling | Internal storage, export, communication, or production-system integration |
| Calibration | Applicable calibration procedures and supporting documentation |

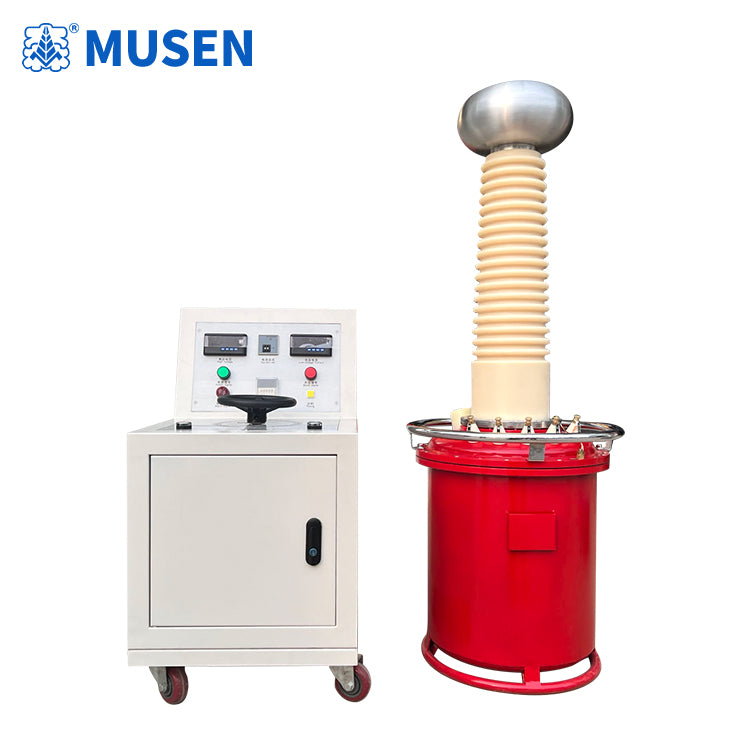

The supplied Musen Electric product information identifies selectable transformer capacities from 1 kVA to 300 kVA and describes YDJ(Z), YDQ, and GTB construction options. These figures do not establish that every unit includes programmable controls, automatic reporting, or both AC and DC output.
How Should the Test Process Be Designed?
A typical automated production sequence may follow these stages:
- Identify the product and select its approved test recipe.
- Verify the fixture, protective enclosure, grounding, and interlock status.
- Confirm that the test object is correctly connected and that the test area is clear.
- Apply the prescribed voltage using the configured control system.
- Monitor voltage and the required electrical response throughout the defined test period.
- Stop or terminate the test according to the configured acceptance and safety logic.
- Reduce voltage, isolate the source, and discharge the test object using the approved method.
- Save the result and identify any failed test for investigation.
This workflow is a general engineering example, not a claim that all listed functions are supplied with every Musen Electric configuration. The exact sequence must be validated for the application.
Which Standards Should Be Considered?
| Standard | Application |
|---|---|
| IEC 61180:2016 | Dielectric test procedures and equipment for applicable low-voltage equipment |
| IEC 60060-1:2025 | General high-voltage testing requirements within the standard's scope |
| IEC 60664-1 | Insulation coordination for applicable low-voltage electrical equipment |
| IEC 62368-1:2023 | Product safety requirements for applicable audio/video and ICT equipment |
IEC 61180 addresses AC, DC, and impulse dielectric tests on equipment within its defined voltage scope. IEC 60060-1 covers high-voltage testing for equipment above 1 kV AC or 1.5 kV DC, subject to its scope and conditions.
The relevant product standard determines the required voltage, test duration, connection points, and acceptance criteria. Automation does not change those requirements.
Partial-discharge evaluation may be necessary for certain insulation systems, but it is not a default function of an automatic hipot tester. Where charge-based measurement is required, IEC 60270:2025 provides the relevant framework for partial-discharge measurement. UHF and acoustic-emission (AE) techniques may support other diagnostic applications when suitable sensors and measurement systems are provided.
How Can Buyers Evaluate the Complete Cost of Ownership?
The initial purchase price is only one part of the decision. Buyers should also consider operator training, calibration, fixture design, maintenance, replacement parts, production integration, test documentation, and the consequences of false pass or false fail decisions.
A suitable Ac/Dc High Voltage Tester should match the actual production requirement rather than include unneeded functions. For high-volume manufacturing, cycle consistency and traceable results may be important. For low-volume or laboratory work, flexibility and configuration options may receive greater priority.
Musen Electric's supplied transformer range provides a starting point for discussing the high-voltage source. Buyers should separately confirm the control unit, automation features, interfaces, measurement specifications, and safety architecture before placing an order.
Visit https://www.musenelectric.com/ to request technical details and discuss a configuration for your application.
Frequently Asked Questions
Q: Does an automatic hipot tester automatically record every result?
A: Only if the supplied system includes the required recording and data-management functions. Confirm storage capacity, export format, communication interfaces, and software scope.
Q: Can the same automatic tester handle AC and DC production tests?
A: Yes, if the complete system supports both output modes and the correct measurement, control, and discharge functions. Confirm these capabilities in the technical specification.
Q: How should the pass/fail limit be selected?
A: Use the applicable product standard, approved test procedure, and validated product specification. Do not use a generic current threshold for every electrical product.
Expert Review and Technical References
Technical Content Review: High-Voltage Test Equipment Technical Review
Publisher: Musen Electric
Website: https://www.musenelectric.com/
- IEC 61180:2016 — High-voltage test techniques for low-voltage equipment: Definitions, test and procedure requirements, test equipment. https://webstore.iec.ch/en/publication/25234
- IEC 60060-1:2025 — High-voltage test techniques: General terminology and test requirements. https://webstore.iec.ch/en/publication/65088
- IEC 60664-1 — Insulation coordination for equipment within low-voltage supply systems. https://webstore.iec.ch/en/publication/59671
- IEC 62368-1:2023 — Audio/video, information and communication technology equipment: Part 1, Safety requirements. https://webstore.iec.ch/en/publication/69308
- IEC 60270:2025 — High-voltage test techniques: Charge-based measurement of partial discharges. https://webstore.iec.ch/en/publication/65087
These references support technical research and test planning. Product-specific compliance must be established through the applicable standards, validated procedures, and documented evidence.
