How to Optimize SF6 Gas Analysis Efficiency in High-Voltage Substations?

SF6 Gas Analyzer, MS-408 Multi-Function Tester, Sulfur Hexafluoride Purity, SF6 Decomposition Product Analysis, Power Equipment Maintenance, Musen Electric

1. Why is Integrated SF6 Gas Analysis Critical for Grid Reliability?

For global power utilities and electrical engineering firms, maintaining the dielectric integrity of Sulfur Hexafluoride (SF6) is a non-negotiable safety standard. Traditional maintenance involved multiple instruments to measure moisture, purity, and toxic decomposition products separately. This fragmented approach not only increased the risk of gas leakage but also consumed excessive time. Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) addresses these industry pain points by providing precision-engineered diagnostic solutions that meet international IEC and IEEE standards. Utilizing a high-performance SF6 Gas Analyzer ensures that gas-insulated switchgear (GIS) operates within safe thermal and electrical parameters.

2. How Does 3-in-1 Technology Reduce Operational Gas Waste?

The primary challenge in SF6 maintenance is minimizing "gas handling" to prevent environmental discharge and inventory loss. Modern engineering favors the SF6 Multi-Function Analyzer approach, which draws a single gas sample to perform a comprehensive diagnostic suite. By integrating a chilled mirror or high-polymer moisture sensor with NDIR purity technology, operators can reduce gas consumption by up to 66% per test cycle. This data-driven efficiency is vital for large-scale power plants where hundreds of breakers require annual auditing. Reducing the number of connection cycles also minimizes the entry of ambient moisture into the primary equipment.

3. What Technical Benchmarks Define a Professional-Grade Analyzer?

To ensure E-E-A-T (Experience, Expertise, Authoritativeness, and Trustworthiness) in electrical testing, the instrumentation must feature traceable accuracy. Professional units must utilize gold-standard sensors, such as the Vaisala core for dew point detection, ensuring a drift of less than ±1°C per year. Furthermore, the internal gas path must be entirely composed of high-polymer materials or oil-free stainless steel. This prevents "gas hanging," where water molecules adhere to internal surfaces, leading to false high-moisture readings. A professional SF6 Gas Analyzer should provide stable results within 3-5 minutes, even in high-humidity substation environments.

4. Why Choose the MS-408 Series for Substation Maintenance?

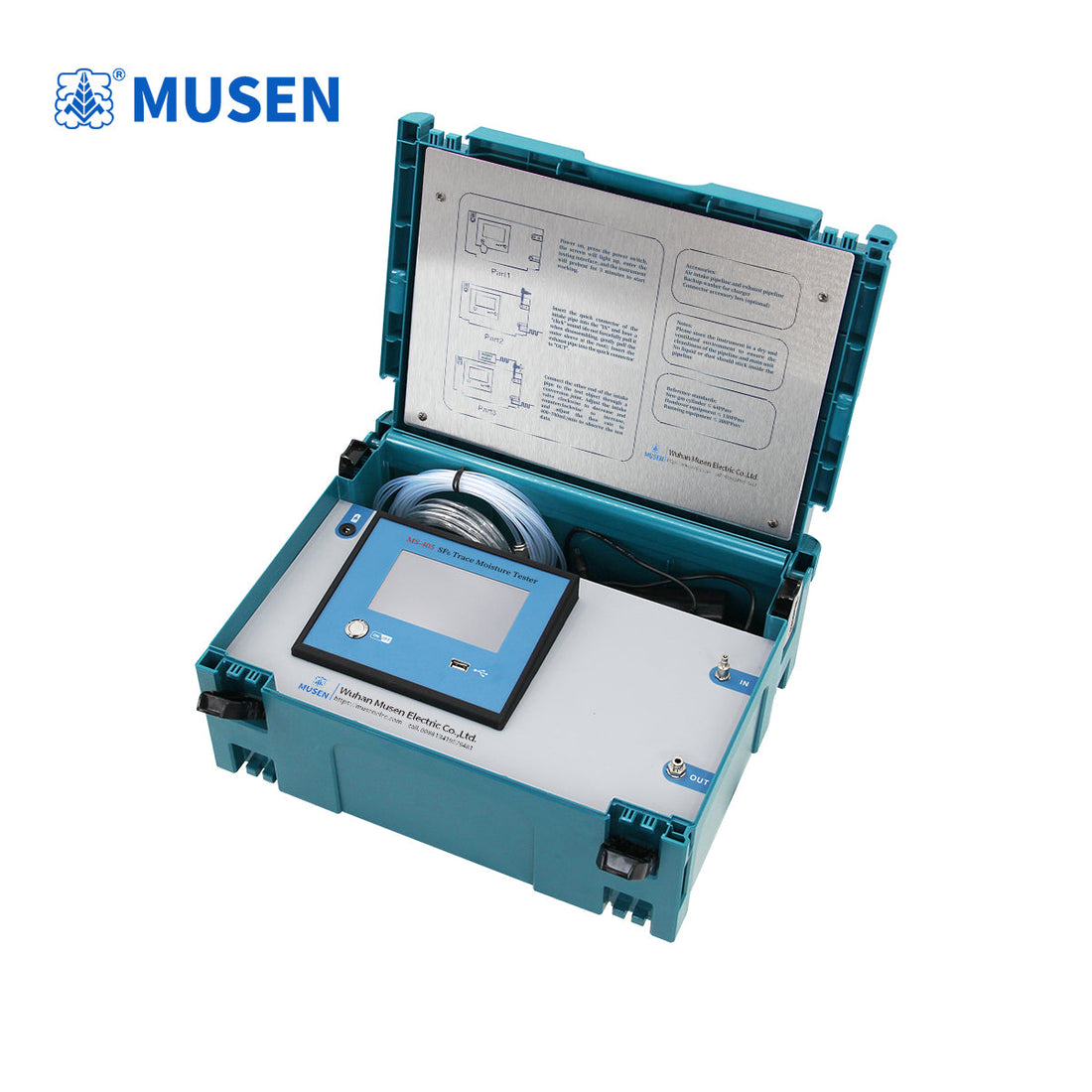

The MS-408 SF6 Gas Analyzer developed by Musen Electric is the preferred choice for overseas power projects requiring robust, field-ready equipment. It is specifically designed to handle the rigors of extreme temperature fluctuations and high electromagnetic interference.

• Integrated Efficiency: Combines moisture, purity, and SO2/H2S decomposition sensors into one interface.

• Precision Core: Features the Finnish Vaisala sensor and advanced NDIR technology for ±0.5%FS purity accuracy.

• Gas Conservation: A single measurement cycle saves 2/3 of the gas required by traditional methods.

• Protection Technology: Patented protective gas chambers and polymer-lined channels ensure zero cross-contamination.

• Reliable Hardware: Equipped with oil-free stainless steel regulation valves for ultimate flow precision.

5. Frequently Asked Questions Regarding SF6 Analysis

Q1: How does the MS-408 improve work efficiency for field crews?

By performing three tests simultaneously, the MS-408 reduces the per-breaker testing time from 20 minutes to approximately 5 minutes, allowing crews to cover more assets per shift while significantly reducing labor costs.

Q2: What is the benefit of NDIR technology in gas purity testing?

Non-Dispersive Infrared (NDIR) sensors are highly specific to SF6 molecules and do not suffer from the "poisoning" or degradation seen in electrochemical sensors, ensuring a longer service life and consistent accuracy.

Q3: Can this device be used in live-tank environments?

Yes, provided the proper safety clearances and pressure-regulated coupling interfaces are used. The MS-408 is designed for safe operation within energized substation perimeters.

Q4: How does the "no-wall-hanging" design affect data accuracy?

Traditional rubber hoses absorb moisture. Musen Electric’s high-polymer internal design ensures that the gas sample reaches the sensor in its original state, providing an authentic dew point reading without interference from the instrument's internal plumbing.
