How to Identify Transformer Connection Faults with a Winding Resistance Tester?
How to Identify Transformer Connection Faults with a Winding Resistance Tester?
Transformer DC Winding Resistance Tester, Transformer Ohmmeter, 3-Phase Transformer Resistance Analyzer, Musen Electric, Transformer Diagnostics
1. Why is Precise DC Resistance Measurement Essential for Grid Stability?
In the demanding environment of international power engineering, the reliability of a transformer hinges on its internal continuity. Transformer DC Winding Resistance Tester technology is the industry standard for verifying that the conductive path is free from high-resistance anomalies. At Wuhan Musen Electric Co., Ltd. (www.musenelectric.com), we emphasize that even a 1% deviation in resistance can indicate significant thermal stress points that lead to catastrophic insulation failure.
2. Detecting Manufacturing Flaws and Latent Operational Risks A high-performance Transformer Ohmmeter serves as a diagnostic "X-ray" for the internal assembly.
It is specifically designed to uncover issues that standard visual inspections miss: Material Integrity: Identifies substandard copper or aluminum alloys. Connection Security: Detects loose bolts or contact aging in tap changers. Structural Defects: Pinpoints broken strands in multi-filar windings and poor welding quality at the lead junctions.
3. Optimized Testing with 3-Phase Transformer Resistance Analyzer Technology Efficiency in the field is critical for reducing downtime.
Utilizing a 3-Phase Transformer Resistance Analyzer allows engineering teams to perform simultaneous measurements across all phases. This structural approach ensures data consistency and significantly accelerates the commissioning process for large-scale utility projects, providing a comprehensive data map of the transformer’s health.
4. Safety Protocols and System Protection Mechanisms Testing high-inductance loads requires sophisticated safety logic.
Technical Data & Performance Benchmarks
To ensure authoritative results, the equipment must meet rigorous accuracy standards. Musen Electric units are engineered to deliver precision across a vast range, from micro-ohms to kilo-ohms, ensuring that whether you are testing a small distribution unit or a massive GSU transformer, the data is verifiable and reproducible.Professional-grade testers incorporate multiple layers of protection: Active Discharge: Safely handles back-EMF during circuit interruption. Real-time Monitoring: Alerts for open circuits or thermal overloads. Data Accuracy: Integrated temperature conversion functions to normalize readings to 75°C, ensuring compliance with international IEEE and IEC standards.

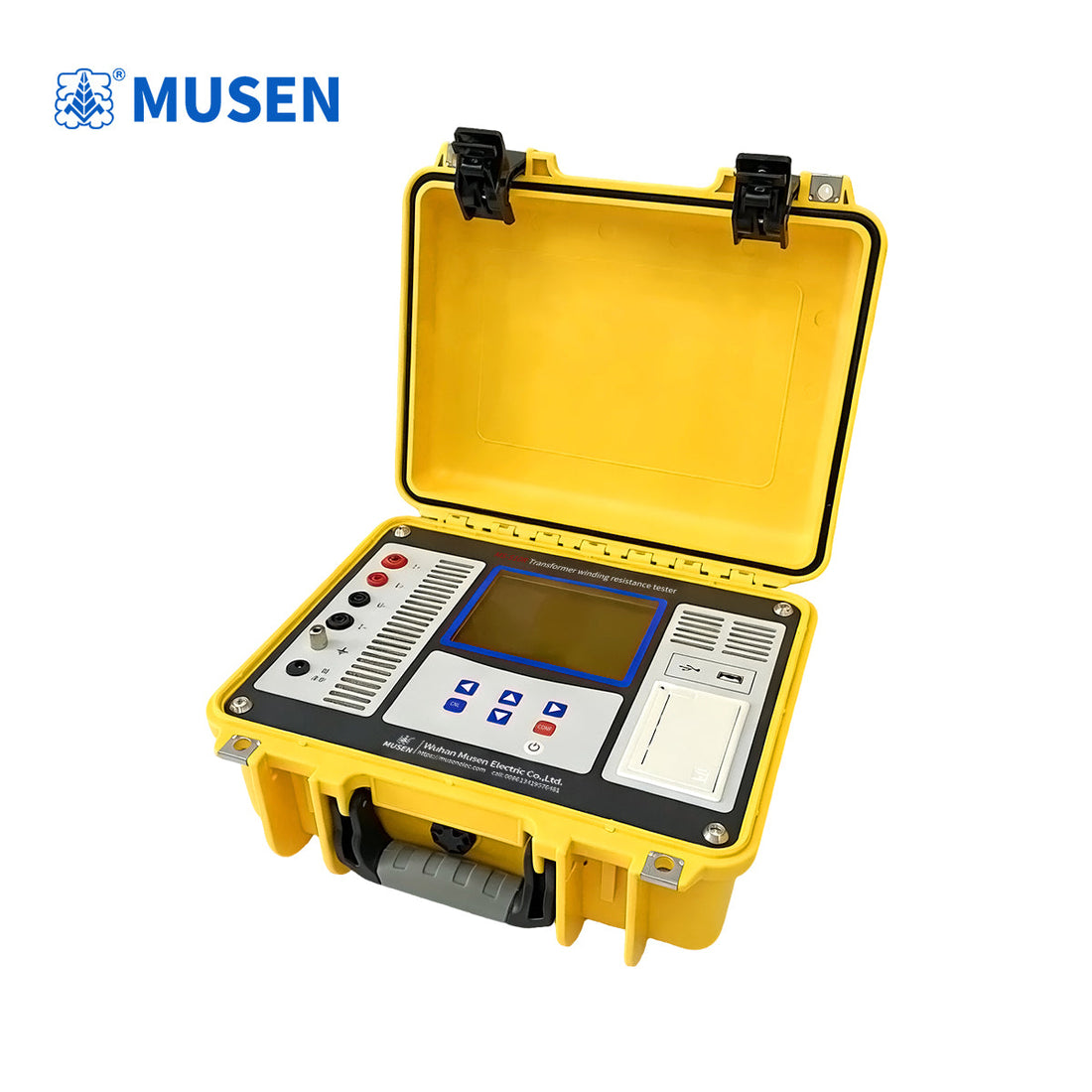

5. Professional Equipment Specification & Features Our latest diagnostic series at Musen Electric is designed for rugged field use and high-precision laboratory requirements:
Power Versatility: Adaptive 220V AC or internal Lithium-ion battery power; capable of performing hundreds of tests on a single charge. Dynamic Range: Six selectable current steps with a maximum output of 10A and 25V, featuring intelligent auto-range selection. Extreme Precision: Measurement range spanning 500uΩ～50KΩ with high-resolution digital output. Intelligent Logic: Advanced protection against back-EMF, broken lines, power failure, and overheating.
6. Frequently Asked Questions (FAQ)
What is the primary benefit of the 10A auto-selection feature?
It allows the device to automatically determine the optimal saturation current for the transformer core, ensuring faster stabilization and more accurate readings without manual intervention.How does the tester handle temperature fluctuations?
The system includes a temperature conversion feature that adjusts the measured resistance to a standard reference temperature, allowing for an "apples-to-apples" comparison with factory test reports.Can the device be used in remote locations without AC power?
Yes, the integrated high-capacity lithium battery is designed specifically for remote substation work where stable AC power may not be readily available.Does this tester support both HV and LV winding tests?
Absolutely. With its wide range of 500uΩ to 50KΩ, it is suitable for both low-resistance high-voltage windings and higher-resistance low-voltage configurations.Sample Block Quote
