How to Execute Accurate Maintenance with a Comprehensive Ct Pt Tester
How to Execute Accurate Maintenance with a Comprehensive Ct Pt Tester

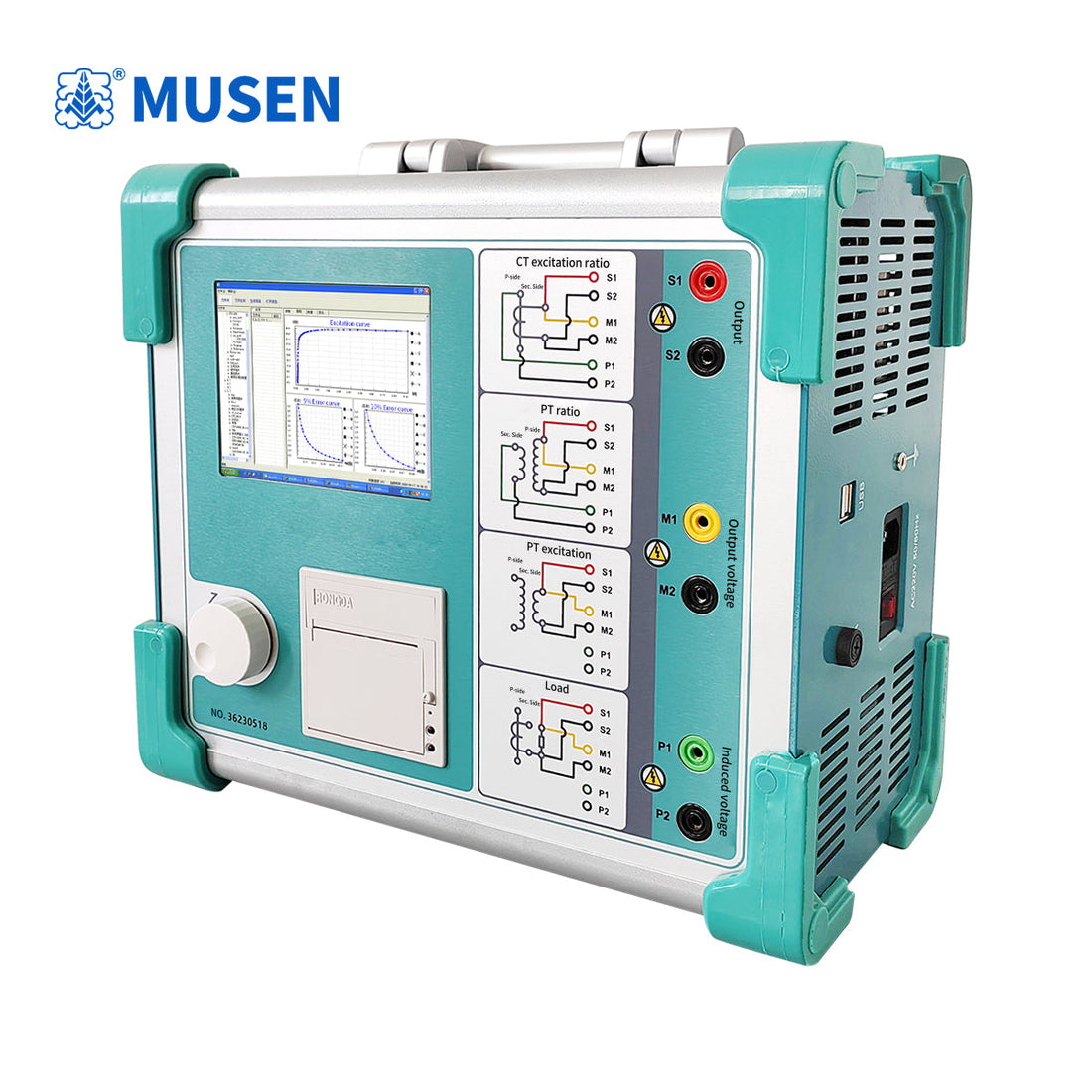

A Comprehensive Ct Pt Tester is a specialized electrical diagnostic instrument engineered to evaluate current transformers (CT) and potential transformers (PT) in compliance with IEC 60044-1, IEC 60044-6, and GB1208 standards. By injecting controlled low-frequency signals, it directly measures excitation characteristics, turns ratio, polarity, and secondary winding resistance up to 300Ω with an accuracy of 2% 2Ω
Why Transformer Testing Equipment is Critical for Substation Safety
Substation assets depend heavily on instrument transformers to step down high voltages and currents for metering and protective relaying. Faulty insulation or core saturation can lead to catastrophic relay misoperation during short circuits. Utilizing professional Transformer Testing Equipment ensures that protection class, metering class, and TP-class transformers operate within linear magnetic regions.
Key Technical Specifications of Advanced Analyzers
Modern testing requires rigorous quantification of parameters rather than qualitative approximations. The following matrix details the performance thresholds of a standard Ct Pt Transformer Integrated Tester:
| Test Parameter | Measurement Range | Accuracy / Resolution |
|---|---|---|
| Excitation / Output | 0–180 Vrms, 12 Arms, 36 A (Peak) | Standard Low-Frequency Test Method |
| CT / PT Ratio | 1–40,000 | ±0.2% |
| Phase Measurement | — | Accuracy±5 , Resolution 0.5min |
| Secondary Winding Resistance | 0–300 Ω | 2%±2mΩ |
| AC Burden Measurement | 0–1000 VA | 2%±2mΩ |
Streamlining Field Workflows with a Portable Ct Pt Transformer Comprehensive Analyzer
Field engineers frequently perform tests in cramped substation switchgears. A Portable Ct Pt Transformer Comprehensive Analyzer simplifies this by enabling single-click execution for DC resistance, excitation, ratio, and polarity tests using identical wiring configurations. Furthermore, data storage capacity accommodates up to 2,000 test records without data loss during power outages, which can be exported via USB to generate automated Word reports on a PC.
Frequently Asked Questions
- Q: How does the low-frequency method handle high knee-point voltages?
- A: By utilizing a variable low-frequency test signal, the core impedance is reduced, allowing the device to safely test CTs with knee-point voltages up to 45 kV without requiring massive high-voltage injection transformers.
- Q: What international standards must be referenced during testing?
- A: Tests must comply with IEC 60044-1 and IEC 60044-6, which dictate excitation curves, error limits, and accuracy limit factors (ALF).
