### **Why Is a Partial Discharge Free Test System Essential for Global Power Infrastructure?**

In large-scale power engineering, the reliability of high-voltage assets is non-negotiable. Whether commissioning a new substation or certifying extra-high-voltage cables, the **Partial Discharge Free Test System** stands as the ultimate guardian of insulation integrity. Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) provides advanced diagnostic solutions designed to meet the rigorous IEC and IEEE standards required by international EPC contractors and utility providers.

### **### 1. How Does the Partial Discharge Free Test System Eliminate Measurement Interference?**

The primary challenge in high-voltage diagnostics is "noise." Traditional testing transformers often generate internal corona discharge, which masks the actual defects within the test object (DUT). A professional **Partial Discharge Free Test System** utilizes SF6 gas insulation and a dead-tank shielding structure. This design effectively suppresses internal ionization, ensuring that the background interference level remains below 5pC. For engineers, this means every signal captured by the sensors is a true reflection of the equipment’s health, not a byproduct of the test source.

### **### 2. Critical Specifications for High-Voltage Cable and Transformer Certification**

For power cable manufacturing and substation maintenance, technical precision is driven by data. Modern testing requires equipment that can handle sustained resonance or power frequency stress without thermal degradation. The integration of current-limiting resistors and coupling capacitors directly into the transformer housing minimizes stray capacitance. This structural optimization allows the **Partial Discharge Free Test System** to maintain a stable voltage output even under capacitive loads typical of long-range power cables, ensuring compliance with international quality benchmarks.

### **### 3. Safety and Efficiency: The Advantages of SF6 Integrated Technology**

Overseas power projects often operate in diverse environmental conditions, from high-humidity coastal regions to high-altitude inland sites. The MS-YDQW series represents a shift toward "Essential Safety." By replacing flammable transformer oil with non-combustible SF6 gas, the risk of fire during high-voltage breakdown is eliminated. Furthermore, the compact, metal-enclosed design protects the core components from dust and moisture, significantly reducing the maintenance cycle compared to open-type modular systems.

### **### 4. Technical Configuration and Product Selection Matrix**

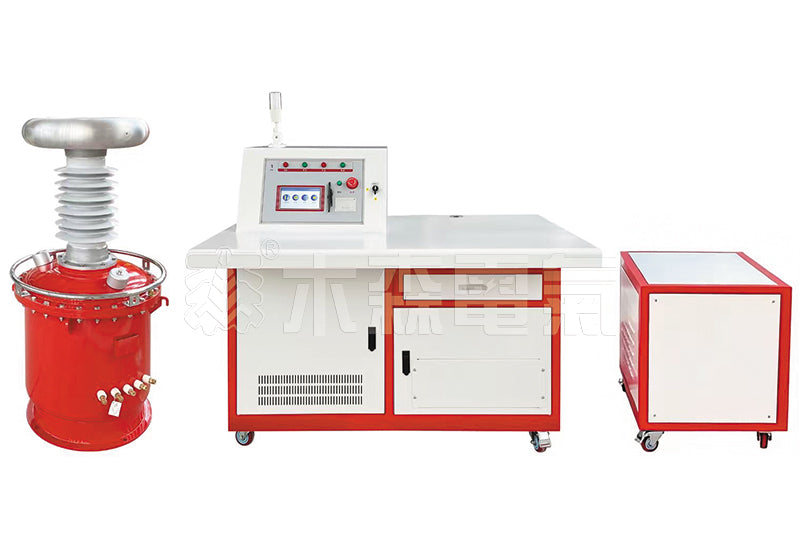

Wuhan Musen Electric Co., Ltd. offers the MS-YDQW series with various power ratings to match specific industrial requirements. These units integrate the transformer, coupling capacitor, and voltage divider into a single, portable footprint.

**MS-YDQW Series Key Technical Parameters:**
* **Available Models:** YDQW-10kvA/100kV, YDQW-20kvA/100kV, YDQW-30kvA/100kV, YDQW-50kvA/250kV, YDQW-250kvA/500kV.
* **PD Level:** Guaranteed < 5pC at rated voltage.
* **Insulation Medium:** SF6 Gas (Sulfur Hexafluoride).
* **Protection:** Integrated over-voltage and over-current protection with automatic zero-return logic.
* **Structure:** High-density integration; 40% lighter than equivalent oil-immersed systems.
* **Maintenance:** Maintenance-free sealing; requires only periodic gas density monitoring.

### **### 5. FAQ: Expert Solutions for Power Equipment Testing**

**Q1: What is the maximum voltage capability of the MS-YDQW series?**
Our standard range supports up to 500kV (model YDQW-250kvA/500kV), which covers the requirements for most 220kV and 330kV power system components. Custom high-voltage configurations are available for specialized laboratory research.

**Q2: Can this system be used for on-site commissioning?**
Yes. Due to the integrated SF6 design, the system is significantly more compact and robust than traditional modular kits. It is designed for easy transport and rapid setup on-site, provided a stable power source is available.

**Q3: How does the system handle a test object failure (breakdown)?**
The system features an ultra-fast protection circuit. Upon detecting a breakdown or flashover, the high-voltage output is tripped in milliseconds, and the voltage regulator automatically returns to the zero position to prevent re-energization.

**Q4: Is the gas density monitoring digital?**
The units are equipped with high-precision pressure gauges and density relays. For advanced setups, digital monitoring interfaces can be integrated to provide real-time status updates to the control room.
