Why Is the AC Resonance Test System Critical for High-Voltage Grid Reliability?**

In the global power sector, the commissioning of high-voltage (HV) infrastructure demands rigorous insulation verification. For international EPC contractors and utility operators, the **Resonance Test System** has become the industry standard for performing AC withstand voltage tests on long-distance cables, GIS, and large generators. Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)) delivers specialized resonance solutions that prioritize testing equivalence and equipment safety, ensuring that 6kV to 500kV assets meet the highest international performance benchmarks.

1. How Does the Resonance Test System Optimize Field Testing for Large Capacitive Loads?**

Testing large capacitive components like XLPE cables or Gas Insulated Switchgear (GIS) requires significant reactive power. A traditional test transformer would be prohibitively heavy and require a massive power source. In contrast, the **Resonance Test System** utilizes series resonance to cancel out the capacitive reactance of the test object with inductive reactance from modular reactors. This physical phenomenon allows the system to generate high voltage and high current while consuming only a fraction of the power from the grid. This makes the equipment significantly more portable and efficient for on-site substation deployments.

2. Protecting Sensitive Assets with Advanced Low-Harmonic Technology**

Precision in HV testing is not just about reaching the target voltage; it is about the quality of the waveform. High-voltage harmonics can cause localized overheating and premature aging in the insulation of generators and main transformers. Musen Electric’s **Resonance Test System** features a patented low-harmonic design that keeps harmonic content below 0.3%. This is substantially lower than the 5% threshold defined by most national standards. By providing a clean sine wave, the system ensures that the test results reflect the true dielectric strength of the insulation without introducing supplemental stress from electrical noise.

 3. Integrated Safety Protocols and Data Accuracy for Power Engineering**

Field safety is paramount when dealing with 500kV environments. Modern resonance units are engineered with comprehensive protection logic, including over-voltage, over-current, and flashover (discharge) protection. If a breakdown occurs in the test object, the system immediately loses its resonance condition, causing the voltage to collapse instantly and preventing damage to the fault site. Furthermore, because the system operates the test object at its rated frequency and voltage, it provides highly accurate data necessary for evaluating the long-term reliability of critical power infrastructure.

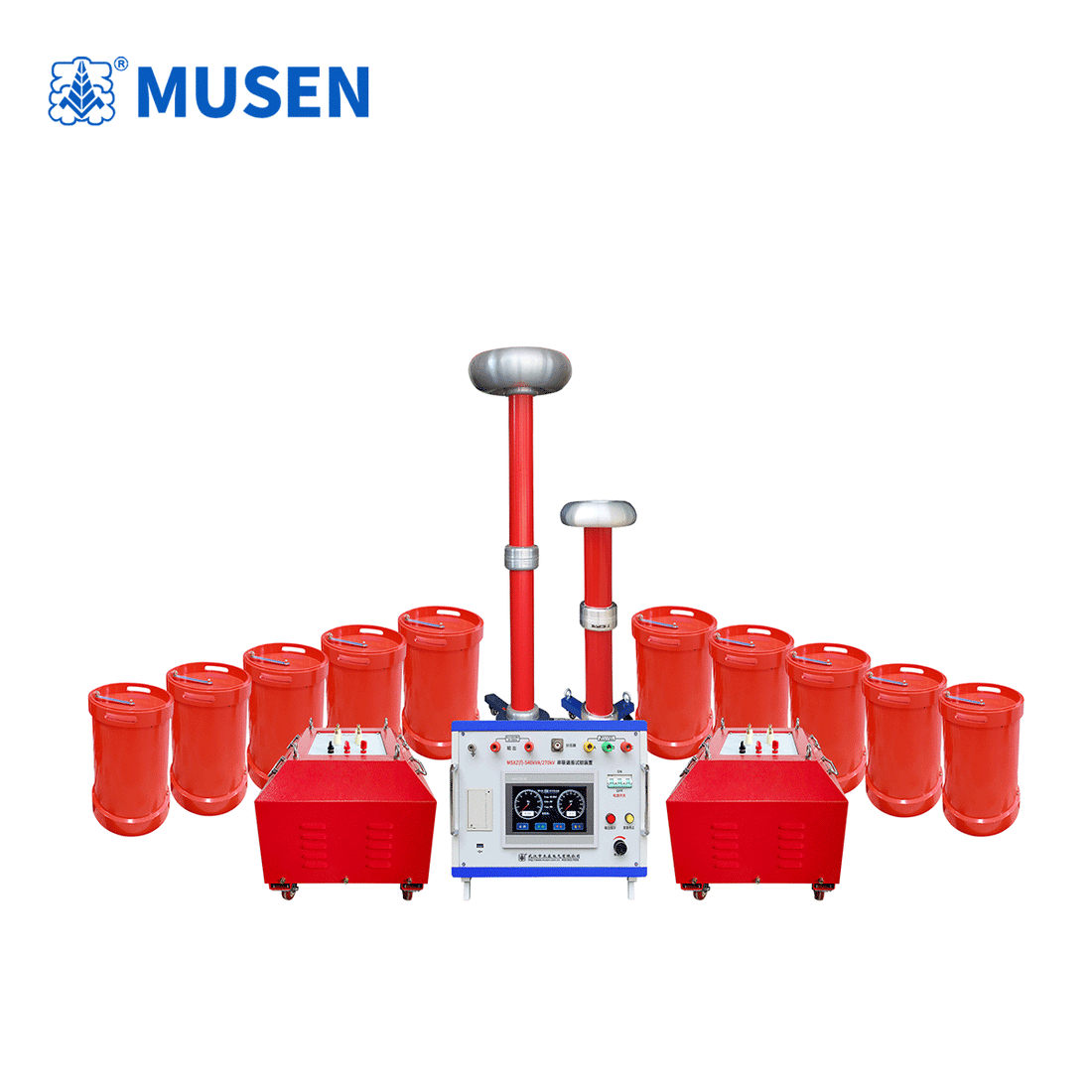

#4. Technical Configuration and Product Matrix: MS-VF Series**

Wuhan Musen Electric provides versatile configurations to meet the withstand voltage requirements of various HV components. Our systems are characterized by modular reactor designs that can be combined in series or parallel to match specific load capacitances.

**MS-VF Series Key Performance Indicators:**
* **Testing Equivalence:** High-fidelity simulation of actual operating conditions.
* **Harmonic Content:** < 0.3% (Patented low-harmonic technology).
* **Safety Features:** Over-voltage, over-current, discharge, over-heat, and zero-start interlocks.
* **Efficiency:** Significantly lower power consumption and weight compared to traditional AC transformers.
* **Portability:** Modular components allow for easy transport and rapid assembly in remote areas.

5. FAQ: Professional Insights into Resonance Testing**

**Q1: Why is the power requirement for a resonance system so low?**
A resonance system only supplies the "active power" (resistive losses) of the circuit. The "reactive power" required by the capacitive test object is exchanged internally between the reactor and the test object. Typically, the input power is only 1/Q of the total output power (where Q is the quality factor).

**Q2: Can I test a 500kV GIS with the same system used for 110kV cables?**
Yes, provided the total voltage rating and frequency range are compatible. By adding or removing modular reactors in the series, the system can be tuned to different voltage levels and load capacitances, making it a highly versatile asset for utility fleets.

**Q3: What happens to the equipment during a flashover?**
Our system includes ultra-fast discharge protection. In the event of a flashover, the circuit instantly de-tunes, the voltage drops to zero within microseconds, and the automatic zero-start protection prevents any re-application of voltage until the operator resets the system.

**Q4: How do I determine the number of reactors needed for my project?**
The configuration depends on the capacitance of your test object and the required test voltage. Our engineering team at [www.musenelectric.com](https://www.musenelectric.com) provides custom calculation services to ensure your **Resonance Test System** is perfectly matched to your specific cable lengths or generator sizes.
