Is your microcomputer protection reliable? Learn how a professional Protective Relay Test Set ensures grid stability through secondary injection and complex fault simulation.
1. Why is Precise Microcomputer Protection Verification Critical for Grid Stability? Modern power systems rely heavily on microcomputer-based relays to process high-speed data and execute complex logic. Unlike traditional electromagnetic units, digital protection requires a highly stable Protective Relay Test Set to verify complex algorithms. In overseas power engineering projects, the reliability of these devices determines the safety of the entire substation. Accurate secondary injection ensures that trip settings are perfectly calibrated, preventing catastrophic equipment failure during real-world transients.
2. How Does a Secondary Current Injection Test Kit Simulate Complex Grid Faults? A professional Relay Tester does more than just output current; it creates a "digital twin" of power system disturbances. By simulating transient, permanent, and evolving faults, engineers can observe the relay’s response in a controlled environment.
Technical Validation Parameters:
- ➤ Dynamic Fault Simulation: Testing the logic of "Instantaneous Trip" vs. "Time-Delay" settings.
- ➤ Phase Synchronization: Ensuring the relay maintains stability during phase-angle shifts.
- ➤ Harmonic Restraint: Verifying that transformer differential protection does not misoperate during inrush current.
- ✔ Integrated 4-Phase Voltage & 3-Phase Current: Facilitates diverse combination outputs for all protection types.
- ✔ High Power Density: 120V per phase voltage and a parallel current output of up to 120A for high-burden testing.
- ✔ Microcomputer Optimization: Specifically designed for verifying digital protection units with "plug-and-play" fault simulation.
- ✔ Complex Logic Automation: Supports 3-phase differential, bus transfer (ABT), and line synchronization reclosing tests.
- ✔ Smart Binary Interface: 8 inputs and 4 outputs with 0–250V automatic potential identification and expandable contact groups.
Q1: Why should I prioritize secondary injection over primary injection for relay commissioning?
Secondary injection is safer, more cost-effective, and allows for much finer control over the testing parameters of the relay's logic without needing to energize the high-voltage primary circuit.
Q2: Can this equipment test synchronization and reclosing logic?

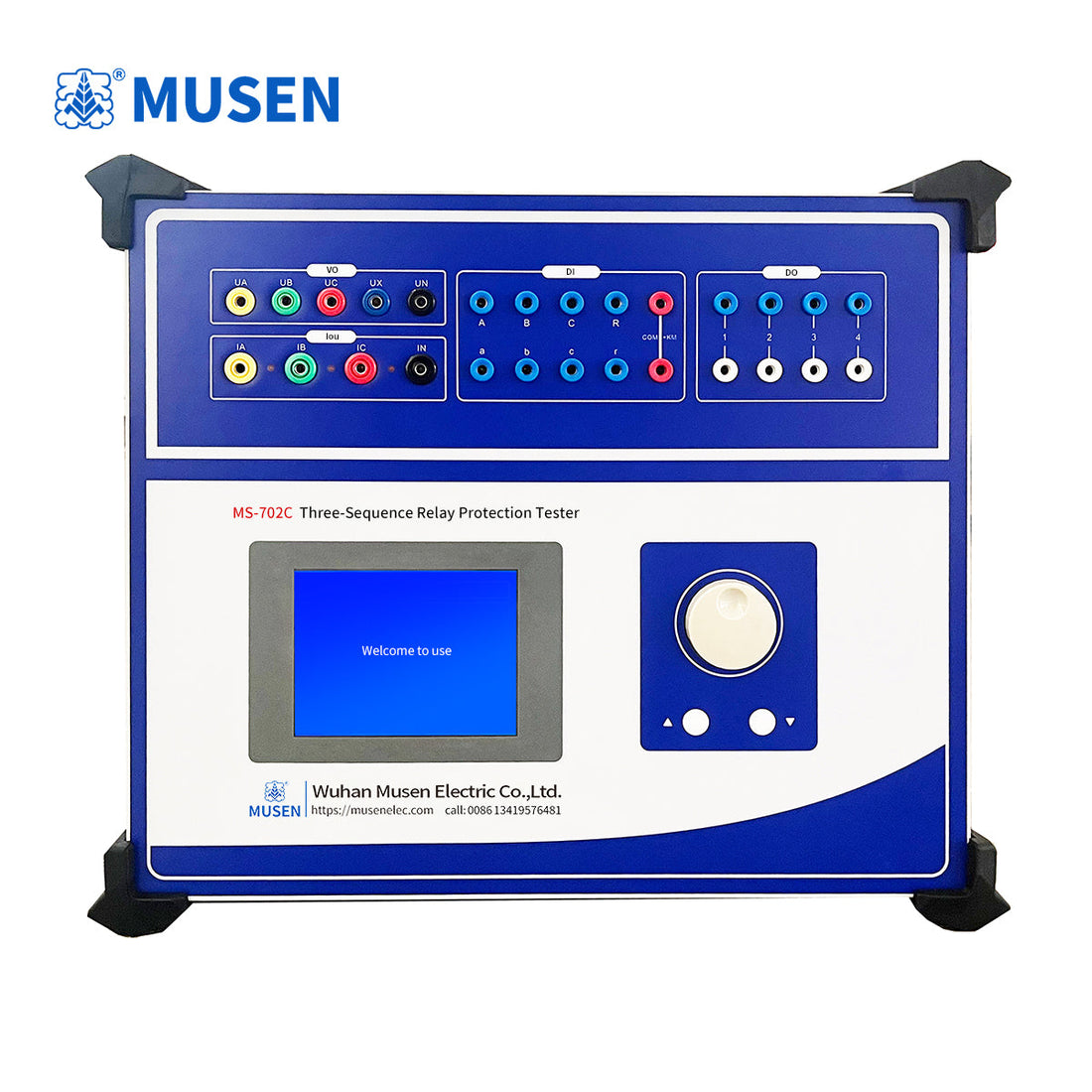

Yes. Advanced units like the MS-702C can simulate the voltage and phase differences required to verify that "Check-Sync" reclosers operate only within safe margins.
Q3: How does the tester handle "wet" vs "dry" binary contacts?
The system features intelligent recognition that automatically detects potential (up to 250V) on "wet" contacts or provides the necessary sensing for "dry" (idle) contacts, preventing short circuits during testing.
Q4: Is the software interface suitable for automated report generation?
Professional testers include dedicated software modules that automatically record trip times and curves, which can be exported as professional PDF reports for utility compliance.
