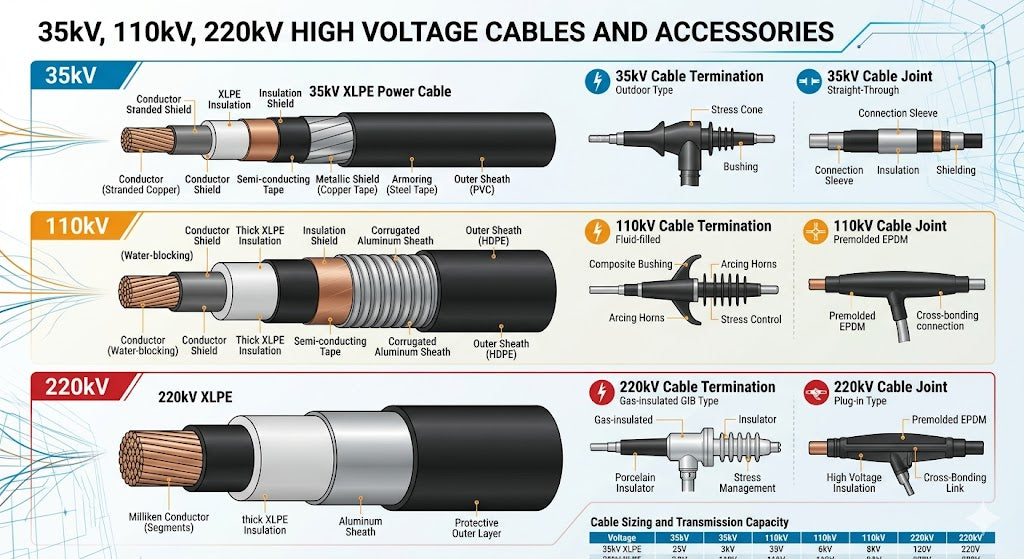

1. Critical Standards for High-Voltage Cable Factory Acceptance** In global power engineering, the transition from manufacturing to installation is governed by rigorous quality protocols. For 35kV to 110kV infrastructure, the List of Factory Test Items for 110kV/35kV Cables and Accessories** acts as the primary safeguard against insulation failure. These tests verify that the Cross-Linked Polyethylene (XLPE) and cable accessories meet the electrical stresses they will encounter during decades of service. At Wuhan Musen Electric Co., Ltd. ([www.musenelectric.com](https://www.musenelectric.com)), we emphasize that factory testing must be data-driven to ensure long-term grid stability.
2. Essential Diagnostic Protocols for 35kV-220kV Systems** Professional testing is categorized into routine factory checks and on-site commissioning. The following items are non-negotiable for project acceptance:
● **Dielectric Integrity:** Measuring the dissipation factor to identify moisture ingress.
● **Partial Discharge Analysis:** Detecting micro-voids within the insulation layer.
● **Conductivity Verification:** Ensuring the DC resistance of the conductor falls within specified limits to prevent thermal loss.
3. Specialized Equipment for 110kV/35kV Testing Projects** To execute the List of Factory Test Items for 110kV/35kV Cables and Accessories** effectively, engineering teams require laboratory-grade precision in the field. Musen Electric provides a comprehensive technology stack tailored for manufacturers and power utilities:
Core Testing Inventory:
1. **AC Resonance Systems:** For 35kV (MSXB-F 135kVA/108kV) and 220kV (MSXB-F 2500kVA/500kV) main insulation testing.
2. **Sheath Diagnostics:** MSZGF-120kV/2mA DC High Voltage Generator for leakage current measurement.
3. **Insulation Resistance:** MS-3126A (5kV/10kV) testers for rapid health assessment.
4. **Precision Conductivity:** MS-510R (10A) DC Resistance Tester for conductor quality acceptance.
5. **Pre-commissioning Phase Check:** HBR-900 Wireless Phase Detector, compatible with 35kV to 220kV networks.
4. Advanced Field Diagnostics: VLF and Dielectric Loss** Modern engineering standards increasingly move toward non-destructive field tests. Utilizing **Ultra-Low Frequency (VLF) 0.1Hz Generators** allows for high-capacitance cable testing with portable equipment. Combined with the **MS-101D1 Dielectric Loss Tester**, technicians can identify localized insulation aging or moisture issues before they lead to unplanned outages. This proactive approach is essential for 110kV and 220kV preventive maintenance cycles.
5. Implementing the Full Testing Lifecycle** The scope of a professional testing project covers the factory floor, the delivery site, and the operational life of the cable. Following the List of Factory Test Items for 110kV/35kV Cables and Accessories** ensures that every joint, termination, and meter of cable is verified under AC resonant conditions. Musen Electric supports global contractors with equipment that meets IEC and IEEE standards, ensuring seamless handover to power grid operators.
6. Industry Technical FAQ**
Why is AC Resonant testing superior for 110kV+ cables?
Standard transformers cannot handle the high charging current of long HV cables. Resonant systems use the cable’s capacitance to create a resonant circuit, requiring much lower input power to achieve high test voltages.
What is the significance of the outer sheath test?
The sheath protects the main insulation from moisture and mechanical damage. A DC withstand test using a tool like the MSZGF ensures the sheath is intact after laying, preventing future water treeing.
How does the HBR-900 ensure safety during phase verification?
It utilizes wireless transmission technology, allowing engineers to verify phases across 35kV to 220kV systems without physical contact between units, significantly reducing the risk of flashover during pre-commissioning.
Can the MS-510R be used for both factory and site testing?
Yes. While primarily used for factory quality control, its high precision (10A) makes it ideal for verifying the integrity of cable joints and conductor continuity after site installation.
