1. Why is Precise Turn Ratio Measurement Essential for Modern Power Grids?
In the global power industry, the transformer is the heart of energy distribution. Maintaining its health is not just about efficiency; it is about grid security. A high-precision turns ratio tester is the primary diagnostic tool used to verify that a transformer’s voltage transformation meets its nameplate specifications. Any deviation—even a minor one—often signals underlying physical defects such as winding displacement, insulation breakdown, or shorted turns. For overseas utility providers and engineering firms, ensuring these assets operate within strict tolerances is the first step in preventing catastrophic grid failure.

2. When Should Utilities Perform a Transformer Test for Maximum Reliability?
The lifecycle of a power transformer involves multiple critical intervention points where testing is mandatory:

Manufacturing & Factory Acceptance (FAT): Verifying the turns ratio of both semi-finished and finished units ensures that the winding process meets design parameters before shipment.

Commissioning & Handover: During installation at a substation, a turns ratio tester confirms that no internal damage occurred during sea or land transit.

Routine Maintenance: Periodic testing (every 2-4 years) identifies gradual insulation aging before it results in a fault.

Post-Fault Diagnostics: Following a relay trip, a rapid ratio check helps determine if the transformer can be safely re-energized or if it requires immediate repair.

3. What Technical Features Define Professional Transformer Test Equipment?
For international power projects, equipment must be both rugged and technologically advanced. Selecting a professional Transformer Test device requires looking beyond basic measurements. Modern standards demand integrated intelligence to handle complex vector groups and automated protection. Professional units from Wuhan Musen Electric Co., Ltd. (www.musenelectric.com) are engineered to meet these high-stakes requirements, providing data-driven insights that allow engineers to make informed "go/no-go" decisions in the field.

4. How Does High-Precision Equipment Improve Field Testing Efficiency?
Time is a critical factor in power engineering. Modern testing devices must balance accuracy with operational speed. Advanced units now offer:

Wide Range Capability: Testing ratios up to 10,000 to cover everything from small CTs to massive GSU transformers.

Automated Vector Recognition: Identifying "Z-type" or complex three-phase connections without manual intervention.

Safety Interlocks: Protecting both the operator and the transformer from high-voltage back-feed or short-circuit conditions during the test.

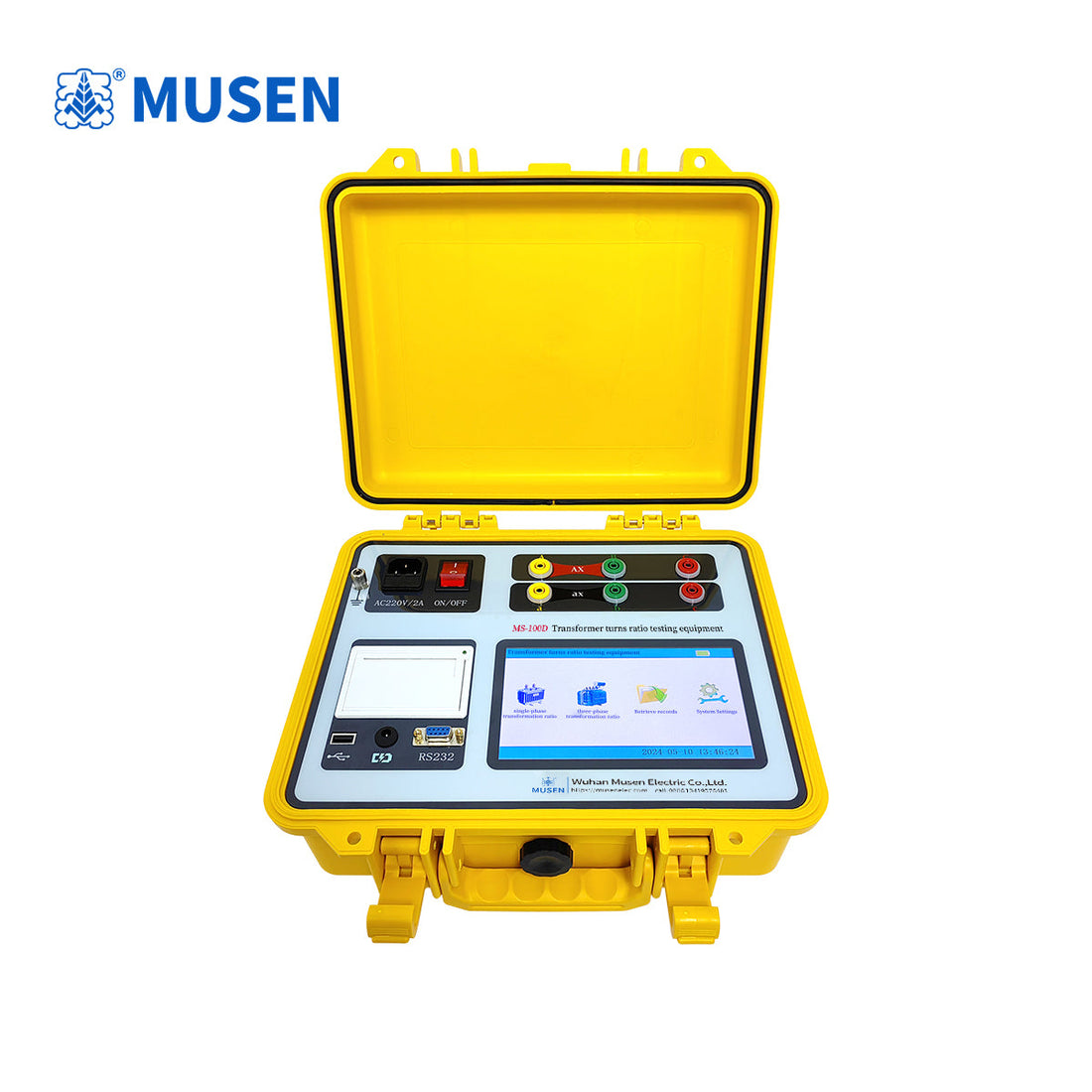

5. Product Technical Specifications and Performance Data
Wuhan Musen Electric provides industry-leading solutions for transformer diagnostics. Our equipment is designed for the rigorous demands of the global power sector:

Wide Range: Measurement range up to 10,000 for diverse applications.

Rapid Speed: Complete single-phase testing within 5 seconds.

Compatibility: Full support for Single-phase, Three-phase, and Z-type transformer testing.

Intelligent Features: Automated "Blind Test" for ratio, group, and tap position analysis.

Safety Systems: High/Low voltage reverse connection protection and inter-turn short circuit protection.

6. Frequently Asked Questions Regarding Transformer Ratio Testing
Q: What is the acceptable tolerance for a turns ratio test?
A: According to IEEE and IEC standards, the measured ratio should typically be within 0.5% of the rated nameplate ratio. Anything beyond this requires immediate investigation.

Q: Can this equipment test transformers with unknown vector groups?
A: Yes. Advanced testers include a "blind test" function that automatically identifies the connection group and ratio without prior input.

Q: Why is speed important in ratio testing?
A: In utility environments, outage windows are extremely tight. A 5-second test speed significantly reduces total substation downtime and labor costs.
