How to Ensure GIS Reliability? GIS Partial Discharge Test Standards & Tips

Why is GIS Partial Discharge Test Critical for Substation Reliability? Standards & Diagnostic Tips

The operational integrity of Gas-Insulated Switchgear (GIS) is the backbone of modern power grids. As global utilities transition toward higher voltage ratings and more compact substation designs, the risk of insulation failure becomes a billion-dollar concern. A GIS Partial Discharge Test serves as the primary "early warning system" to detect dielectric flaws before they escalate into catastrophic phase-to-ground faults. At Wuhan Musen Electrical Co., Ltd. (www.musenelectric.com), we combine decades of field experience with IEC-compliant technology to provide a comprehensive roadmap for GIS health assessment.

Standard high-voltage withstand tests can confirm if a system holds the rated voltage, but they often miss "latent" defects like floating electrodes or minute conductive particles. To achieve true diagnostic depth, engineers must utilize a GIS PD-Free Test System. These systems ensure that the background noise and the testing equipment itself do not introduce interference, allowing for the detection of discharges as low as 1 pC.

2. Adhering to International Standards: IEC 62271-203 and Beyond

Compliance is not optional in overseas power projects. The GIS Partial Discharge Test must align with IEC 62271-203 for high-voltage switchgear and IEC 60270 for partial discharge measurements. These standards dictate that during On-Site Acceptance Tests (SAT), the PD level should ideally not exceed 5 pC at 1.1 times the rated phase-to-ground voltage. Following these metrics ensures that the equipment meets its 30-to-40-year design life.

• Internal Link Suggestion: View our guide on IEC-compliant high-voltage testing procedures.

3. Advanced UHF and Acoustic Diagnostic Techniques

In high-noise environments typical of outdoor substations, traditional electrical PD detection often struggles. Modern diagnostic tips for GIS Partial Discharge Test implementation emphasize a hybrid approach:

• Ultra-High Frequency (UHF): Capturing electromagnetic waves between 300MHz and 3GHz, providing excellent immunity to corona noise.

• Acoustic Emission (AE): Using piezoelectric sensors to "listen" for the mechanical impact of bouncing particles within the enclosure.

•


4. Data-Driven Interpretation: Distinguishing Protrusions from Particles

Modern GIS diagnostics move beyond simple "pass/fail" results. By analyzing Phase-Resolved Partial Discharge (PRPD) patterns, engineers can categorize risks. For instance, a "fixed protrusion" on a conductor shows stable pulses at the voltage peaks, whereas "free-moving particles" exhibit a random, phase-independent scatter. Using a high-precision GIS Partial Discharge Test set allows for this level of granularity, saving weeks of unnecessary dismantling and inspection.

5. Equipment Spotlight: The MSGTU Series for Global Power Units

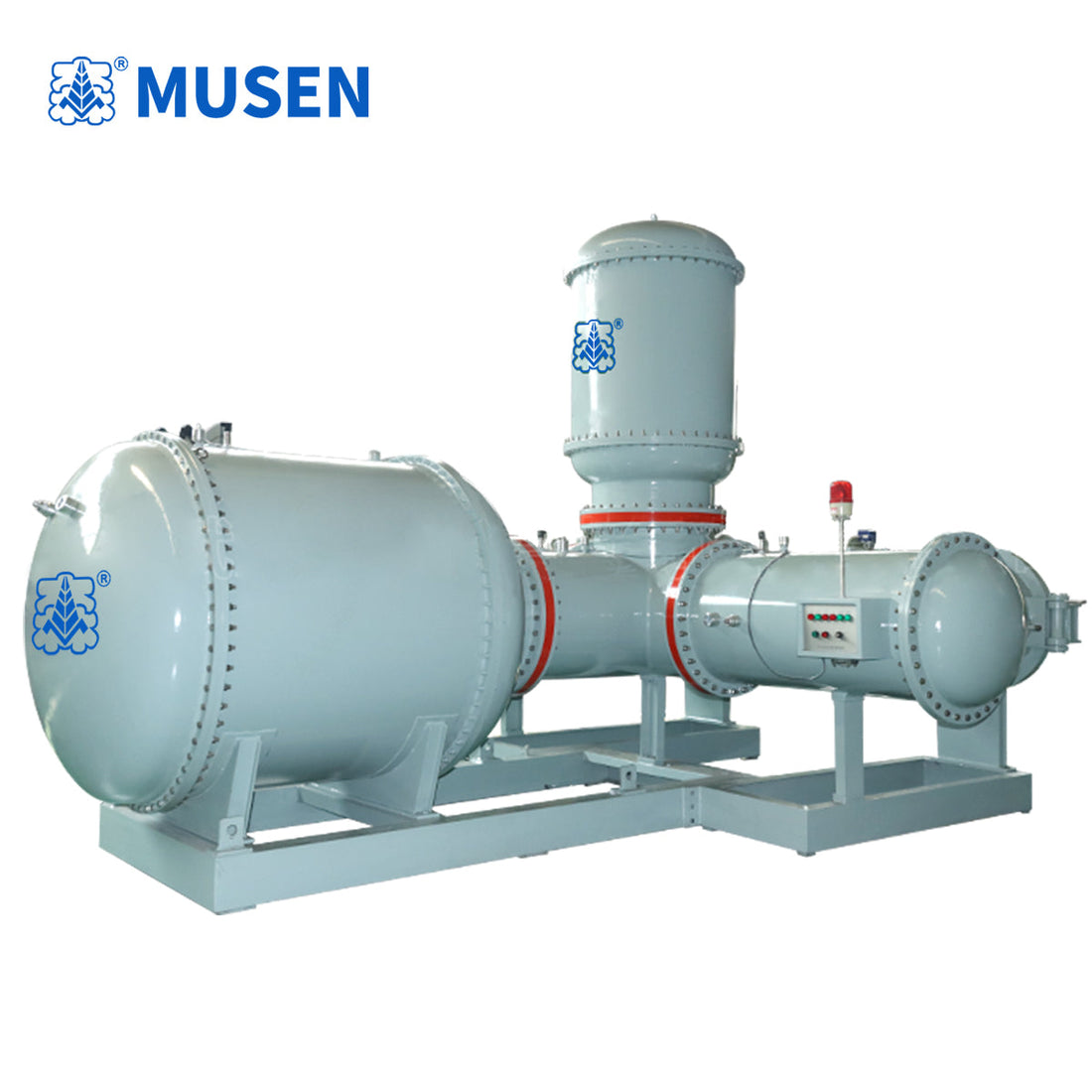

For overseas utility companies requiring mobile, rugged, and high-precision solutions, the MSGTU — GIS Withstand Voltage Test Device is the industry benchmark.

1. Fully Shielded Integrity: The HV section is enclosed to ensure 100% safety and interference-free results.

2. Ultra-Low PD Levels: Guaranteed controllable range of 1–3 pC, far exceeding standard requirements.

3. Logistics Optimized: Engineered for long-distance transport to remote substation sites without losing calibration.

4. Integrated Disconnector: Allows for multi-functional testing without changing leads, reducing downtime.

5. Direct DUT Connection: Streamlines the setup process, reducing the risk of external flashovers during the GIS Partial Discharge Test.

The transition to "Smart Grids" demands more than just basic maintenance; it requires precision diagnostics. By implementing a standardized GIS Partial Discharge Test protocol and utilizing a high-performance GIS PD-Free Test System, power utilities can extend asset life and drastically reduce O&M costs. Wuhan Musen Electrical Co., Ltd. remains committed to delivering the hardware and expertise necessary to keep the world’s power flowing safely.

Frequently Asked Questions (FAQ)

Q1: What is the most common cause of PD in GIS?

A: Most issues arise from "metallic particles" left during installation or "protrusions" caused by mechanical stress, both of which are easily detected by a UHF-based GIS Partial Discharge Test.

Q2: Can we perform a PD test while the GIS is energized?

A: Yes, online PD monitoring is possible using UHF or Acoustic sensors, but the most accurate baseline is established during the offline commissioning phase using a GIS PD-Free Test System.

Q3: Why is the 1–3 pC sensitivity of the MSGTU important?

A: Lower sensitivity (e.g., 10 pC) might miss small voids in solid insulation that will eventually grow into a fault. The 1–3 pC range provided by Musen Electrical ensures even the smallest defects are visible.

Q4: Does the test system support different gas mixtures (e.g., SF6 alternatives)?

A: Yes, our systems are compatible with standard SF6 and emerging eco-friendly gas alternatives, provided the pressure and dielectric constants are accounted for in the diagnostic software.

Q5: How does the MSGTU reduce power supply requirements?

A: The system utilizes resonance and high-efficiency coupling, allowing high-voltage testing even at sites with limited local power capacity.
