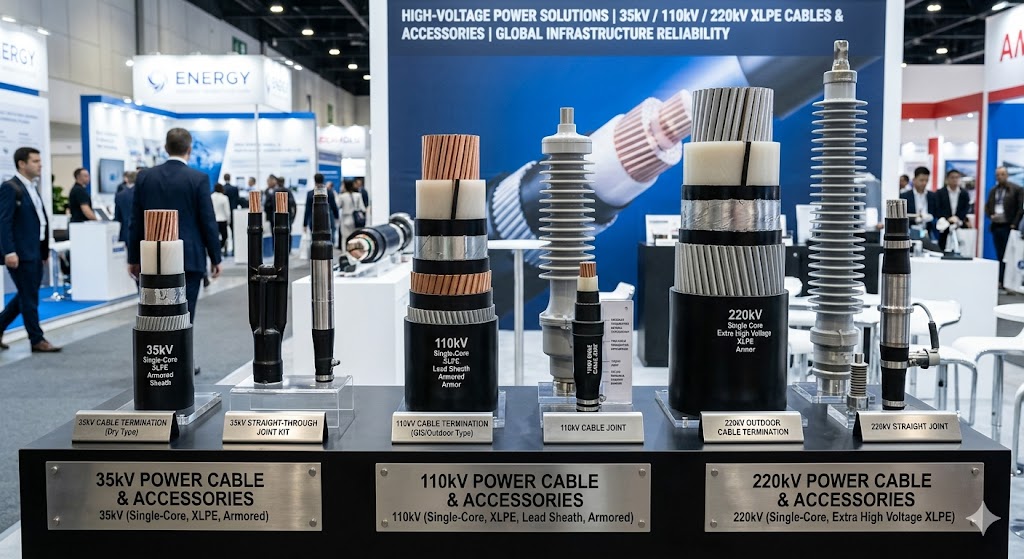

How to Ensure 220kV Cable Reliability with Factory and Site Acceptance Tests?

110kV 220kV cable testing, factory acceptance test equipment, high voltage cable accessories, HV cable installation testing, Musen Electric cable solutions

 Need to verify 110kV-220kV cable integrity? Musen Electric provides professional factory and site commissioning test equipment to ensure global power grid safety.

1. Why is the 110kV-220kV Cable and Accessories Factory Test Critical for Grid Safety?

For global power engineering firms and utility operators, the reliability of high-voltage infrastructure is paramount. The Cable and Accessory Testing Items: Routine Tests serves as the primary defense against insulation defects. At Wuhan Musen Electric Co., Ltd. (www.musenelectric.com), we understand that even a microscopic void in a 220kV cable joint can lead to catastrophic failure. Our testing solutions are engineered to meet IEC 60840 and IEC 62067 standards, ensuring that every component withstands the electrical stress of long-distance transmission.

2. What Equipment is Essential for Conductor and Insulation Resistance Verification?

Before high-voltage energization, the physical properties of the cable must be validated. Accurate DC resistance measurement confirms the conductor's purity and cross-section, while insulation resistance testing identifies moisture ingress or contamination.

• Conductor Resistance: We provide the MS-500 series (MS-520R/540R), designed for high-precision measurement in 110kV and 220kV systems.

• Insulation Resistance: For EHV applications, the MS-3127 (10kV/20TΩ) digital insulation tester provides the high-range sensitivity required to verify the dielectric integrity of XLPE cables before they leave the manufacturing facility.

3. How to Detect Latent Defects Using Partial Discharge and AC Withstand Systems?

The most rigorous phase of the Cable and Accessory Testing Items: Routine Tests involves high-potential testing. Partial Discharge (PD) measurement is the "MRI" of the cable industry, detecting internal ionization at 1.5Uo. Musen Electric specializes in providing low-background noise AC Resonant Test Systems and Gas-Insulated Transformers (YDQW Series).

• 110kV Systems: Requires a test voltage of approximately 160kV.

• 220kV Systems: Requires up to 317.5kV.

• PD Sensitivity: Our systems ensure a background noise level of <2pC, which is essential for capturing subtle discharge signals in cable accessories like stress cones and GIS terminations.

4. Can Dielectric Loss and Sheath Integrity Predict Long-term Performance?

Beyond simple "pass/fail" voltage tests, data-driven analysis of the Dielectric Loss Factor (tanδ) is vital for assessing the aging characteristics of the insulation. Musen Electric’s MS-101G precision bridge allows engineers to monitor tanδ values with extreme accuracy. Furthermore, verifying the outer sheath with the ZGF Series DC High Voltage Generator (up to 120kV/2mA) ensures that the cable's environmental protection remains uncompromised during the Cable and Accessory Testing Items: Routine Tests and subsequent site installation.

5. Frequently Asked Questions Regarding HV Cable Testing

Q1: What are the main differences between factory tests and site commissioning tests?

Factory tests (Routine/Type tests) focus on manufacturing quality and material integrity, often involving PD and AC withstand. Site commissioning (Acceptance) tests verify that no damage occurred during transport or installation, typically using mobile AC resonant systems.

Q2: Is the MS-101G suitable for field use on 220kV terminations?

Yes, the MS-101G is designed for both laboratory and field environments, providing stable dielectric loss measurements even in areas with high electromagnetic interference.

Q3: Why should we choose Musen Electric for our high-voltage testing needs?

Wuhan Musen Electric Co., Ltd. provides comprehensive, data-backed testing solutions. Our equipment is calibrated to international standards, ensuring that utility companies worldwide can operate 110kV-220kV networks with absolute confidence.

Q4: How does PD testing improve the lifespan of cable accessories?

By identifying "cold" joints or improper stress cone positioning during the factory phase, PD testing allows for immediate rectification, preventing premature failure and extending the operational life of the cable system to 30+ years.
