How to Effectively Diagnose Electrical Insulation Aging in Industrial Power Systems?

High voltage insulation tester, Industrial insulation resistance testing, Electrical equipment maintenance, Wuhan Musen Electric, Insulation aging diagnostics
Meta Description: Discover professional methods for diagnosing insulation aging in high-voltage equipment. Learn how specialized testing prevents leakage risks and ensures grid reliability with Wuhan Musen Electric.

### **1. Why is Periodic High Voltage Insulation Testing Critical for Grid Reliability?**

In global power engineering, the integrity of dielectric materials is the frontline defense against catastrophic system failures. For utility providers and industrial plants, **High voltage insulation tester** applications extend beyond simple pass/fail checks; they are diagnostic tools used to identify microscopic degradation. Environmental stressors such as thermal cycling, moisture ingress, and chemical exposure cause irreversible aging in transformer windings and underground cables. By implementing structured testing, engineers can quantify the "leakage risk," transitioning from reactive emergency repairs to a data-driven predictive maintenance strategy.

### **2. How to Utilize PI and DAR Ratios for Accurate Aging Assessments?**

Standard spot insulation checks often provide a misleading sense of security. Professional overseas power contractors prioritize time-resistance methods to gauge the "health" of the insulation. Using a digital **High voltage insulation tester**, technicians calculate the Polarization Index (PI) and Dielectric Absorption Ratio (DAR). A declining PI value over consecutive years is a quantitative indicator of moisture absorption or deep-seated chemical aging. For high-capacitance apparatus like long-distance transmission cables, these ratios are the most reliable metrics for determining whether an asset can remain in service or requires immediate decommissioning.

### **3. What Technical Specifications Define a Professional Grade Tester?**

For large-scale projects, such as those managed by **Wuhan Musen Electric Co., Ltd.** ([www.musenelectric.com](https://www.musenelectric.com)), the choice of instrumentation directly impacts the validity of the data. High-interference environments, such as substations, demand equipment with robust electromagnetic shielding. A professional-grade **High voltage insulation tester** must offer high short-circuit currents to stabilize readings quickly across large capacitive loads. Precision at the Tera-ohm (TΩ) level is essential for modern synthetic insulation materials which exhibit extremely high baseline resistance.

### **4. Integrated Solution: Performance Parameters of the Musen Series**

To meet the rigorous standards of international power maintenance, the following technical capabilities are integrated into our professional diagnostic series:

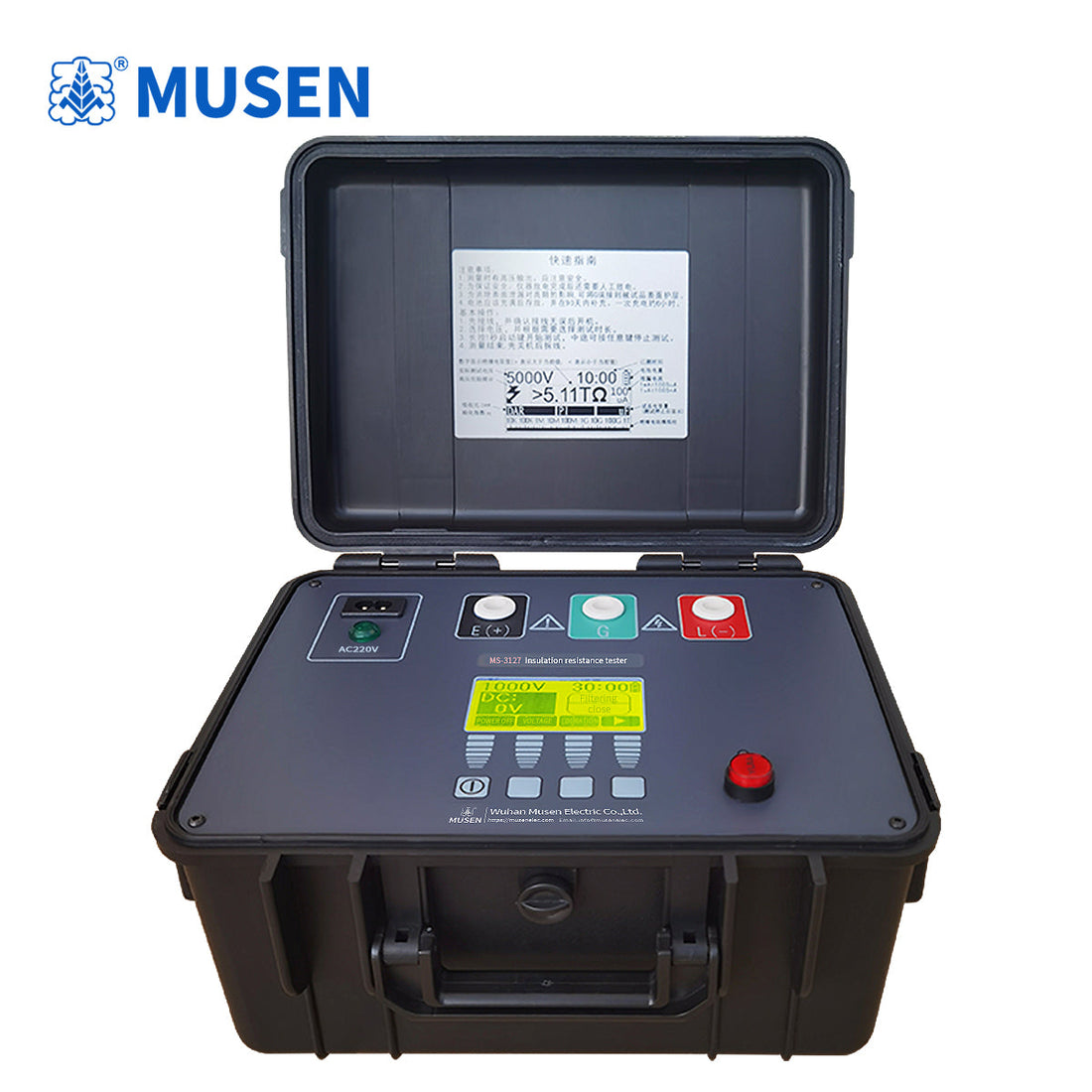

* **Output Versatility:** Features 5 specialized ranges: 500V, 1000V, 2500V, 5000V, and 10000V, with a maximum measurement threshold of 10TΩ.
* **Loading Capacity:** Short-circuit current is adjustable up to 10mA, ensuring rapid charging of large transformers and lengthy cable runs.
* **Diagnostic Automation:** Integrated software automatically calculates and displays PI and DAR values, alongside leakage current and total capacitance.
* **Interference Resilience:** Operates with high precision even in the presence of 2mA interference currents.
* **Safety Protocols:** Automatic rapid discharge of capacitive test objects, eliminating the requirement for manual discharge in cable testing.
* **Power Management:** Powered by a high-capacity lithium-ion battery (4-hour endurance at 10kV) with AC-charging synchronization and automatic power-source switching during outages.

### **5. Frequently Asked Questions Regarding Insulation Diagnostics**

**Q: Can environmental humidity invalidate my insulation test results?**
A: Yes. High humidity creates surface leakage paths that can artificially lower resistance readings. Professional testing should be performed during dry conditions or by using a "Guard" terminal to bypass surface leakage.

**Q: Why is a 10,000V (10kV) range necessary for 3.3kV or 6.6kV equipment?**
A: Higher voltage ranges allow for "Step Voltage" testing, which can reveal aging-related voids and cracks that remain dormant at lower operating voltages.

**Q: Is there a risk of damaging the equipment during a high-voltage test?**
A: When performed according to IEEE or IEC standards, the current is limited to a safe level (micro-amps), ensuring the test is non-destructive while providing critical safety data.

**Q: How does the automatic discharge feature improve site safety?**
A: Large cables act as capacitors and can retain a lethal charge after testing. Automatic discharge ensures the equipment is safe to handle immediately after the test concludes, reducing human error.
