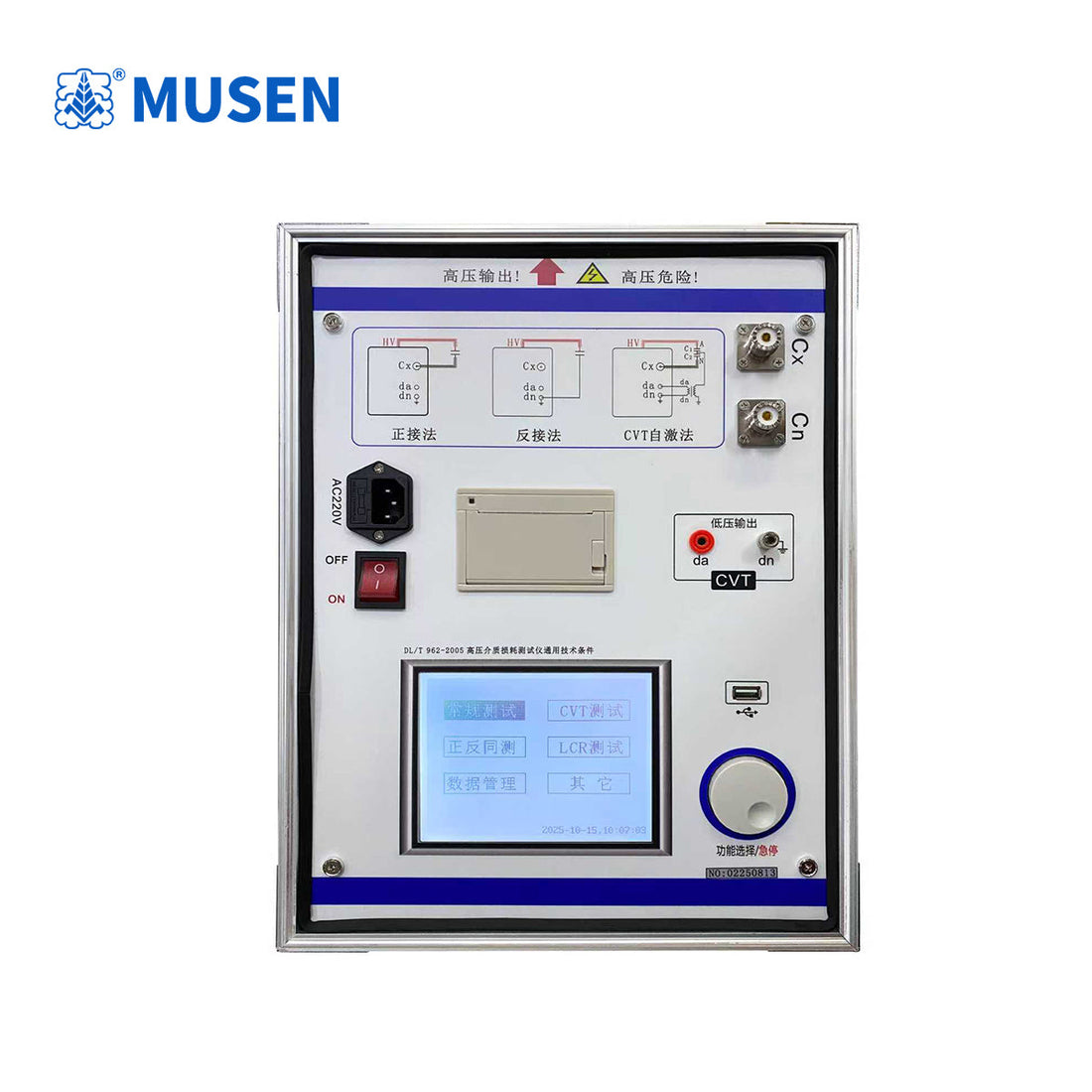

How to Detect Insulation Failure Early with a Dielectric Loss (tanδ) Tester?

Dielectric Loss (tanδ) Tester, Tan Delta Testing, Insulation Resistance, Transformer Diagnostics, High Voltage Testing Equipment

Is your high-voltage equipment at risk? Discover how a Dielectric Loss (tanδ) Tester identifies moisture, aging, and defects in transformers and CVTs to prevent costly downtime.

1. Why is Dielectric Loss (tanδ) Testing Critical for Power Grid Reliability?

In the field of high-voltage engineering, insulation failure is the leading cause of unplanned outages. As equipment ages, environmental factors like moisture and thermal stress change the electrical properties of the insulation. A Dielectric Loss (tanδ) Tester measures the dissipation factor—the ratio of resistive current to capacitive current. A rising tanδ value is a definitive indicator of insulation degradation, allowing utility managers to schedule maintenance before a catastrophic breakdown occurs. At Wuhan Musen Electrical Co., Ltd. (www.musenelectric.com), we provide precision instruments designed to capture these subtle changes in the harshest electromagnetic environments.

2. How Does Anti-Interference Technology Improve Field Accuracy?

Testing in active substations presents a significant challenge due to intense 50Hz/60Hz electromagnetic interference. Standard bridges often fail to produce stable readings in these conditions. Modern advanced equipment utilizes frequency conversion technology, typically operating at 45Hz and 55Hz, to bypass power-frequency noise. This ensures that the data collected represents the true state of the dielectric material. Utilizing an integrated digital filtering system allows for high-precision measurements of capacitance and loss angles, even when the equipment is adjacent to energized high-voltage lines.

3. What Are the Specialized Diagnostic Functions for CVT and Transformers?

Advanced diagnostic tools must adapt to various equipment architectures. For Capacitive Voltage Transformers (CVT), efficiency is key. Professional-grade units now feature self-excitation testing, which enables the simultaneous measurement of C1 and C2 capacitance and tanδ values with a single connection. This structural approach to testing not only saves time during field outages but also reduces the risk of wiring errors. Furthermore, the ability to perform 10kV reverse-connection measurements while the CVT bus is grounded is a significant advantage for modern grid maintenance, eliminating the need to disconnect heavy primary leads.

4. Structural Data: Professional Technical Capabilities of Musen Equipment

To meet the rigorous standards of global power projects, our testing platforms integrate multiple measurement domains into a single portable solution:

• Integrated CVT Testing: One-time connection for simultaneous C1/C2 Tgδ and capacitance analysis.

• Reverse Shielding Technology: Supports 10kV measurement on grounded CVT buses without lead disconnection.

• Voltage Versatility: Supports external high-voltage input and standard capacitor (Cn) measurement for laboratory-grade precision.

• Voltage Ratio Analysis: Built-in CVT ratio measurement capability for 35kV to 500kV systems.

• High-Throughput Testing: Four-channel synchronous measurement allows for testing multiple samples at once, increasing field efficiency by 400%.

• Comprehensive Insulation Suite: Includes Insulation Resistance, Polarization Index (PI), and Absorption Ratio (DAR) testing.

• LCR Metering: Automatic measurement of Inductance (L), Capacitance (C), and Resistance (R) for auxiliary component verification.

5. Frequently Asked Questions Regarding Dielectric Loss (tanδ) Tester Applications

Q1: What change in tanδ indicates an immediate risk? A: While specific limits depend on the equipment type (e.g., oil-immersed vs. dry-type), a doubling of the initial commissioning value or an absolute value exceeding 1.0% in power transformers usually warrants immediate investigation or oil filtration.

Q2: Can this equipment test insulation resistance as well? A: Yes. Many high-end Dielectric Loss (tanδ) Tester models include an optional insulation resistance module to provide a complete dielectric profile, including PI and DAR values.

Q3: How does moisture affect the tanδ results? A: Moisture increases the conductivity and molecular polarization of the insulation. Even trace amounts of water in transformer oil will cause the dissipation factor to spike, making this test more sensitive to moisture than traditional breakdown voltage tests.

Q4: Is it possible to test multi-channel samples simultaneously? A: Modern units from Musen Electric support multi-channel synchronous measurement, allowing operators to test up to four bushing or capacitor samples at once, significantly reducing the duration of maintenance windows.
