### **1. Why is Precise SF6 Leakage Detection Critical for Grid Stability?**

In high-voltage power systems, SF6 gas serves as a vital insulation and arc-extinguishing medium. However, mechanical vibrations and thermal expansion often lead to seal degradation. Even a leak rate as low as 0.5% per year can significantly reduce the dielectric strength of a circuit breaker. Identifying these faults early is not just about equipment longevity; it is a critical safety protocol to prevent catastrophic flashovers and minimize environmental impact. Utilizing a **Quantitative SF6 Gas Leakage Tester** allows maintenance teams to move beyond simple detection and perform data-driven risk assessments.

### **2. How to Accurately Locate Leakage Points in Complex HV Environments?**

Finding a leak in a sprawling substation requires a systematic "Zone-to-Point" approach. Technicians start by scanning high-risk areas—such as flange joints, density monitor interfaces, and valve stems—using a high-sensitivity **SF6 Gas Leak Detector**. By moving the probe at a steady pace of 1-2 cm per second, operators can identify the specific source of gas escape. This qualitative phase is essential for mapping out the health of the entire switchgear unit before proceeding to detailed quantification.

### **3. Can Infrared NDIR Technology Solve False Alarm Challenges?**

Traditional electronic corona sensors often struggle with humidity and cross-gas interference, leading to inaccurate results. Modern field testing relies on the **Infrared SF6 Gas Analyzer**, which utilizes Non-Dispersive Infrared (NDIR) technology. This method targets the specific absorption wavelength of SF6 molecules, ensuring that the readings are unaffected by wind, moisture, or other background gases. This level of precision is mandatory for meeting the stringent maintenance standards of international power utilities.

### **4. What are the Standards for Effective Quantitative Leak Analysis?**

Once a leak is located, quantifying the volume of loss is the next technical step. The "Bagging Method" remains the industry standard, where a suspected joint is sealed for a set duration to allow gas accumulation. The **Quantitative SF6 Gas Leakage Tester** then measures the concentration increase to calculate the annual leakage rate. According to IEC standards, if the annual leak rate exceeds 0.5% to 1%, the equipment requires immediate repair or component replacement to maintain operational integrity.

### **5. Professional Equipment Specifications and Technical Capabilities**

Wuhan Musen Electric ([www.musenelectric.com](https://www.musenelectric.com)) provides industry-leading diagnostic tools designed for rugged substation environments. Our equipment is engineered to deliver high-precision data with the following features:

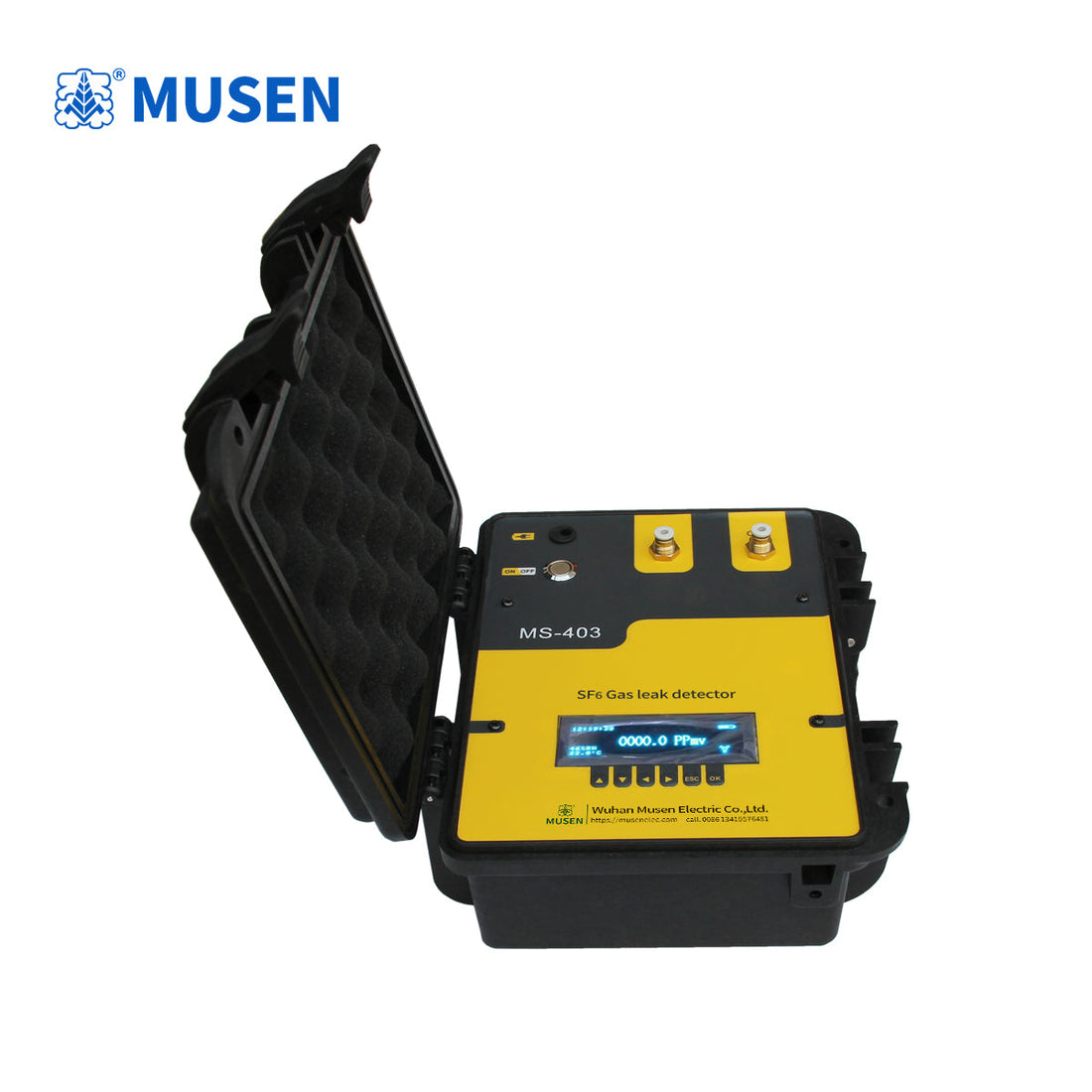

* **Dual-Mode Operation:** Performs both qualitative "sniffing" and quantitative concentration measurements.
* **High-Precision Sensors:** Equipped with German-imported NDIR sensors for world-class sensitivity.
* **Rapid Stabilization:** Achieves a stable data state within 10 seconds for efficient field workflows.
* **Environmental Intelligence:** Features automatic temperature and pressure compensation to ensure accuracy across different altitudes and climates.
* **Multi-Data Visualization:** Simultaneous display of SF6 concentration, ambient temperature, humidity, and pump status on a high-resolution screen.

### **6. Frequently Asked Questions (FAQ) Regarding SF6 Maintenance**

**Q1: What is the most common cause of SF6 leakage in circuit breakers?**
Most leaks occur at the dynamic seals of the operating mechanism or at the O-rings of the porcelain-to-metal interfaces due to aging and environmental exposure.

**Q2: How does temperature affect the accuracy of a leak test?**
Gas pressure and concentration readings vary with temperature changes. Professional testers must include compensation algorithms to normalize data to 20°C (standard density).

**Q3: Can these testers detect SF6 decomposition products?**
While designed for SF6, these specialized NDIR analyzers focus on the base gas. If decomposition products (like SO2 or HF) are suspected, a separate chemical analyzer should be used.

**Q4: Is it necessary to recalibrate the tester before every use?**
No, modern infrared sensors are highly stable. A simple zero-point calibration in clean air before starting the test is typically sufficient for daily field operations.
