How to Conduct Cable Manufacturer Acceptance Testing for High-Voltage Systems?
How to Conduct Cable Manufacturer Acceptance Testing for High-Voltage Systems?
Cable Manufacturer Acceptance Testing, 220kV power cable testing, XLPE cable diagnostics, AC resonance system, Wuhan Musen Electrical
Need to verify grid integrity? Learn how Cable Manufacturer Acceptance Testing ensures the reliability of 35kV-220kV networks with advanced AC resonance and PD detection. ```

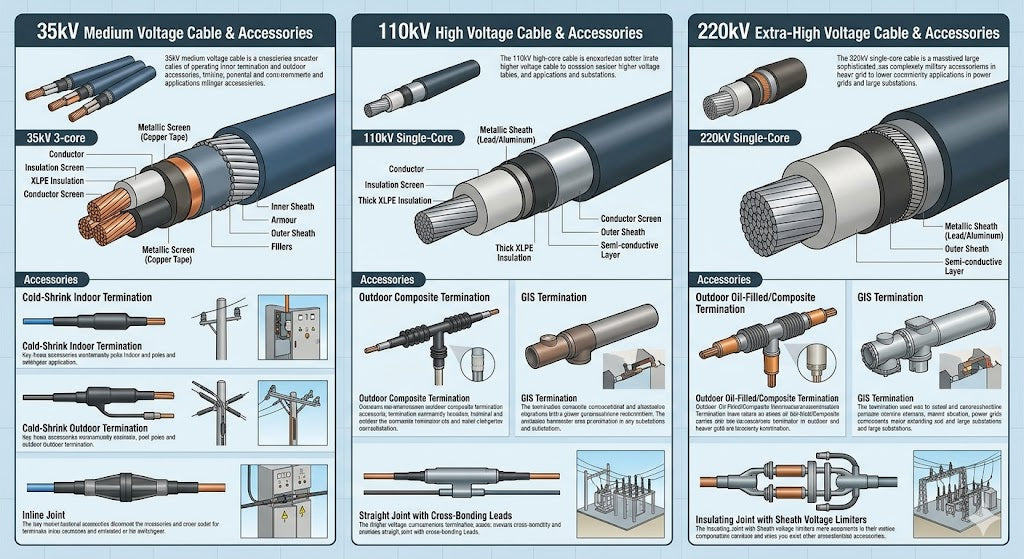

1. How is Main Insulation Integrity Verified in 220kV Systems?
The core of any acceptance protocol is the AC withstand test. Traditional DC testing is often avoided for XLPE (Cross-linked Polyethylene) cables because it can create trapped space charges that lead to premature failure. Instead, the industry relies on the MSXB-F Series Series Resonance System. This equipment utilizes frequency conversion to achieve resonance, providing a high-voltage AC output that accurately simulates operational conditions while minimizing power requirements on-site. For shorter cable runs or specific diagnostics, the 0.1Hz Ultra-Low Frequency (VLF) High Voltage Generator is utilized to detect insulation flaws without causing the "aging" effect associated with higher frequencies.
2. What Methods Best Detect Moisture and Dielectric Weakness?
Even microscopic amounts of moisture or structural voids in the insulation can lead to "water treeing" and eventual breakdown. During the Cable Manufacturer Acceptance Testing, two data-driven metrics are essential:
- Dielectric Loss Analysis: Using the MS-101G Dielectric Loss Tester, engineers measure the Tan Delta value. A rise in this value is a definitive indicator of insulation aging or moisture ingress.
- Polarization Index (PI): The MS-3126 Insulation Resistance Tester calculates the PI and absorption ratio, offering a quantitative assessment of the cable's "dryness" and cleanliness before it is energized.
3. Can Potential Faults be Identified Without Power Interruption?
Modern asset management emphasizes "live detection" to prevent unplanned outages. Handover testing now frequently includes baseline Partial Discharge (PD) measurements. The MSJF-3001B Handheld Partial Discharge Detector allows technicians to identify localized electrical discharges within joints and terminations. By establishing these baseline values during the final stages of Cable Manufacturer Acceptance Testing, utility companies can monitor the progression of defects throughout the cable's lifecycle using non-invasive, energized testing methods.
4. How to Ensure Low Loss in Conductors and Cable Joints?
Electrical efficiency and thermal stability depend on low resistance across the entire circuit. Acceptance testing must include high-precision resistance measurements to verify manufacturing quality and installation precision.
| Test Element | Instrument Recommendation | Critical Benchmark |
|---|---|---|
| Conductor DC Resistance | MS-510R Resistance Tester | Verifies cross-sectional area consistency |
| Joint Contact Resistance | MSHL-100A Loop Tester | Prevents overheating at connection points |
| Sheath Voltage Leakage | MSZGF 120kV Generator | Confirms outer sheath mechanical integrity |
5. Frequently Asked Questions (FAQ)
Q: Why is the MSXB-F series preferred for field acceptance over other AC methods?
A: The series resonance design is significantly lighter and more portable than traditional transformers, making it ideal for the remote or restricted-access locations common in 110kV-220kV project sites.
Q: Is DC testing ever used for the main insulation of XLPE cables?
A: Modern standards generally discourage DC testing for XLPE main insulation due to potential damage. DC is strictly reserved for testing the outer sheath integrity to find physical breaches or ground faults.
Q: How does Tan Delta testing assist in material acceptance?
A: Tan Delta (dielectric loss) acts as a "health check." If a newly manufactured cable shows a high Tan Delta, it suggests impurities or moisture entered the insulation during the production or transport process.
Q: Where can I find equipment for these specific high-voltage tests?
A: Professional-grade testing solutions for international power projects are available at [www.musenelectric.com](https://www.musenelectric.com), specializing in resonance systems and precision diagnostic tools.
```
