How to Choose the Right SF6 Partial Discharge-Free Test Transformer for Power Testing Projects?

Preface: Why Is Proper Selection Critical in High-Voltage Testing?

In global power engineering projects, insulation testing accuracy directly affects equipment safety, commissioning schedules, and long-term grid reliability. Partial discharge measurement is especially sensitive to background interference from test equipment. Selecting the right SF6 partial discharge-free test transformer is therefore a key technical decision for overseas utilities, EPC contractors, and independent testing organizations.

What Technical Parameters Should Be Evaluated First?

When selecting a suitable test transformer, engineers should begin with fundamental electrical parameters. Rated voltage, capacity, and power frequency withstand capability must align with the test object and applicable international standards.

A properly specified SF6 partial discharge-free test transformer ensures stable voltage output under continuous operation without introducing internal discharge that may affect measurement credibility.

How Important Is Partial Discharge Performance Level?

Partial discharge background level is one of the most critical selection criteria. Traditional systems that rely on external current-limiting resistors, coupling capacitors, and voltage dividers often reach discharge levels close to 10 pC due to complex wiring and field distortion.

An integrated SF6 partial discharge-free test transformer, with built-in components and optimized electric field distribution, can reduce total discharge to 5 pC, significantly improving test accuracy and repeatability.

Why Does Structural Integration Matter for Overseas Projects?

Overseas power projects often face logistical challenges such as limited site space, transportation constraints, and harsh environmental conditions. Equipment with high structural integration offers clear advantages.

Choosing an SF6 partial discharge-free test transformer with a compact, sealed metal enclosure helps reduce installation time, minimize footprint, and maintain stable performance regardless of ambient humidity, dust, or temperature.

How Do Safety and Maintenance Requirements Affect Selection?

Safety is a non-negotiable factor in high-voltage testing. SF6 gas provides excellent arc-quenching capability and high dielectric strength while being non-flammable. This intrinsic safety is especially valued in enclosed substations and laboratory environments.

In addition, an oil-free design eliminates leakage risks and reduces maintenance workload. A well-designed SF6 partial discharge-free test transformer typically requires only periodic monitoring of gas pressure and density.

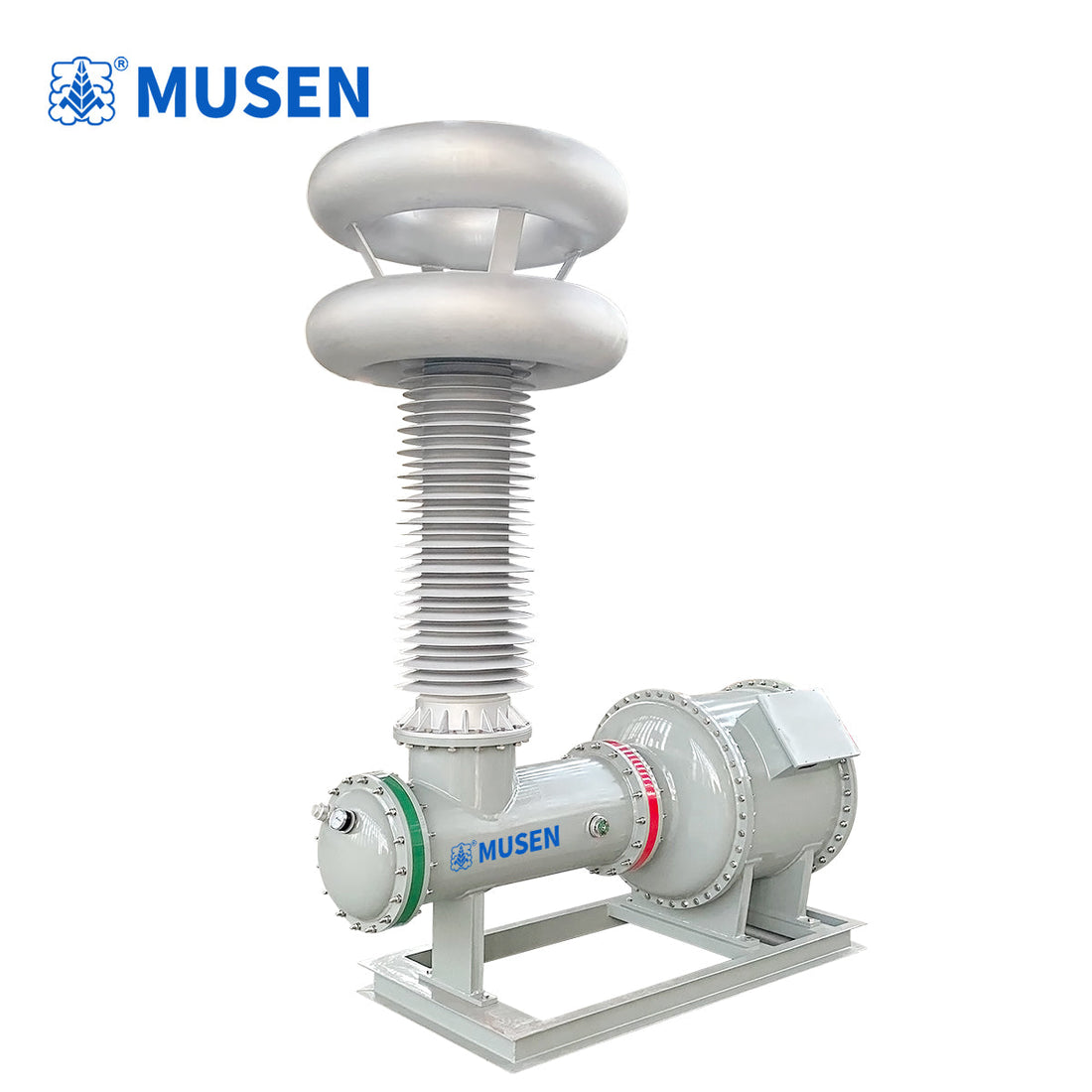

Product Overview: MS-YDQW SF6 Partial Discharge-Free Test Transformer

The MS-YDQW power frequency withstand voltage test device developed by Wuhan Musen Electric Co., Ltd. is designed to meet the demanding requirements of international power testing applications. As a professional SF6 partial discharge-free test transformer, it integrates multiple functions into a single, compact system.

Equipment model:
MS-YDQW Partial Discharge-Free Power Frequency Withstand Voltage Test Device (PD-Free Test Transformer)

Key advantages:

1. Strong arc-extinguishing capability and excellent insulation performance

2. Fireproof, non-flammable SF6 gas ensuring intrinsic operational safety

3. Lightweight design with high integration, combining gas-insulated test transformer, coupling capacitor, current-limiting resistor, and voltage divider into one unit

4. Easy transportation and installation with minimal site footprint

5. Clean operation with no oil contamination and virtually no maintenance (only regular gas pressure and density monitoring required)

6. Fully sealed metal enclosure with minimal environmental influence

Compared with traditional externally connected systems that approach 10 pC, the integrated MS-YDQW design achieves a total partial discharge level of 5 pC, providing superior testing reliability.
Official website: https://musenelectric.com/

How Can the Right Choice Improve Test Reliability?

Selecting the appropriate SF6-based PD-free testing solution is essential for ensuring accurate insulation assessment and smooth project execution. By focusing on discharge performance, safety, integration level, and maintenance requirements, overseas power engineers can significantly reduce testing risks. With its advanced integrated design and proven performance, the MS-YDQW solution from Wuhan Musen Electric Co., Ltd. offers a dependable foundation for high-voltage power testing worldwide.
