How to Choose the Right Resonant AC Withstand Voltage Test Device for Electrical Testing?

Selecting the appropriate resonant AC withstand voltage test device is crucial for ensuring the safety and reliability of electrical equipment. In this guide, we will provide an overview of the key factors to consider when choosing a suitable device for electrical testing, focusing on resonant AC withstand voltage testing. This article is optimized for professionals in the electrical industry, engineers, and overseas clients seeking high-quality testing equipment.

What is Resonant AC Withstand Voltage Testing?

Resonant AC withstand voltage testing is a method used to determine the electrical strength and insulation capabilities of power equipment. By applying a high-frequency AC voltage, this testing simulates real operational conditions, helping to identify potential failures and weaknesses in transformers, cables, and other electrical systems. This testing method is widely used in power stations, substation equipment, and cable testing.

Key Benefits of Resonant AC Withstand Voltage Testing

1. Accurate Results: Ensures the reliability of electrical equipment by simulating real-world conditions.

2. Safety: Identifies weaknesses in insulation that could lead to potential failures.

3. Prevents Downtime: Helps prevent unexpected failures in electrical systems by detecting faults early.

Key Considerations When Choosing a Resonant AC Withstand Voltage Test Device

1. Voltage Rating and Power Capacity

The voltage rating and power capacity of the device are essential when choosing the right equipment for your electrical testing. The test device should match the voltage and current requirements of the equipment being tested. For example, resonant test devices suitable for substation equipment and cables range from 135kVA/108kV to 8100kVA/500kV, covering a wide range of voltage and power needs.

2. Protection Features

Safety is a top priority during electrical testing. Look for devices that offer comprehensive protection features to prevent accidents during testing. A reliable resonant AC withstand voltage test device should include:

• Over-voltage Protection

• Over-current Protection

• Zero Position Start

• System Desynchronization (Flashover) Protection

These safety features ensure that the device operates within safe parameters and reduces the risk of damage during testing.

3. Portability and Ease of Use

For fieldwork, the portability of the test device is essential. Lightweight construction ensures that the device can be easily transported and set up at testing sites. Additionally, devices with automatic tuning and manual voltage control modes provide flexibility and ease of use in various conditions. The low weight of the device ensures smooth handling and setup in different locations.

4. Data Storage and Remote Printing Capabilities

The ability to store and print test results is another important factor when selecting a resonant AC withstand voltage test device. Devices with data storage capabilities allow users to save and later access test results, while remote printing options help generate reports for clients or documentation purposes.

5. Adjustable Frequency and DSP Platform

Devices featuring adjustable frequency settings and a Digital Signal Processing (DSP) platform provide advanced functionality, such as customizable frequency range and automatic frequency sweep. These features allow users to set the frequency start point within the specified range, ensuring flexibility in testing requirements. Additionally, the DSP technology enables easy software upgrades and better user interface interaction.

Recommended Products from Wuhan Musen Electric Co., Ltd.

AC Resonance Test System – musenelectric.com

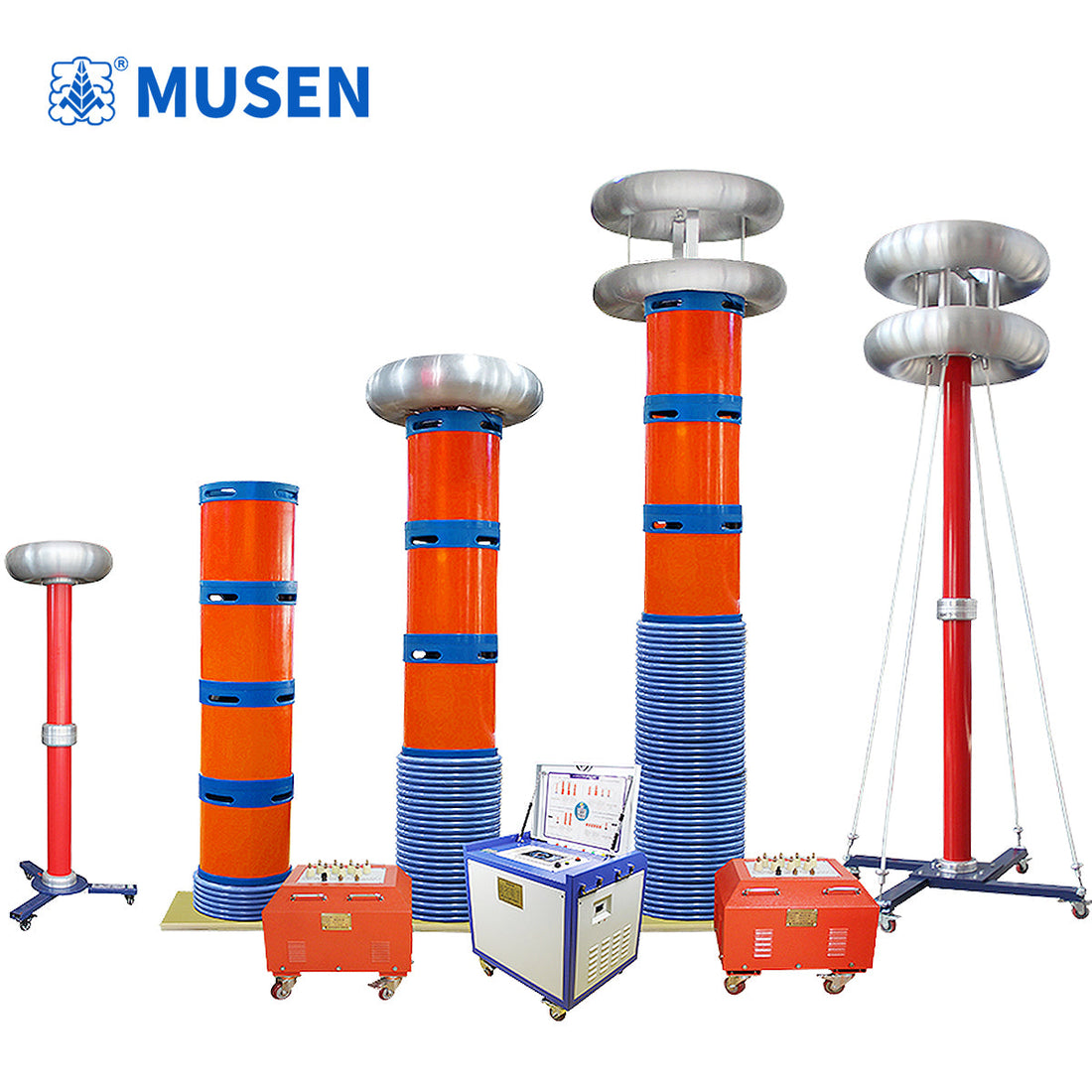

At Wuhan Musen Electric Co., Ltd., we offer a range of high-performance resonant AC withstand voltage test devices designed to meet the needs of electrical power testing. Our devices are suitable for a wide range of applications, from testing transformers and switchgear to high-voltage cables. Some of our popular models include:

• 135kVA/108kV

• 108kVA/108kV

• 270kVA/270kV

• 540kVA/270kV

• 1620kVA/540kV

• 8100kVA/500kV

Key Features of Musen Electric Test Devices

1. Comprehensive Protection: Includes over-voltage, over-current, and system desynchronization protection features for safe operation.

2. Portability: Lightweight design makes it ideal for use in field testing.

3. Multiple Operating Modes: Offers full automation, manual, and automatic tuning modes for flexible testing.

4. Data Storage: Stores test results with unique numeric identifiers, enabling easy access and retrieval.

5. Adjustable Frequency: The frequency start point can be set within a predefined range, with automatic frequency scanning available.

6. User-Friendly Interface: DSP platform provides a customizable user interface and supports software upgrades.

For more information, visit our official website.

Conclusion: Choosing the Right Test Device for Your Needs

Selecting the correct resonant AC withstand voltage test device is essential to ensure the safety and performance of electrical equipment. By considering factors such as voltage rating, protection features, portability, and data storage capabilities, you can choose the right device for your testing needs. At Wuhan Musen Electric Co., Ltd., we offer a wide range of reliable and feature-packed testing solutions to meet the demands of the electrical industry.
