How to Choose the Right Resonance Test System? A Must-Have Guide for Power Equipment Testing

Selecting the right resonance test system is crucial for electrical engineers and technicians involved in power equipment testing. The resonance test system plays a vital role in ensuring the safety, reliability, and performance of high-voltage equipment such as transformers, circuit breakers, and cables. But with a wide range of options available in the market, how do you choose the right one? This article provides a comprehensive guide on what to look for when selecting a resonance test system for your power equipment testing needs.

What Is a Resonance Test System?

A resonance test system is an essential tool for testing high-voltage equipment by generating resonance conditions to simulate real-world operating scenarios. It allows precise control of voltage and current, ensuring that the equipment under test is subjected to realistic stress without any damage. These systems are widely used to test components like transformers, high-voltage cables, and circuit breakers, providing essential insights into their durability and safety.

Factors to Consider When Choosing the Right Resonance Test System

1. Safety Features
   The safety of operators and equipment is the foremost concern when selecting any testing system. A reliable resonance test system should come equipped with multiple built-in safety features such as overvoltage protection, overcurrent protection, and zero-position startup protection. Additionally, a detuning mechanism (also known as flashover protection) should be included to prevent damage during tests. These safety measures ensure that both the testing process and the equipment under test are protected from hazardous situations.

2. Portability and Ease of Setup
   For field testing, portability is a critical factor. Traditional high-voltage testing equipment is often heavy and cumbersome, making it difficult to move and set up in remote locations. In contrast, modern resonance test systems are designed to be lightweight and portable, allowing technicians to easily transport and deploy the equipment on-site. When choosing a test system, look for one that offers quick setup capabilities and a user-friendly interface for ease of operation.

3. Versatility in Testing Modes
   The best resonance test system should offer multiple operating modes to accommodate different testing needs. These typically include fully automatic, manual, and manual tuning with automatic voltage ramping modes. Flexible testing modes allow operators to customize the testing process according to the type of equipment being tested, making the system more adaptable and efficient in handling various test scenarios.

4. Data Storage and Management
   Effective data storage and management are essential for keeping track of test results and ensuring compliance with industry standards. The resonance test system should offer reliable data storage capabilities, with test results stored automatically under numerical identifiers. The ability to print results remotely and easily retrieve past test data can save time and improve the efficiency of the testing process. This feature is particularly valuable for large-scale projects where managing vast amounts of data is necessary.

5. Accuracy and Precision
   High test accuracy is vital for evaluating the performance of electrical equipment. A resonance test system should offer precise control over the test frequency and voltage. Systems that allow the operator to adjust the starting frequency within a specified range provide more flexibility in testing various types of equipment. Additionally, the ability to automatically scan frequencies can optimize the test process and ensure more accurate and consistent results.

6. Technological Features and Upgradability
   A modern resonance test system should incorporate advanced technologies such as DSP (Digital Signal Processing) to enhance the accuracy and efficiency of tests. Furthermore, ensure that the system can be easily upgraded to incorporate new features or accommodate future technological developments. This future-proof capability allows your test system to stay relevant as industry standards evolve.

Why Is Choosing the Right Resonance Test System Essential for Power Equipment Testing?

Selecting the right resonance test system directly affects the accuracy, safety, and efficiency of the testing process. A well-chosen system will help you conduct precise tests, ensure compliance with industry standards, and reduce the risk of equipment failure in real-world conditions. Additionally, the right system can save valuable time and resources, making it a critical investment for any electrical engineer or technician working with high-voltage equipment.

Improved Testing Accuracy

By providing precise control over test conditions, a high-quality resonance test system ensures that the equipment is tested under realistic scenarios. This leads to more reliable test results, which are crucial for making informed decisions regarding the safety and performance of the equipment.

Increased Testing Efficiency

Automated functions such as frequency scanning, voltage adjustments, and data storage significantly speed up the testing process. A system that eliminates the need for constant manual adjustments can save hours of work, allowing engineers to focus on other critical tasks.

How to Choose the Best Resonance Test System for Your Needs?

Choosing the right resonance test system is an important decision that should not be taken lightly. Prioritize safety features, portability, accuracy, and flexibility to ensure that the system meets your testing needs. Consider systems that offer advanced data management capabilities, precise frequency control, and technological upgradability to ensure long-term performance.

Investing in the right resonance test system guarantees more accurate results, enhanced safety, and improved efficiency in power equipment testing. Whether you are testing transformers, circuit breakers, or cables, selecting the best system will ensure that your testing processes are streamlined and effective.

Product Overview: Key Features of the Resonance Test System

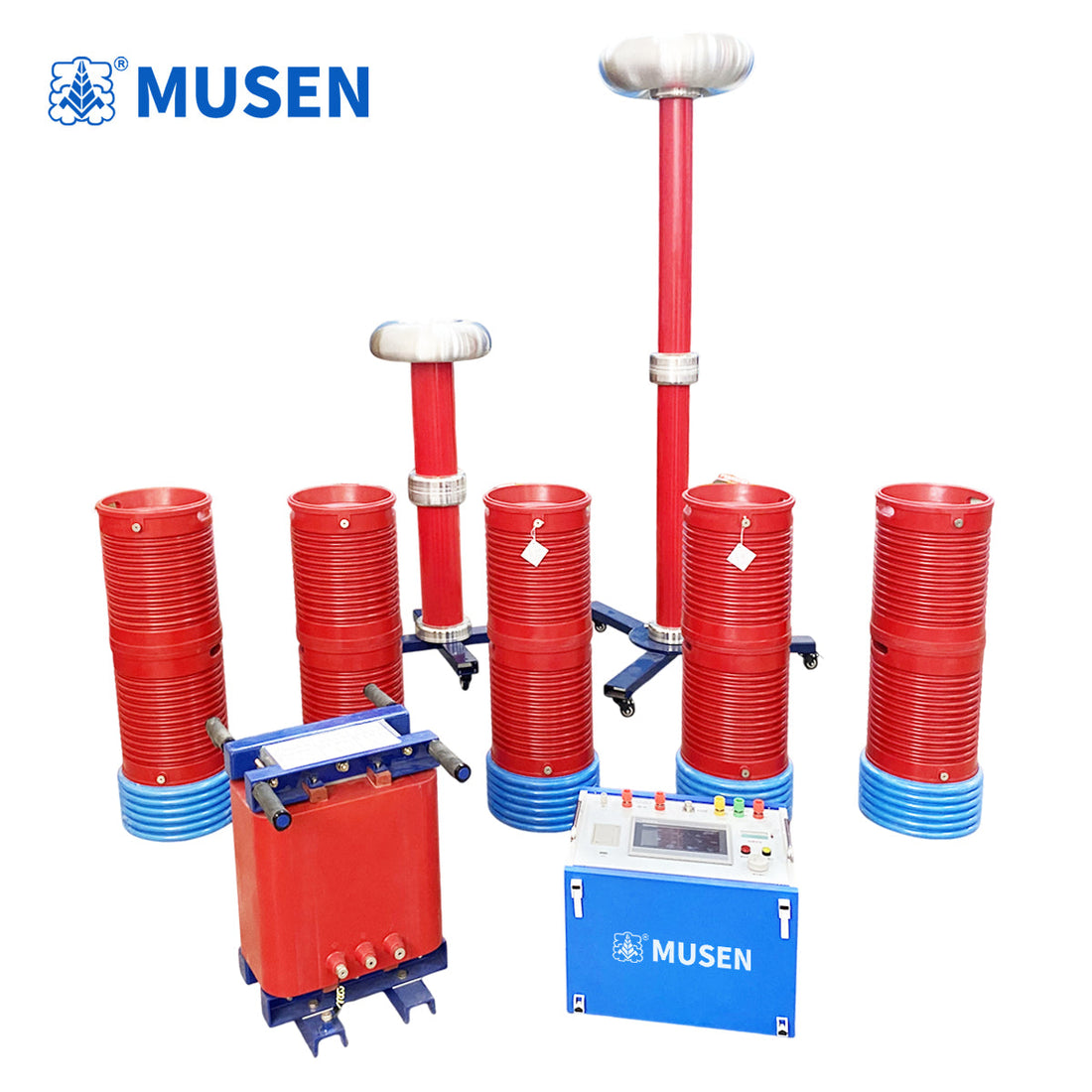

The Resonance Test System from Wuhan Musen Electric Co., Ltd. is designed to offer top-tier performance and safety in high-voltage equipment testing. Some of the key features of this system include:

1. Comprehensive Safety Mechanisms – Overvoltage, overcurrent, zero-position startup, and detuning protection to ensure safe testing.

2. Portable and Lightweight – Easy to transport and set up for field applications.

3. Multiple Testing Modes – Fully automatic, manual, and manual tuning with automatic voltage ramping modes to accommodate various testing needs.

4. Efficient Data Management – Automatic data storage with numerical identifiers and remote printing capabilities for easy access and reporting.

5. Precise Frequency Control – Adjustable starting frequency and automatic frequency scanning for optimal testing conditions.

6. Advanced DSP Technology – Enhanced accuracy, efficiency, and upgradability to ensure long-term usability.

For more information on the Resonance Test System, visit Wuhan Musen Electric Co., Ltd..

The Resonance Test System from Wuhan Musen Electric Co., Ltd. is designed to meet the highest standards of power equipment testing. With its advanced features and versatile functionalities, it provides engineers with a reliable and efficient solution for testing high-voltage electrical equipment.
