How to Choose the Right Portable GIS Partial Discharge Monitoring System?

In high-voltage substations worldwide, Gas-Insulated Switchgear (GIS) plays a critical role in ensuring system reliability. However, insulation defects and partial discharge (PD) activity remain key risk factors for unexpected outages. Selecting a Portable GIS Partial Discharge Monitoring System is therefore a strategic investment for power utilities, EPC contractors, and industrial plant operators.

This article explains how to evaluate and select the most suitable system, aligned with international engineering practices and asset management standards.

Why Is Partial Discharge Detection in GIS So Critical?

Partial discharge inside GIS equipment often indicates insulation deterioration, floating particles, or manufacturing defects. If not detected early, it may lead to catastrophic insulation failure.

Key reasons utilities prioritize PD monitoring:

• Prevent unplanned outages

• Reduce maintenance costs

• Extend equipment lifecycle

• Improve asset reliability index (SAIDI / SAIFI)

For overseas utilities operating under IEC standards, portable monitoring solutions are particularly valuable for periodic inspection and commissioning testing.

What Key Technical Parameters Should You Evaluate?

When selecting a Portable GIS Partial Discharge Monitoring System, technical performance must be assessed carefully.

1. Detection Methods Compatibility

• UHF (Ultra High Frequency)

• Ultrasonic detection

• Transient Earth Voltage (TEV)

Multi-mode detection improves diagnostic accuracy.

2. Sensitivity and Frequency Range
Ensure wide frequency bandwidth and high sensitivity for early-stage defect identification.

3. Anti-Interference Capability
Substations are electromagnetically noisy environments. Advanced signal filtering and intelligent noise suppression are essential.

4. Data Analysis and Reporting Software
Modern systems should provide:

• Real-time waveform analysis

• Phase-resolved PD patterns (PRPD)

• Automated report generation

How Important Is Portability for Field Engineers?

Portability is more than lightweight design. For field engineers working across multiple substations:

• Compact structure for easy transportation

• Battery-powered operation

• Rugged industrial casing

• Fast sensor installation

A truly portable system reduces inspection time and increases operational efficiency, especially for remote substations or offshore facilities.

What Compliance and International Standards Should Be Considered?

For overseas projects, compliance with global standards is mandatory:

• IEC 60270

• IEEE insulation diagnostic guidelines

• Utility-specific technical specifications

Choosing equipment designed for international markets ensures smoother project approval and technical acceptance.

Why Should You Evaluate Manufacturer Expertise?

Beyond hardware, supplier capability matters:

• Years of experience in high-voltage testing

• In-house R&D team

• After-sales technical support

• Calibration and training services

A reliable manufacturer provides long-term technical partnership, not just equipment delivery.

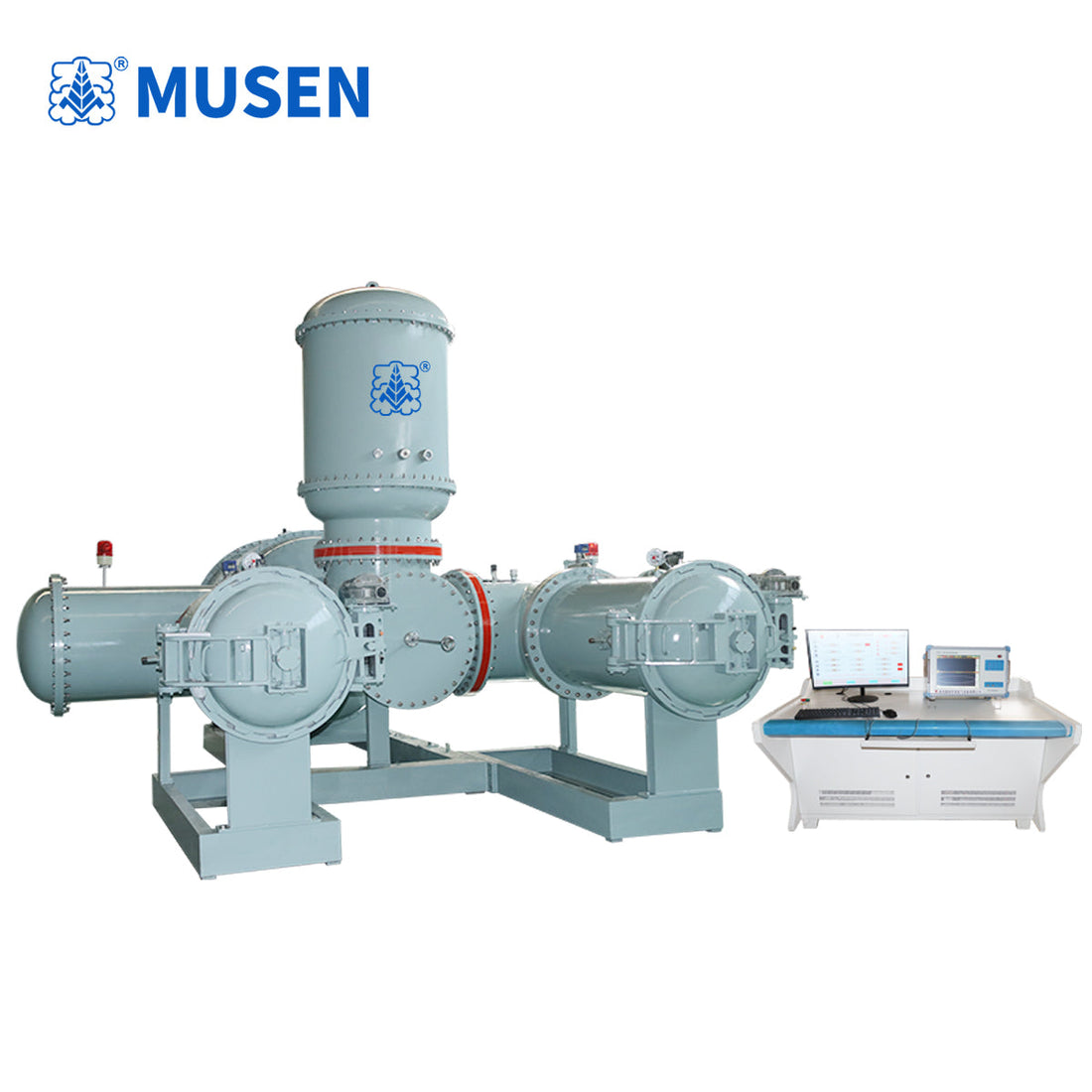

Product Overview: Portable GIS Partial Discharge Monitoring System

The Portable GIS Partial Discharge Monitoring System from Wuhan Musen Electric Co., Ltd. (Website: https://musenelectric.com/) is engineered specifically for global power utilities and industrial users.

Key Advantages

• 1. High-voltage, fully sealed within a shielded space, ensuring safe and reliable testing.
  2. Overall partial discharge can be controlled within 1-3 pc.

  3. Compact size, utilizing minimal space; lightweight components.

  4. Built-in high-voltage isolating switch, enabling multi-purpose use.

  5. Easy connection; direct connection to the test sample makes testing more convenient.

  6. Robust and durable structure capable of withstanding long-distance transportation.

  7. Reduced system power capacity requirements.

Choosing the right Portable GIS Partial Discharge Monitoring System is not simply a purchasing decision—it is a long-term asset protection strategy. By evaluating detection capability, portability, compliance, and supplier expertise, utilities can ensure safe, stable, and cost-effective GIS operation.
