How to Choose the Right High Voltage Resonance Test System for Power Equipment Testing?

Selecting the right High Voltage Resonance Test System is crucial for ensuring the reliability and safety of electrical equipment. With the advancements in technology, there are numerous testing systems available in the market, each with its own set of features and benefits. However, choosing the most suitable one for your specific requirements can be a challenge. In this article, we will provide you with a comprehensive guide on how to choose the best High Voltage Resonance Test System for power equipment testing, taking into account key factors such as safety, portability, accuracy, and ease of use.

What Is a High Voltage Resonance Test System?

The High Voltage Resonance Test System is designed to test high-voltage equipment, such as transformers, circuit breakers, and cables, by generating a resonant AC voltage. This advanced system provides precise control over the test conditions, ensuring that equipment is subjected to real-world stress without damage. The resonance technology allows for accurate and reliable testing of power equipment, making it an essential tool for electrical engineers and technicians.

Factors to Consider When Choosing a High Voltage Resonance Test System

1. Safety Features
   Safety is a top priority when working with high-voltage testing systems. The High Voltage Resonance Test System must come equipped with essential protection features such as overvoltage, overcurrent, and zero-position startup protections. Additionally, look for a system with a detuning mechanism (flashover protection), which helps prevent equipment failure during tests. These safety mechanisms safeguard both the test equipment and the operators from potential hazards.

2. Portability and Ease of Use
   Traditional high-voltage test equipment can be heavy and cumbersome, making it difficult to move and set up on-site. For field testing, portability becomes crucial. The High Voltage Resonance Test System should be lightweight and easy to transport, allowing technicians to use it in various locations with minimal effort. Look for systems that offer quick setup and user-friendly interfaces to reduce the time spent on preparation and operation.

3. Flexibility in Testing Modes
   A versatile High Voltage Resonance Test System offers multiple operating modes to accommodate different testing requirements. These modes often include fully automatic, manual, and manual tuning with automatic voltage ramping options. Choose a system that provides flexibility in operation, as this will allow you to adjust the test parameters based on the specific needs of the equipment being tested. Flexibility ensures that the system can handle various test scenarios efficiently.

4. Data Management Capabilities
   In today’s digital age, having robust data storage and management capabilities is a must. The High Voltage Resonance Test System should be able to store test results and allow for easy access and retrieval. Look for systems that assign numerical identifiers to each test dataset, making it easier to organize and find past results. Additionally, consider a system that allows for remote printing of results, enabling seamless reporting and documentation.

5. Frequency Control and Test Accuracy
   Accurate frequency control is vital for high-voltage testing, especially when dealing with sensitive power equipment. The High Voltage Resonance Test System should offer the ability to adjust the starting frequency within a specified range to optimize test conditions. The system should also provide automatic frequency sweeping capabilities, which can improve testing efficiency and ensure the results are as precise as possible.

6. Technological Upgradability
   The technology used in the High Voltage Resonance Test System should be scalable and upgradable to meet future demands. A system that incorporates DSP (Digital Signal Processing) technology is ideal, as it allows for easy software updates and functional upgrades. This ensures that your testing equipment remains relevant and capable of handling new testing protocols or evolving standards over time.

Why Is Choosing the Right High Voltage Resonance Test System Important?

Choosing the right High Voltage Resonance Test System can have a significant impact on the efficiency, safety, and accuracy of your power equipment testing. A well-chosen system ensures that you can complete tests faster, more accurately, and with greater confidence in the results. Moreover, it minimizes the risk of equipment failure during testing, which can lead to costly repairs or replacements.

Ensuring Accurate and Reliable Test Results

The main goal of any test system is to provide accurate and reliable results. A high-quality High Voltage Resonance Test System with precise frequency control and automated functions guarantees that tests are conducted under optimal conditions. With more accurate test results, you can make informed decisions about the performance and safety of your electrical equipment.

Saving Time and Reducing Costs

Efficient testing saves both time and money. The High Voltage Resonance Test System reduces the need for constant manual adjustments, as it automates many aspects of the testing process. Additionally, with the ability to store data and generate reports quickly, you can streamline your testing process, saving both time and resources on every project.

 How to Choose the Best High Voltage Resonance Test System for Your Needs?

When selecting a High Voltage Resonance Test System, prioritize safety, portability, flexibility, and accuracy. A system with advanced protection features, versatile operating modes, and precise frequency control will ensure safe and reliable testing. Additionally, consider systems with robust data management capabilities and the ability to upgrade as technology evolves.

For power equipment testing, the High Voltage Resonance Test System offers clear advantages over traditional testing methods. By choosing the right system, you can achieve more efficient, accurate, and safer test results, making it an indispensable tool for electrical engineers and technicians.

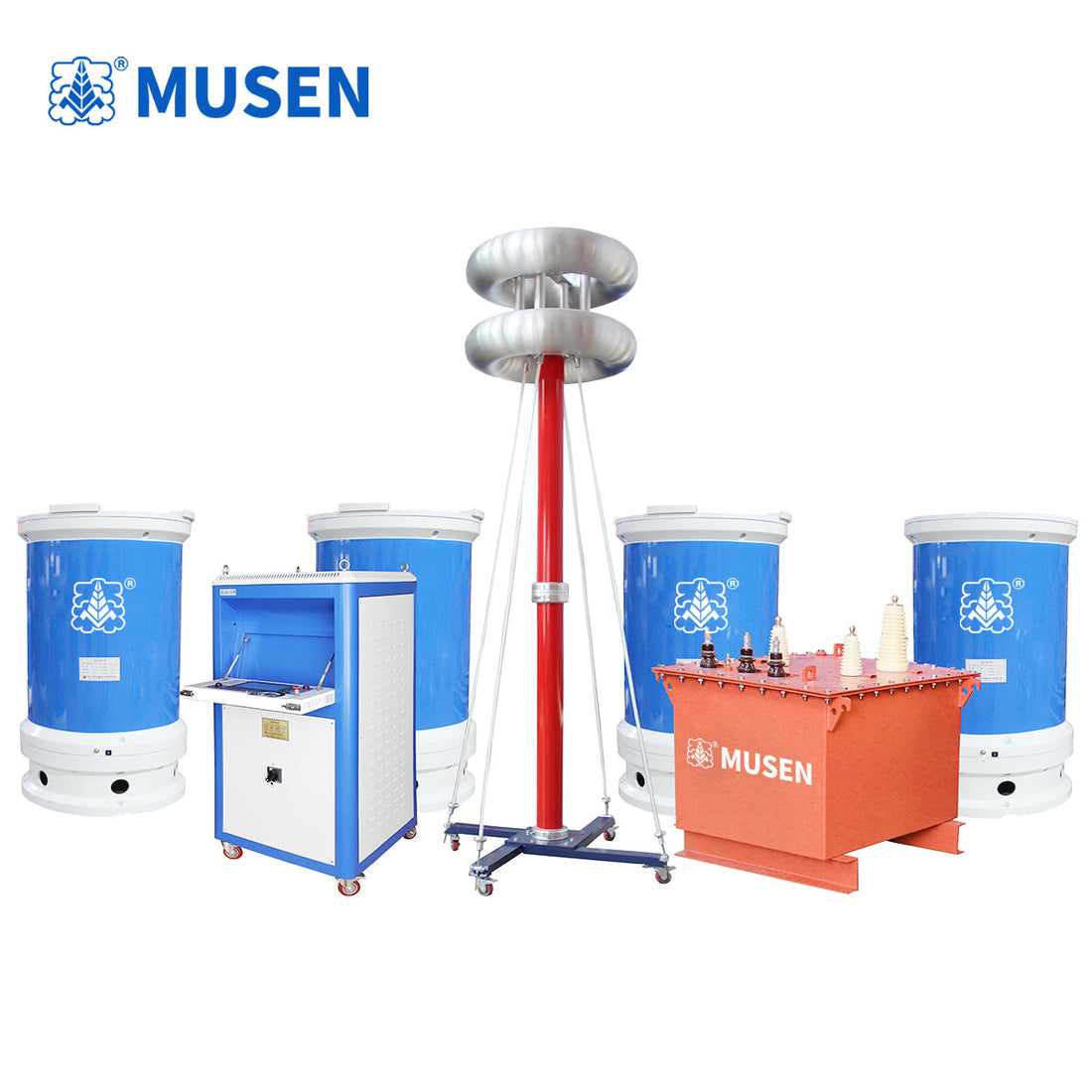

Product Overview: Key Features of the High Voltage Resonance Test System

The High Voltage Resonance Test System from Wuhan Musen Electric Co., Ltd. is designed to meet the high standards of modern electrical testing. Key features of this system include:

1. Comprehensive Protection Mechanisms – Includes overvoltage, overcurrent, zero-position startup, and detuning protection for safety.

2. Lightweight and Portable – Easy to transport and deploy in the field, ensuring quick and efficient setup.

3. Flexible Operating Modes – Offers fully automatic, manual, and manual tuning with automatic voltage ramping modes.

4. Efficient Data Management – Automatically stores test results with numerical identifiers and supports remote printing of results.

5. Adjustable Frequency Control – Provides flexible frequency settings and automatic frequency scanning for optimized testing conditions.

6. User-Friendly Interface with DSP Technology – Features an intuitive interface and upgradeable technology for future-proofing.

For more information on the High Voltage Resonance Test System, visit Wuhan Musen Electric Co., Ltd..

The High Voltage Resonance Test System from Wuhan Musen Electric Co., Ltd. is designed to offer superior performance and safety in high-voltage power equipment testing. With its advanced features and customizable options, it provides electrical engineers with the tools they need for accurate, efficient, and safe testing.
