How to Choose the Right AC Withstand Voltage Tester for Power Equipment Testing?

In overseas power engineering projects, selecting the correct AC withstand voltage tester directly impacts commissioning quality, compliance, and long-term asset reliability. Utilities, EPC contractors, and industrial plants must ensure that high-voltage equipment passes insulation strength verification before energization.

This guide explains how to select the appropriate system based on technical parameters, site conditions, and data management requirements. It is prepared by Wuhan Musen Electric Co., Ltd.  to help global clients make informed procurement decisions.

 Why Is AC Withstand Testing Critical for Power Equipment?

AC withstand testing verifies insulation integrity under overvoltage conditions and is widely required for:

• Power transformers

• GIS switchgear

• Power cables

• Circuit breakers

• Generators and motors

International standards such as IEC and IEEE mandate AC testing during factory acceptance testing (FAT) and site acceptance testing (SAT). For overseas projects, proper equipment selection ensures compliance and reduces rework risk.

What Key Technical Parameters Should You Evaluate?

When choosing an AC withstand voltage tester, focus on these technical indicators:

1. Rated Output Voltage and Capacity
Select according to the maximum test voltage and load capacity of the equipment under test.

2. Frequency Range and Stability
Variable frequency capability is essential for large-capacity equipment testing, especially long cables and GIS systems.

3. Protection Functions
A reliable system must include:

• Overvoltage protection

• Overcurrent protection

• Zero-start protection

• System detuning (flashover) protection

These protections improve operator safety and equipment reliability.

How Important Is Portability for Field Testing?

For overseas substations and renewable energy sites, transportation and on-site mobility are critical.

Modern AC test systems should:

• Be modular in design

• Have lightweight single components

• Be easy to assemble in confined switchyards

Lightweight construction significantly reduces installation time and manpower requirements, especially in remote projects.

Which Operating Modes Improve Testing Efficiency?

A professional AC withstand voltage tester should support multiple operating modes:

• Full automatic mode

• Manual mode

• Automatic tuning with manual voltage rise mode

These modes allow flexibility for commissioning engineers and laboratory technicians. Automatic tuning enhances efficiency, while manual control provides fine adjustment during complex testing conditions.

### Why Does Data Storage and Traceability Matter?

For utilities and international contractors, documentation is mandatory.

Advanced systems should provide:

• Data storage capability

• Digital numbering for easy identification

• Remote data printing

• Clear report generation

Digital traceability simplifies project acceptance and future maintenance audits.

How Does DSP Technology Enhance System Performance?

Modern systems built on DSP platforms offer:

• Flexible function expansion

• Software-based feature upgrades

• Customizable configurations

• User-friendly human-machine interface

Additionally, during automatic frequency sweep, the frequency starting point can be set within a defined range, improving resonance matching accuracy.

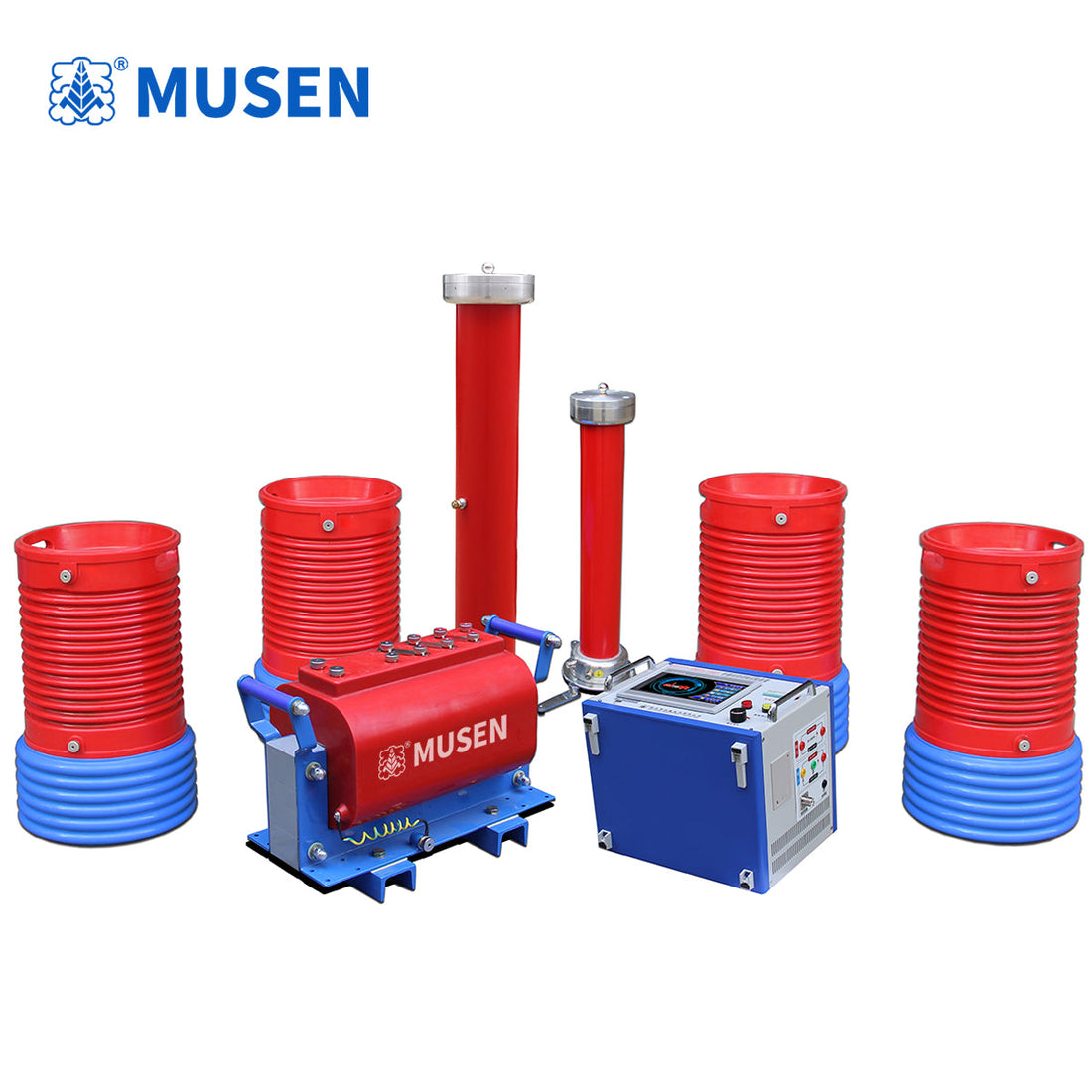

Product Overview – AC Withstand Voltage Tester from Wuhan Musen Electric Co., Ltd.

The AC Withstand Voltage Tester from  Wuhan Musen Electric Co., Ltd. (https://musenelectric.com/) is engineered for international power engineering applications.

Core Advantages:

1. Comprehensive protection system including overvoltage, overcurrent, zero-start, and flashover protection.

2. Lightweight modular design for easy field deployment.

3. Multiple operation modes: full automatic, manual, and auto-tuning with manual voltage rise.

4. Data storage and remote printing with numeric indexing for efficient record management.

5. Adjustable frequency start point during automatic sweep for precise resonance control.

6. Advanced DSP platform enabling feature expansion, upgrades, and improved HMI experience.

These features make the system suitable for substations, cable testing projects, renewable

Choosing the right AC withstand voltage tester requires evaluating voltage capacity, frequency control, safety protections, portability, operating flexibility, and data management capabilities.

For overseas power utilities and EPC contractors seeking reliable, field-ready solutions,  Wuhan Musen Electric Co., Ltd. provides professionally engineered testing systems designed for performance, safety, and long-term service support.

Visit the official website: https://musenelectric.com/ to explore detailed specifications and technical support options.
