How to Choose the Right AC DC Hipot Tester for High-Voltage Compliance?

Keywords: AC DC Hipot Tester, High Voltage Test Transformer, Dielectric Strength Testing, Wuhan Musen Electric, Electrical Insulation Safety

In the global power infrastructure sector, the integrity of high-voltage assets is non-negotiable. For international electrical engineers and procurement managers at utility companies or industrial plants, the AC DC Hipot Tester serves as the primary defense against insulation failure. As systems age or operate under extreme environmental stress, verifying dielectric strength through standardized testing protocols is the only way to prevent catastrophic outages and ensure personnel safety. This guide examines the technical necessity and selection criteria for modern withstand voltage equipment.

1. Why is Dielectric Strength Verification Mandatory for Power Systems?

Every electrical component has a specific dielectric limit. When this limit is exceeded, insulation breaks down, leading to arcing and equipment destruction. Utilizing a professional AC DC Hipot Tester allows engineers to apply a controlled overvoltage to identify weak points caused by moisture, physical damage, or thermal degradation. By adhering to IEC and IEEE standards, facilities can transition from reactive repairs to a proactive asset management strategy, significantly extending the lifecycle of switchgear and rotating machinery.

2. Comparing Oil-Filled, Dry-Type, and Gas-Insulated Test Transformers

Selecting the right insulation medium for your test transformer is a data-driven decision based on your operational environment.

• Oil-Immersed (YDJZ): Offers superior cooling and a long service life; preferred for fixed laboratory setups.

• Dry-Type (GTB): Maintenance-free and epoxy-cast; ideal for cleanroom environments or fire-sensitive indoor installations.

• Gas-Filled (YDQ): Utilizes SF6 gas for insulation. These units are approximately 20-30% lighter than oil-filled counterparts, making them the gold standard for field technicians working in high-altitude or remote substations.

3. Strategic Advantages of Integrated High-Voltage Control Systems

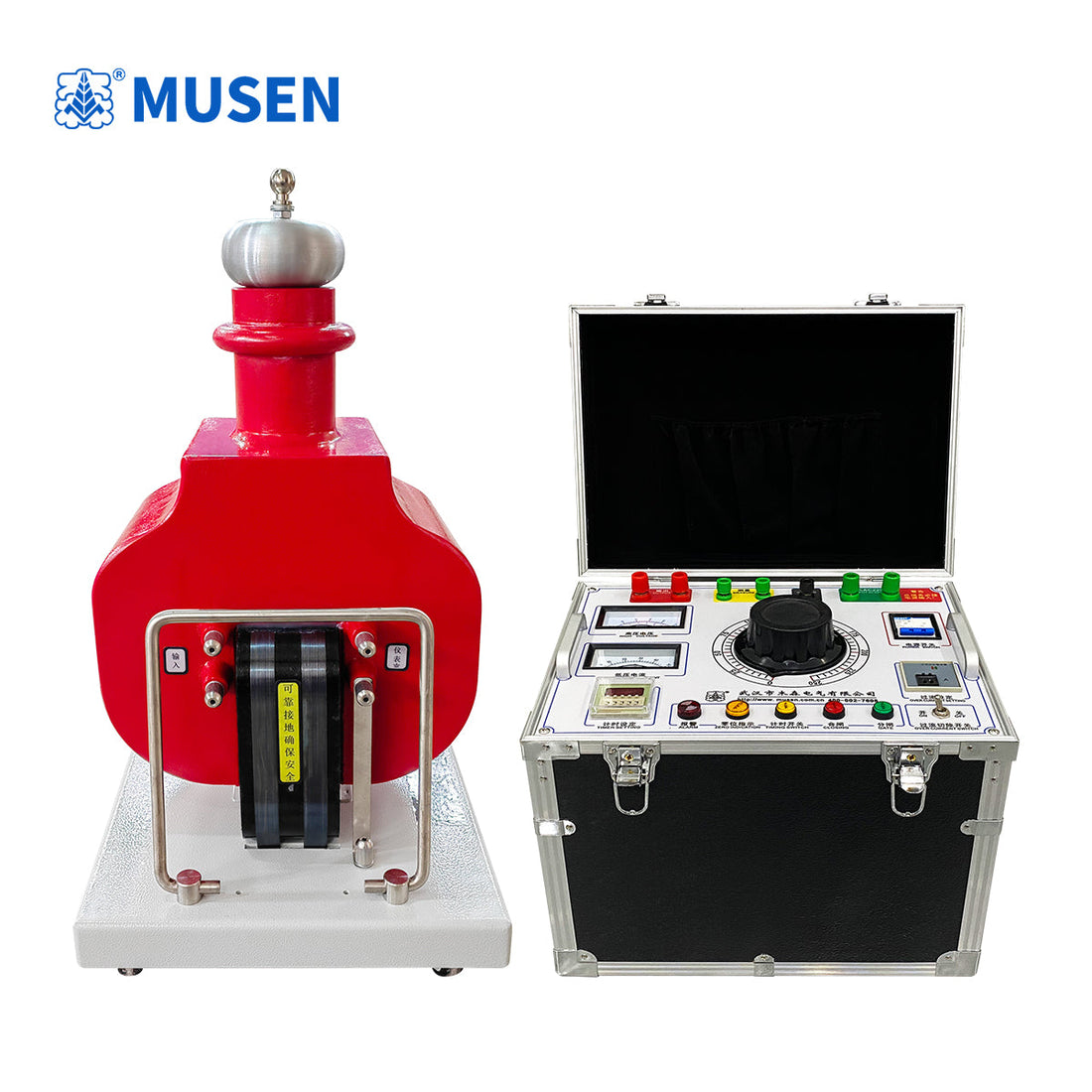

Modern testing requires more than just raw power; it requires precision and safety. The High Voltage Test Transformer manufactured by Wuhan Musen Electric (www.musenelectric.com) integrates modular control units that provide:

• Safety Interlocks: Zero-start protection prevents accidental high-voltage discharge.

• Data Accuracy: Simultaneous monitoring of leakage current and voltage levels with high-precision digital displays.

• Portability: Compact footprints designed for easy transport between job sites without compromising the 50kV to 150kV output range required for industrial-grade assessments.

4. Technical Specifications: YDJZ YDQ GTB Series Overview

For technical procurement teams, the following performance data highlights the versatility of our core testing lineup:

• Multi-Functional Capability: A single AC DC Hipot Tester unit handles power frequency withstand, DC withstand, and leakage current testing.

• Customizable Capacity: Power ratings from 1.5kVA up to 300kVA accommodate both small components and large-scale power apparatus.

• Protection Suite: Comprehensive shielding against over-current and over-voltage scenarios with integrated audible and visual alarms.

• Application Versatility: Specifically engineered for testing cables, transformers, GIS systems, and insulating materials under rigorous conditions.

5. Conclusion: Maximizing ROI through Reliable Testing Equipment

Investing in high-quality testing instruments is a strategic move for any power engineering firm. By selecting a robust AC DC Hipot Tester from a reputable manufacturer like Wuhan Musen Electric, companies reduce the risk of unplanned downtime and ensure compliance with international safety regulations. Reliable data leads to better decision-making, ensuring that the global electrical grid remains resilient and efficient.

Commonly Asked Questions (FAQ)

1. How often should high-voltage equipment undergo Hipot testing?

Routine maintenance schedules typically require testing once a year or following any significant repair work. However, in high-humidity or high-pollution environments, semi-annual testing is recommended to track insulation degradation trends.

2. Can I use an AC tester on a DC-rated component?

Generally, yes, but the test voltage must be adjusted to account for the peak voltage of the AC waveform. Consult the manufacturer’s specifications at www.musenelectric.com for specific conversion factors to ensure the test remains non-destructive.

3. What is the benefit of the modular design in the YDJZ series?

The modular approach allows the control box and the transformer to be separated. This improves portability for field teams and allows for easier upgrades or servicing of individual components without replacing the entire system.

4. Are these testers compliant with international shipping standards?

Yes, our equipment is packaged and certified for international transit, ensuring that global clients in power engineering receive calibrated and ready-to-use instruments regardless of their location.
