How to Choose the Right Hipot Tester for Power Equipment Testing?

When it comes to testing power equipment, ensuring proper insulation and safety is crucial. A hipot tester (high potential tester) plays a pivotal role in evaluating the insulation strength of electrical equipment under high voltage conditions. However, with various types of testers available, how do you determine which one is best suited for your needs? In this article, we’ll guide you through the essential factors to consider when selecting a hipot tester to ensure accurate and reliable results for your power equipment testing.

1. How to Determine Testing Requirements Based on Equipment Type?

Selecting the Right Hipot Tester for Different Equipment
The first step in choosing a hipot tester is understanding the type of equipment you will be testing. Different electrical devices—such as transformers, cables, motors, and switchgear—require specific testing parameters. An AC/DC hipot tester is versatile, capable of testing both alternating current (AC) and direct current (DC) insulation strength, making it suitable for various power equipment. For example, testing transformers or high-voltage cables will require a tester with a broader voltage range and both AC and DC capabilities to meet specific testing needs.

2. How to Ensure the Safety and Reliability of the Hipot Tester?

Key Safety Features in Hipot Testers
Safety is a top priority when selecting any high voltage test equipment. A hipot tester must meet international safety standards such as IEC or UL certifications to ensure it operates safely in diverse environments. Safety features such as overload protection, short-circuit protection, and zero-start function are critical in preventing equipment damage or accidents during testing. Additionally, a reliable tester will include visual and audible alarms to alert the operator of any faults or anomalies during the test.

3. What Are the Essential Technical Specifications for a Hipot Tester?

Evaluating the Performance and Accuracy of Hipot Testers
When selecting a hipot tester, technical performance is vital to ensure accurate test results. Key specifications to evaluate include the tester’s voltage output range, measurement accuracy, and stability. A high-quality hipot tester should provide stable voltage output and precise measurement capabilities, crucial for determining the insulation strength of power equipment. For critical testing applications, such as large transformers or high-voltage cables, ensure that the tester offers high-precision sensors to guarantee reliable results. The ability to withstand high current levels and provide a consistent voltage output is also important for ensuring the tester's long-term reliability.

4. How to Choose the Right Brand and Model of Hipot Tester?

Selecting the Best Brand and Model for Your Needs
Choosing a reputable brand and model is essential for reliable and long-lasting performance. Wuhan Musen Electric Co., Ltd. (Musen Electric) offers a wide range of hipot testers, including the MSYDJZ(Q) series, designed for both AC and DC testing. This model is suitable for various power equipment, including transformers, cables, and electrical systems. When selecting a tester, consider the specific testing requirements of your equipment, including voltage and power capacity, as well as the type of environment in which the tester will be used. Musen Electric’s hipot testers offer excellent flexibility with features like modular design and ease of transport, making them ideal for both laboratory and field testing.

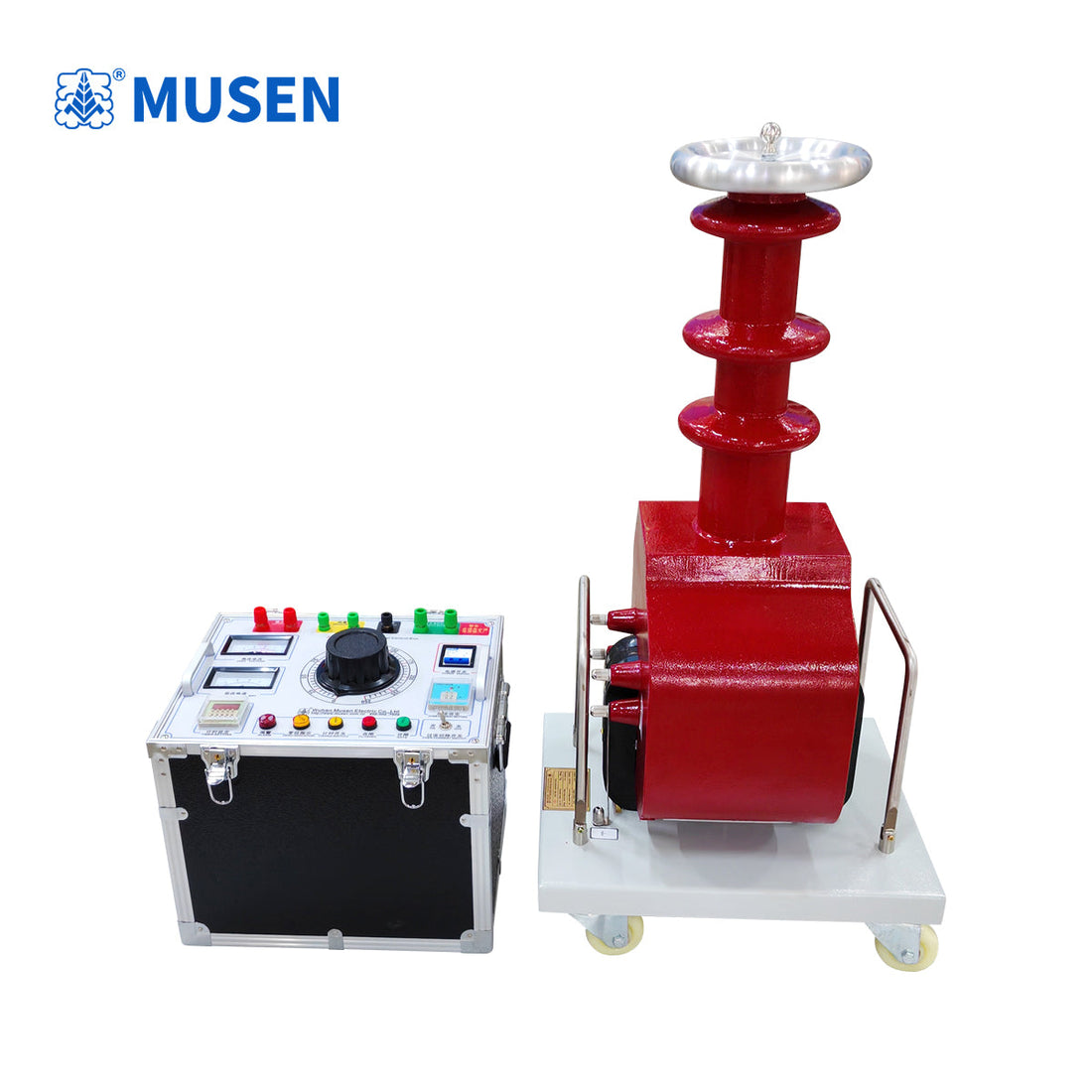

 MSYDJZ(Q) Hipot Tester – A Versatile Solution for Reliable Power Equipment Testing

Recommended Equipment: MSYDJZ(Q) Hipot Tester
For those seeking a reliable and versatile hipot tester, the MSYDJZ(Q) series from Wuhan Musen Electric Co., Ltd. offers an exceptional solution for power equipment testing. This model is designed to meet a wide range of testing needs, including:

1. Dual Use: The MSYDJZ(Q) series supports both AC and DC voltage testing, covering all major power equipment test types, such as power frequency withstand voltage, DC withstand voltage, and leakage current testing.

2. Multiple Transformer Options: Available in oil-immersed, dry-type, and gas-insulated variants, the MSYDJZ(Q) series can be used in various testing environments, including indoor, outdoor, and high-altitude locations.

3. Modular Design: The control box and test transformer can be freely combined, offering flexibility in configuration. This modular design makes it easy to upgrade, expand, and transport the equipment.

4. Wide Capacity and Voltage Range: With power capacities ranging from 1.5kVA to 300kVA and voltage options of 50kV, 100kV, and 150kV, this tester meets the requirements for both standard and high-power equipment testing.

5. Comprehensive Protection: Equipped with overcurrent, overvoltage, zero-start, and alarm functions, the MSYDJZ(Q) series ensures safe and stable operation throughout the testing process.

The MSYDJZ(Q) series offers a comprehensive, reliable solution for electrical power equipment testing. To learn more, visit Musen Electric for more information on this and other high voltage testing equipment.
