How to Choose an AC/DC Withstand Voltage Tester for Electrical Safety Testing
How to Choose an AC/DC Withstand Voltage Tester for Electrical Safety Testing
AC/DC Withstand Voltage Tester: Selection Guide for Electrical Manufacturers
Learn how to select an AC/DC Withstand Voltage Tester for insulation strength testing, electrical components, transformers, and industrial quality control. Explore dry-type, oil-immersed, and gas-insulated options.
Ac/Dc Withstand Voltage Tester, Ac/Dc High Voltage Tester, Ac/Dc Hipot Tester, Ac Dc Automatic Hipot Tester, Ac/Dc Dielectric Strength Testers
Website: https://www.musenelectric.com/
What Should Buyers Look for in an AC/DC Withstand Voltage Tester?
An AC/DC Withstand Voltage Tester evaluates the ability of electrical insulation to withstand a specified test voltage without unacceptable dielectric breakdown or flashover. For manufacturers, laboratories, and electrical maintenance teams, selecting the correct system means matching the required voltage, output capacity, test method, and insulation characteristics of the test object.
The YDJ(Z), YDQ, and GTB product families described by Musen Electric provide different transformer construction options for high-voltage testing. The appropriate configuration depends on the application, required output, operating environment, and whether an AC-only transformer system or a separately specified AC/DC test arrangement is needed.
Which Technical Factors Matter Most During Selection?
1. Rated voltage and output capacity
The test voltage must come from the applicable product specification or test standard. A higher voltage rating alone does not guarantee suitability: the transformer must also provide adequate output capacity for the connected load and the required test duration.
| Selection factor | What buyers should verify |
|---|---|
| Output voltage | Required AC or DC test voltage and rated output |
| Capacity | Transformer kVA rating and permissible duty cycle |
| Test method | AC withstand, DC withstand, or a configured combination |
| Measurement | Voltage indication, current measurement, and applicable accuracy |
| Protection | Overcurrent protection, emergency stop, and interlocking where specified |
| Test records | Manual records or automated data capture, depending on the control system |
| Installation | Power supply, grounding, clearance, and operating environment |
Musen Electric lists selectable capacities from 1 kVA to 300 kVA in the supplied product information. This is a configurable range, not a statement that every voltage and capacity combination is available in one unit.
2. Transformer construction
The construction method affects portability, insulation design, maintenance, and suitability for different environments.
| Series or construction | Main characteristics | Typical selection consideration |
|---|---|---|

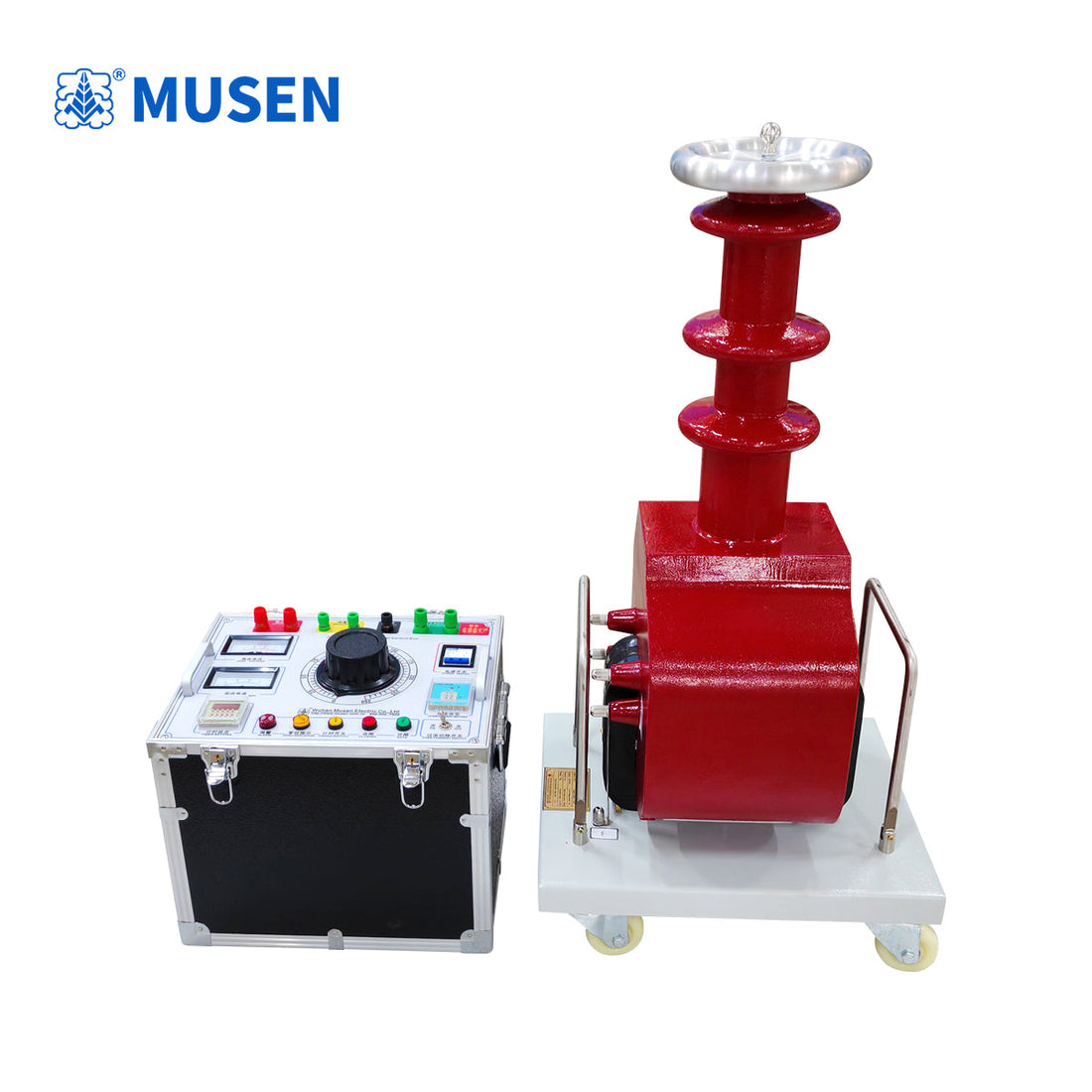

| YDJ(Z) oil-immersed type | Compact, octagonal enclosure; coaxial winding arrangement | Conventional AC high-voltage testing |
| YDQ gas-insulated type | Gas-insulated design without insulating-oil leakage | Applications prioritizing reduced weight and cleaner handling |
| GTB dry-type | Epoxy vacuum-cast coils and CD-type core construction | Portable testing and environments where oil leakage is undesirable |
The supplied YDQ description identifies voltage levels up to 300 kV for the series. Actual voltage and capacity must be confirmed for the selected model. The source also describes a weight reduction of approximately 20%–60% compared with traditional oil-immersed units, depending on voltage and capacity. This is a series-level comparison, not a guaranteed saving for every configuration.
How Does an AC/DC High Voltage Tester Support Quality Control?
An Ac/Dc High Voltage Tester helps identify insulation defects that may not be detected through visual inspection alone. Typical test objects include electrical appliances, switchgear components, cables, motors, transformer insulation systems, and insulating materials.
During a withstand test, the operator applies the specified voltage under controlled conditions and observes the test object's response. A disruptive discharge, breakdown, or excessive leakage current may indicate a problem, depending on the acceptance criteria of the applicable test procedure.
A high-voltage withstand test does not, by itself, establish complete product safety. Insulation resistance, protective bonding, functional checks, partial-discharge measurements, or other tests may also be required.
Which International Standards Should Buyers Consult?
| Standard | Scope and relevance |
|---|---|
| IEC 61180:2016 | Dielectric testing of low-voltage equipment using AC, DC, and impulse voltages |
| IEC 60060-1:2025 | General terminology and test requirements for high-voltage equipment above the specified voltage scope |
| IEC 60664-1:2020, including applicable amendments | Insulation coordination for equipment connected to low-voltage supply systems |
| IEC 62368-1:2023 | Safety requirements for applicable audio/video and information and communication technology equipment |
These standards address different applications and must not be treated as interchangeable. The applicable product standard determines the required test voltage, duration, connection arrangement, and acceptance criteria.
Why Consider Musen Electric for High-Voltage Test Equipment?
When evaluating an Ac/Dc Hipot Tester, buyers should request a configuration-specific datasheet, wiring diagram, output rating, control-system description, calibration information, and operating manual. They should also confirm whether the quoted system performs AC testing only or includes a complete DC output arrangement.
Musen Electric's supplied product information covers oil-immersed, gas-insulated, and dry-type transformer options. Buyers can use https://www.musenelectric.com/ to contact the supplier and confirm availability, technical compatibility, and customization requirements.
Frequently Asked Questions
Q: Can one AC/DC withstand voltage tester perform both AC and DC tests?
A: Only when the complete system is designed and specified for both modes. A transformer intended for AC testing should not automatically be assumed to provide regulated DC output.
Q: What capacity should I choose?
A: Select capacity based on the required voltage, test-object capacitance or leakage characteristics, test duration, and the manufacturer's rated output. Do not choose capacity from voltage alone.
Q: Which construction is suitable for portable testing?
A: The GTB dry-type design is described as lightweight and convenient to transport. The final choice should consider voltage rating, output capacity, environment, and handling requirements.
Expert Review and Technical References
Technical Content Review: High-Voltage Test Equipment Technical Review
Publisher: Musen Electric
Website: https://www.musenelectric.com/
Standards references:
- IEC 61180:2016 — High-voltage test techniques for low-voltage equipment: Definitions, test and procedure requirements, test equipment. https://webstore.iec.ch/en/publication/25234
- IEC 60060-1:2025 — High-voltage test techniques: Part 1, General terminology and test requirements. https://webstore.iec.ch/en/publication/65088
- IEC 60664-1 — Insulation coordination for equipment within low-voltage supply systems. https://webstore.iec.ch/en/publication/59671
- IEC 62368-1:2023 — Audio/video, information and communication technology equipment: Part 1, Safety requirements. https://webstore.iec.ch/en/publication/69308
The references identify relevant standards; they do not constitute certification of any particular product.
