How Do You Choose the Right VLF Hipot Tester?
A vlf hipot tester should be selected according to the cable's required test voltage, total connected capacitance, applicable procedure and operating environment. The MSVLF product data lists three output frequencies and model-dependent voltage options from 30 kV to 90 kV.
How Should You Match Rated Voltage to the Cable?
Instrument voltage rating is a selection limit, not a recommended test voltage. The required test stress depends on cable insulation, rated voltage, age, accessories, test purpose and the governing specification. Before purchasing an Ultra-Low Frequency Generator, confirm the cable type and the maximum voltage required by the approved procedure. Also verify that the selected model supports the intended load at that voltage.
| Listed voltage option | What buyers should confirm |
|---|---|
| 30 kV | Required test voltage and connected-load rating |
| 40 kV | Availability in the ordered configuration |
| 50 kV | Permitted operating range and test accessories |
| 60 kV | Rated output and applicable test procedure |
| 80 kV | Model-specific voltage and capacitance limits |
| 90 kV | Required test voltage, rated load and compatible leads |
How Does Cable Capacitance Affect Frequency?
For a sinusoidal voltage applied to an ideal capacitive load, the RMS capacitive current is calculated as I = 2πfCV, where f is frequency, C is capacitance and V is RMS voltage. This relationship explains why reducing frequency can reduce capacitive current for the same voltage and capacitance. Actual equipment capability also depends on waveform and instrument design.
| Frequency | Maximum specified load capacitance | Selection consideration |
|---|---|---|
| 0.1 Hz | 1.1 µF | Check total cable and accessory capacitance. |
| 0.05 Hz | 2.2 µF | Higher stated capacitance capacity than at 0.1 Hz. |
| 0.02 Hz | 5.5 µF | Largest stated capacitance limit among the listed settings. |
The lowest frequency is not automatically the correct choice for every test. Use only settings permitted by the instrument manual and applicable procedure.
Which Control and Protection Functions Matter?

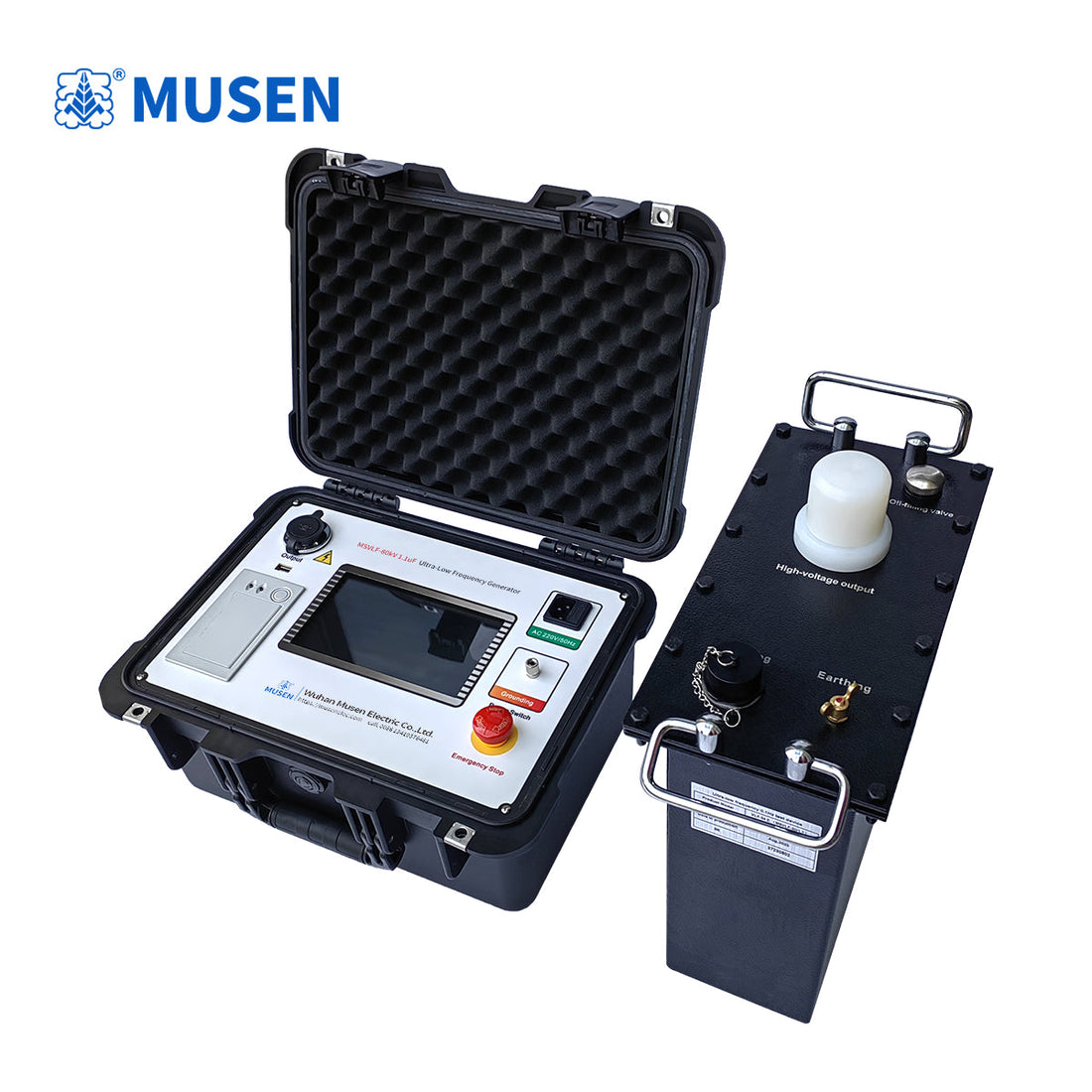

The supplied MSVLF information specifies digital frequency conversion, microcomputer control and automated voltage ramp-up, ramp-down, measurement and protection. It also lists overvoltage protection and overcurrent protection on both the high- and low-voltage sides. The stated protection action time is ≤10 ms. This is a product specification to verify, not an independently measured result. Protection functions must be combined with correct isolation, grounding, discharge procedures and a controlled test area. The system also specifies optical control between the low-voltage controller and high-voltage generator. Closed-loop negative-feedback regulation is described as preventing capacitive voltage rise under specified conditions; request the technical manual for its precise operating limits.
What Interface and Environmental Requirements Should You Check?
| Parameter | Supplied specification |
|---|---|
| Measurement accuracy | 1% |
| Positive/negative peak voltage error | ≤3% |
| Waveform distortion | ≤5% |
| Operating temperature | -10°C to +40°C |
| Relative humidity | ≤85% RH |
| Interface | Capacitive touchscreen and LCD display |
| Data functions | Automatic storage and printing |
| Language | Chinese/English switching |
The equipment is described as compact and lightweight for outdoor work. Confirm the actual dimensions, shipping weight, power requirements and weather restrictions before field deployment.
How Does a VLF Tester Compare with Other Methods?
| Equipment | Primary purpose | Important distinction |
|---|---|---|
| VLF AC tester | Specified very-low-frequency withstand testing | Uses AC below 1 Hz for applicable cable procedures. |
| Power-frequency AC tester | AC withstand testing | Long cables may require greater capacitive current. |
| DC hipot tester | DC withstand testing where permitted | DC and VLF results are not universally interchangeable. |
| PD measurement system | Insulation discharge diagnostics | Requires dedicated sensors and measurement procedures. |
Which Standards Should Guide Selection?
IEEE 400.2-2024 addresses field testing of shielded power cable systems using VLF. IEC 60502-2:2014+AMD1:2024 covers specified extruded-insulation power cables rated from 6 kV to 30 kV. Verify that the cable falls within the scope of the standard and that the prescribed test is appropriate.
Frequently Asked Questions
Q: Which MSVLF frequency supports 5.5 µF?
A: The supplied data lists 5.5 µF at 0.02 Hz. Confirm voltage-dependent limits for the exact model.
Q: Is a 90 kV tester suitable for every cable?
A: No. Cable type, prescribed voltage, capacitance and accessories determine suitability.
Q: What should a buyer request before ordering?
A: Request the exact model datasheet, operating manual, load-versus-frequency limits and relevant calibration documentation.
