How to Choose the Right Series Resonance Test System for High-Voltage Testing Projects?

Reliable high-voltage testing is essential for ensuring the safety and long-term stability of power infrastructure. Utilities, EPC contractors, and testing laboratories regularly perform AC withstand tests on cables, transformers, GIS equipment, and substation apparatus before commissioning or after maintenance. Among available technologies, the Series Resonance Test System has become a preferred solution because it can generate high test voltages with relatively low power consumption while maintaining stable performance for capacitive loads.

However, selecting the correct configuration requires engineering evaluation rather than simple equipment comparison. Factors such as the capacitance of the test object, required voltage level, system capacity, control functions, and manufacturer reliability all affect the final decision. The following guide explains the key considerations that power engineers and procurement teams should review when choosing a Series Resonance Test System for field applications.

 1. How Do You Identify the Test Object and Required Voltage Level?

The first step in equipment selection is defining the electrical characteristics of the asset being tested. Substation equipment, high-voltage cables, transformers, and GIS installations all require different AC withstand voltage levels according to IEC or national testing standards. Engineers must determine the rated voltage of the equipment, the required test voltage multiplier, and the duration of the test procedure.

Another critical parameter is the capacitance of the test object. Long transmission cables and large GIS installations often present significant capacitive loads, which directly influence the system capacity required for testing. Accurate capacitance estimation helps determine whether the selected Series Resonance Test System can reach and maintain a stable resonance condition during operation.

Proper evaluation at this stage prevents under-sized configurations that cannot reach the required voltage, as well as over-sized systems that unnecessarily increase equipment cost and transportation complexity.

  2. How Is the Required System Capacity Calculated?

System capacity determines whether the testing equipment can generate the necessary high voltage while maintaining operational stability. In resonance testing, the required capacity depends primarily on three parameters: test voltage, test frequency, and the capacitance of the equipment under test.

Engineers typically calculate the reactive power required to achieve resonance and then determine the number and configuration of reactors needed to support that capacity. For large cable testing projects or high-voltage substations, multiple reactors may be connected in series or parallel to expand the voltage range and increase flexibility.

A properly designed Series Resonance Test System allows the operator to achieve high output voltage with relatively low input power, which significantly reduces the load on the local power supply during testing. Modular system architecture also allows utilities to adapt the configuration for different voltage levels and test scenarios without purchasing separate equipment sets.

 3. Why Are Control Functions and Protection Features Critical?

High-voltage testing involves significant electrical energy, which makes safety and system stability essential. Modern testing equipment integrates digital control systems that enable automatic tuning, frequency adjustment, and controlled voltage ramp-up during the testing process. These functions allow engineers to locate the resonance point quickly and maintain a stable output voltage throughout the test.

A well-designed Series Resonance Test System should also include comprehensive protection mechanisms such as over-voltage protection, over-current protection, zero-position startup protection, and system detuning protection caused by flashover events. These features prevent equipment damage and ensure operator safety during demanding field conditions.

Automation features also improve testing efficiency. Many systems provide multiple operating modes, including automatic mode, manual mode, and automatic tuning with manual voltage increase. Integrated data storage and remote printing capabilities allow technicians to record test results and easily retrieve them for technical reports or maintenance documentation.

 4. How Do You Select a Reliable Manufacturer for Field Applications?

Beyond technical specifications, the reliability of the equipment supplier plays a crucial role in project success. Field testing environments such as substations or cable installation sites often require portable equipment that can be transported and installed quickly. Lightweight modular components help engineers move the system efficiently while maintaining stable electrical performance.

Another important factor is system flexibility. Equipment that supports adjustable frequency scanning allows engineers to set the starting frequency within a defined range during automatic sweep operations. Advanced platforms using DSP technology also allow future upgrades and functional expansion, which improves the long-term value of the testing equipment.

Working with an experienced manufacturer ensures access to engineering support, application guidance, and reliable product quality. This is particularly important for utilities and engineering companies that rely on accurate high-voltage testing results before commissioning critical power infrastructure.

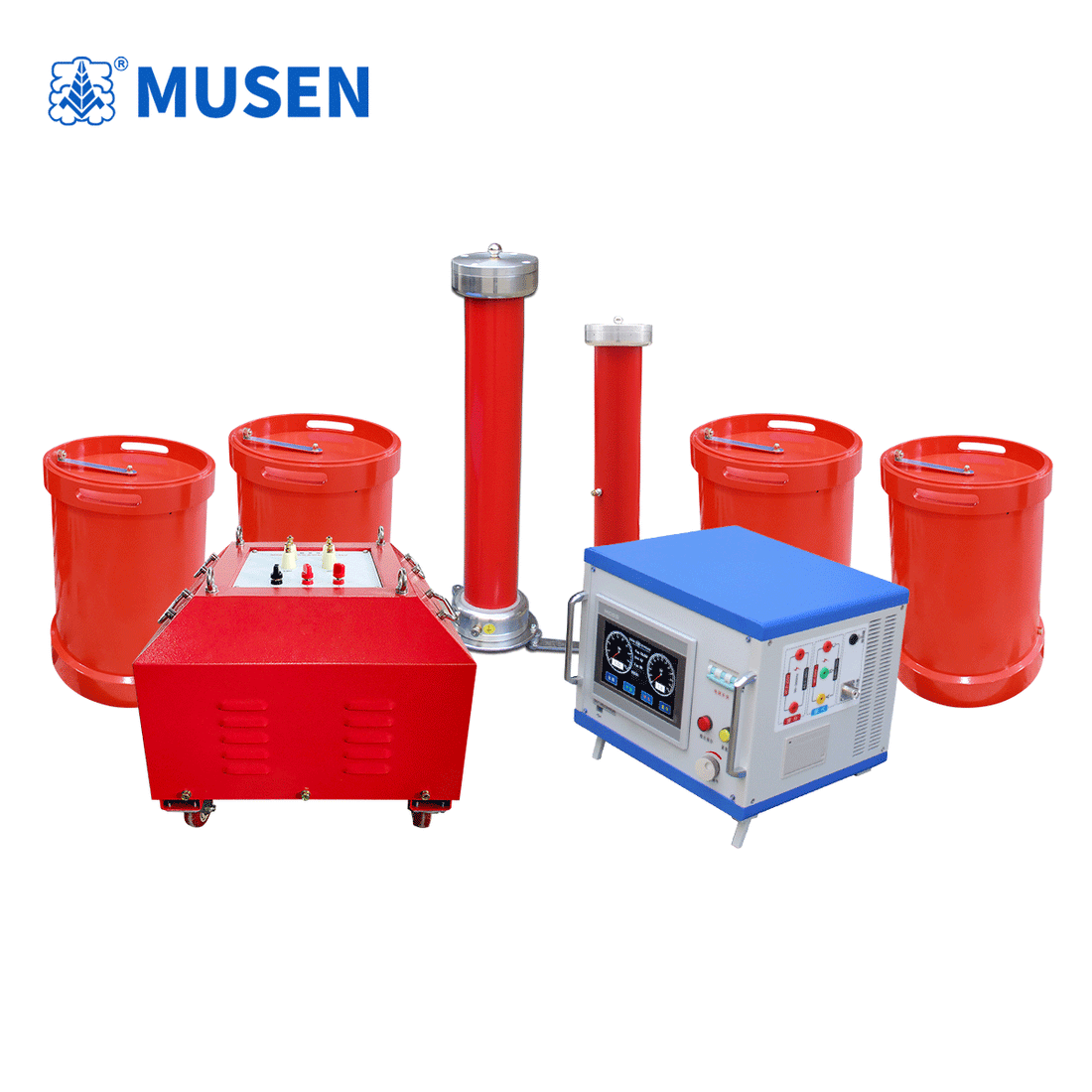

Recommended Equipment for High-Voltage Cable and Substation Testing

For utilities, testing laboratories, and EPC contractors performing AC withstand tests, selecting the appropriate configuration is essential. Wuhan Musen Electric Co., Ltd. specializes in the development and manufacturing of advanced high-voltage testing equipment designed for field applications in substations and cable commissioning projects.

Typical system specifications available include:

• 135kVA / 108kV

• 108kVA / 108kV

• 270kVA / 270kV

• 540kVA / 270kV

• 1620kVA / 540kV

• 8100kVA / 500kV

These systems are designed with lightweight modular components, making them suitable for on-site testing operations. The equipment integrates multiple protection mechanisms such as over-voltage protection, over-current protection, zero-position startup protection, and flashover detection. In addition, users can select different operating modes including full automatic operation, manual control, and automatic tuning with manual voltage rise.

The control platform is based on DSP technology, enabling flexible functional expansion, improved human-machine interaction, and efficient test data storage with remote printing capability. These features allow engineers to perform reliable AC withstand testing on substation equipment and high-voltage cables while maintaining safe and efficient operation in the field.

For detailed technical specifications and application support, visit the official website of Wuhan Musen Electric Co., Ltd.:
https://www.musenelectric.com

Selecting the correct testing equipment requires careful evaluation of the test object, voltage requirements, system capacity, control features, and manufacturer expertise. By understanding these key factors, utilities and engineering teams can ensure reliable commissioning tests and maintain the operational safety of critical power infrastructure.

With extensive experience in high-voltage testing technology, Wuhan Musen Electric Co., Ltd. provides practical solutions tailored to the needs of power utilities and engineering contractors worldwide. Their advanced resonance testing equipment helps engineers perform accurate and efficient AC withstand tests for cables, substations, and other high-voltage assets, supporting the safe operation of modern power systems.
