How to Choose a PD-Free Power Frequency Withstand Voltage Test System?

Why Equipment Selection Matters in High-Voltage Testing

In overseas power engineering projects, selecting the right high-voltage test equipment is critical for ensuring insulation reliability, regulatory compliance, and long-term asset safety. Among various testing methods, the PD-free power frequency withstand voltage test system plays a decisive role in detecting latent insulation defects without introducing additional partial discharge risks.

This article provides a clear, engineering-oriented guide to help utilities, EPC contractors, and testing laboratories make informed decisions when selecting such systems.

Key Application Scenarios You Should Consider

Before selecting equipment, it is essential to clarify its application scope. PD-free testing systems are commonly used for transformers, GIS, switchgear, cables, and insulation components in both factory acceptance tests (FAT) and on-site commissioning.

A properly selected PD-free power frequency withstand voltage test system ensures accurate insulation assessment while meeting international standards such as IEC and IEEE.

Core Technical Parameters That Define Performance

When evaluating a system, focus on measurable engineering indicators rather than marketing descriptions.

A high-quality PD-free power frequency withstand voltage test system should demonstrate:

• Stable low-impedance voltage output

• Verified partial discharge control under rated voltage

• Consistent performance during long-duration withstand tests

These parameters directly influence test accuracy and repeatability in overseas grid environments.

Structural Design and Insulation Reliability

Structural design determines both electrical performance and operational safety. Oil-immersed designs with reinforced insulation paths significantly reduce background discharge and electromagnetic interference.

For international users, a PD-free power frequency withstand voltage test system with high insulation class ensures adaptability to diverse climate and grid conditions.

Safety Protection and Operational Assurance

High-voltage testing inherently involves risk. Reliable overcurrent and overvoltage protection mechanisms are non-negotiable, especially for overseas project sites with varying power quality.

A mature PD-free power frequency withstand voltage test system must protect not only the equipment under test, but also operators and auxiliary instruments.

Manufacturer Capability and Long-Term Support

Beyond hardware, engineering users should evaluate the manufacturer’s technical depth, quality control system, and international service capability.

Choosing a supplier with proven export experience ensures that your PD-free power frequency withstand voltage test system remains compliant, serviceable, and supported throughout its lifecycle.

 Optimizing Your Testing Investment

Selecting the right PD-free testing equipment is not about price alone—it is about performance stability, safety margin, and long-term reliability. A well-chosen system reduces failure risks, improves diagnostic accuracy, and supports international project success.

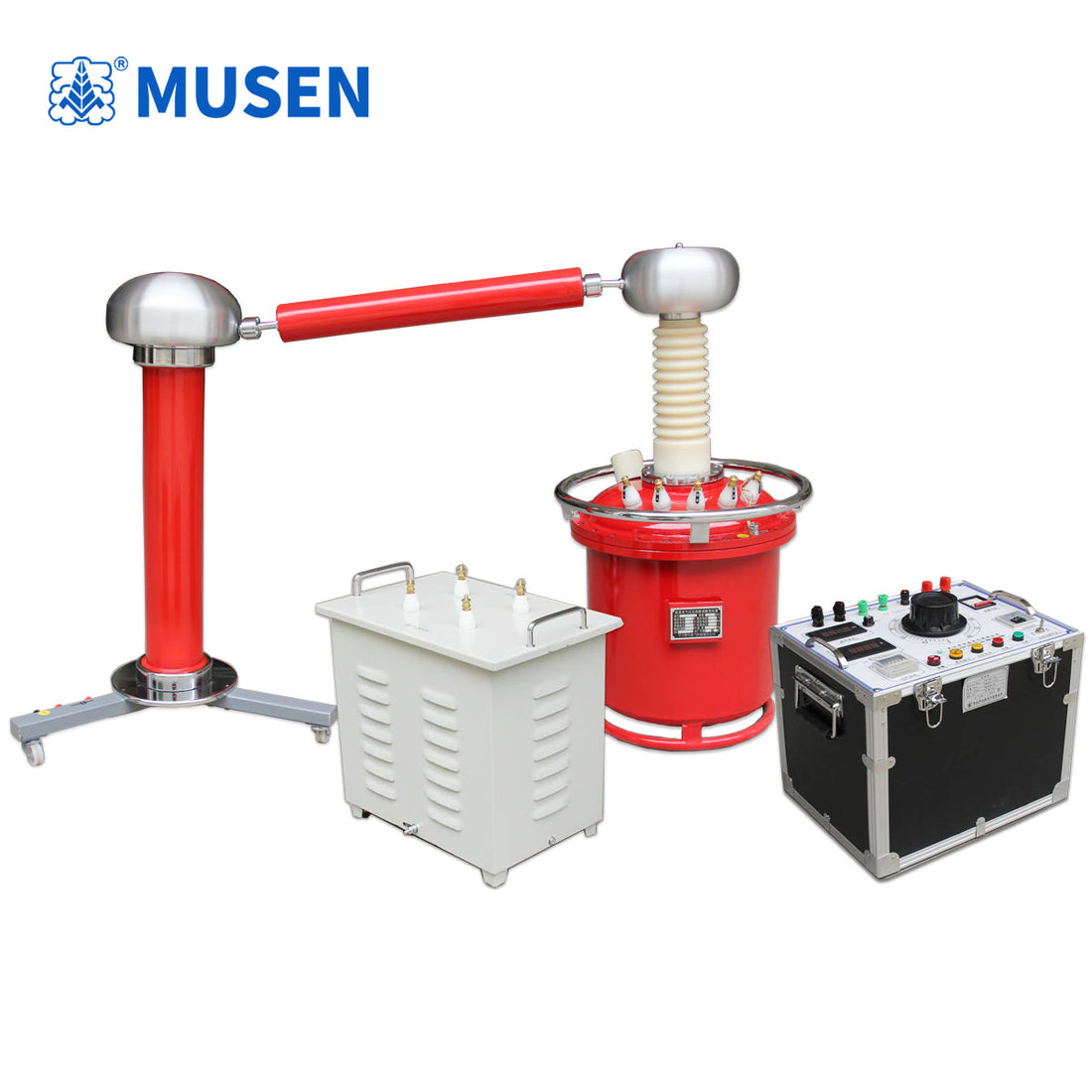

Product Overview: MS-YDJW Oil-Immersed PD-Free Test Transformer

Wuhan Musen Electric Co., Ltd. offers the MS-YDJW Oil-Immersed PD-Free Test Transformer, engineered specifically for high-standard power frequency withstand voltage testing.

Key Advantages:

• Epoxy cylinder structure for enhanced insulation stability

• Low-impedance voltage output, exceeding national standards

• High insulation class with partial discharge level ≤ 5 pC

• Reliable overcurrent and overvoltage protection system

The MS-YDJW series provides a robust, precise, and safe solution for global power utilities and testing institutions seeking dependable PD-free testing performance.

🌐 Learn more at: https://musenelectric.com/
