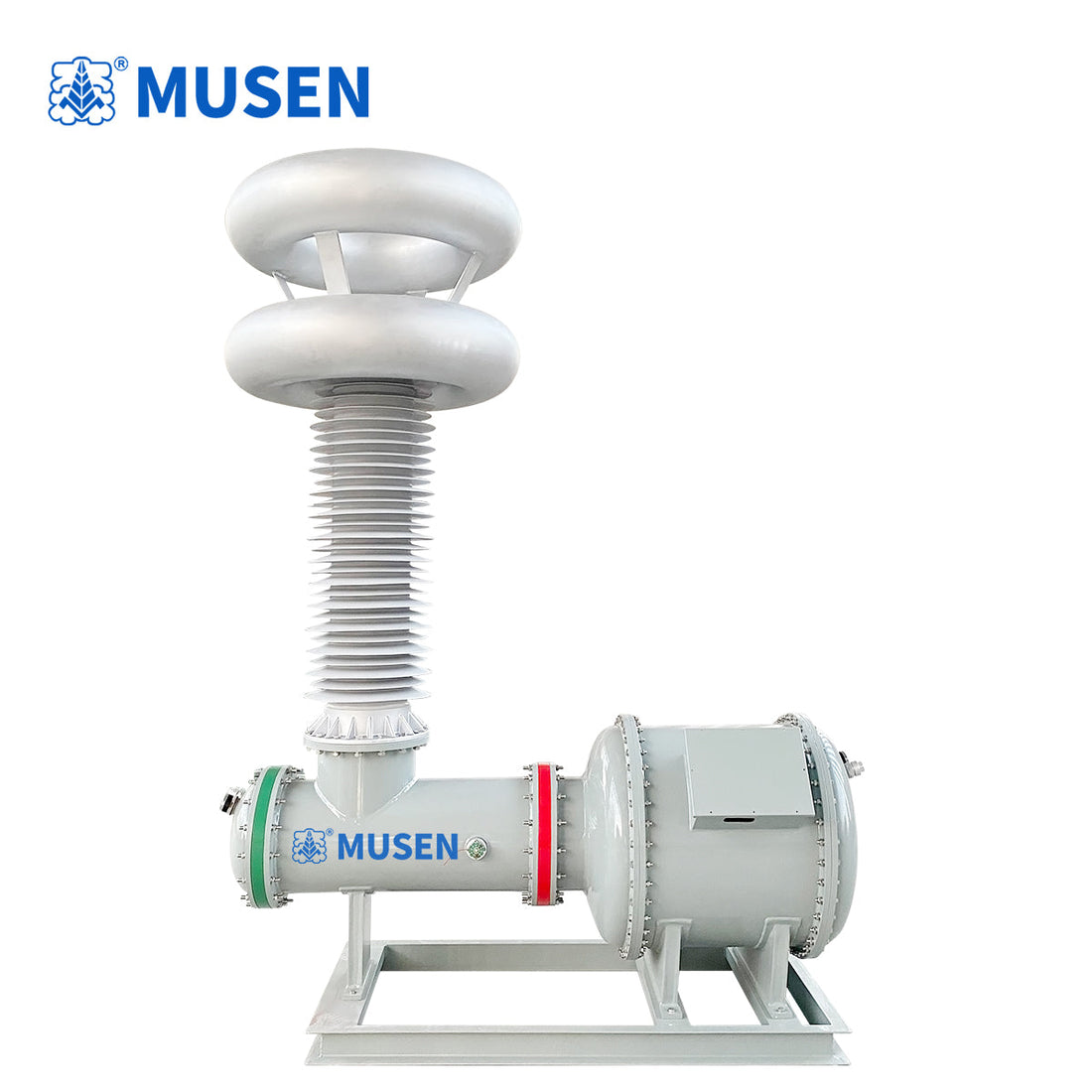

What Factors Should You Consider When Buying a Partial Discharge Free Test Transformer

In high-voltage testing, accuracy is everything. Even minor measurement deviations can lead to incorrect diagnostics, unexpected insulation failure, and costly downtime. For power utilities, EPC contractors, and industrial operators, selecting the right Partial Discharge Free Test Transformer is essential to ensure reliable insulation assessment and compliance with international standards.

This article provides a structured, data-driven guide to help engineers and procurement teams understand key selection factors, evaluate performance criteria, and make informed purchasing decisions aligned with global best practices.

1 Why Is Partial Discharge Control Critical in High Voltage Testing

Partial discharge (PD) is a localized electrical breakdown within insulation that does not completely bridge conductors. During testing, any internal PD from the test equipment itself can distort results.

For example:

• IEC standards typically require PD levels ≤10 pC

• Advanced systems achieve ≤5 pC for higher precision

Low PD performance ensures:

• Accurate insulation diagnostics

• Reliable acceptance testing for transformers, cables, and GIS

• Reduced risk of misjudging equipment condition

2 What Voltage Capacity Should You Select for Your Application

Voltage rating is one of the most important technical parameters. The selected system must match or exceed the required test voltage for your equipment.

Typical application ranges:

• Power cables: 50–300 kV

• Transformers: up to 500 kV or higher

• GIS systems: ultra-high voltage levels

Best practice:

• Add at least 20% safety margin above required voltage

• Ensure stable output under load conditions

A properly rated Partial Discharge Free Test Transformer guarantees consistent performance across various testing scenarios.

3 How Does Partial Discharge Level Affect Testing Accuracy

The PD level directly determines the credibility of test results. Lower PD values mean less background noise and higher sensitivity in detecting insulation defects.

Comparison:

• Conventional systems: ~10 pC

• Integrated advanced systems: ≤5 pC

Key evaluation points:

• Verified factory test reports

• On-site performance consistency

• Long-term stability under repeated testing

4 Which Insulation Technology Is More Reliable Gas or Oil

Modern testing systems increasingly use gas insulation instead of traditional oil-filled designs.

Gas-insulated advantages:

• Fire-resistant and safer operation

• No oil leakage risk

• Higher dielectric strength

• Reduced maintenance requirements

Oil-filled limitations:

• Regular maintenance required

• Environmental risks

• Larger footprint

For international projects, gas-insulated systems are widely preferred due to safety and compliance advantages.

5 Should You Choose an Integrated or Traditional Test System

Traditional setups require multiple external components:

• Coupling capacitor

• Voltage divider

• Current-limiting resistor

Integrated systems combine all components into a single unit.

Benefits of integration:

• Faster installation (reduced by up to 40%)

• Lower connection error risk

• Compact footprint for substations

A modern Partial Discharge Free Test Transformer with integrated design improves both efficiency and reliability in field operations.

6 How Important Are Portability and Installation Efficiency

Field testing often requires equipment to be transported across substations, construction sites, or industrial plants.

Key considerations:

• Total system weight

• Modular vs integrated structure

• Setup time

Typical improvements:

• Integrated systems reduce installation time by 30–50%

• Lightweight designs improve mobility for on-site testing

7 What Environmental Factors Should You Consider

High-voltage testing equipment must operate reliably in challenging environments:

• High humidity

• Dust and contamination

• Temperature fluctuations

A hermetically sealed metal enclosure provides:

• Protection from external contaminants

• Stable internal insulation conditions

• Extended service life

This is especially important for overseas projects in tropical or desert regions.

8 How Do Maintenance Costs Impact Long Term Investment

Operational cost is often overlooked during procurement.

Comparison:

• Oil-filled systems: periodic oil replacement and inspection

• Gas-insulated systems: minimal maintenance

Cost benefits:

• Reduced downtime

• Lower labor requirements

• Higher equipment availability

Selecting the right Partial Discharge Free Test Transformer can significantly lower total cost of ownership over its lifecycle.

9 Why Does Manufacturer Expertise Matter

Supplier capability directly affects product quality and project success.

Evaluation criteria:

• Years of experience in high-voltage testing

• Global project references

• Compliance with IEC and IEEE standards

• After-sales support and training

(Wuhan Musen Electric Co Ltd) has extensive experience in high-voltage testing equipment manufacturing, serving global power utilities, substations, and engineering companies.

Choosing the right test equipment is not just a technical decision but a strategic investment in system reliability and safety. By focusing on voltage capacity, PD performance, insulation technology, system integration, and manufacturer expertise, engineers can ensure accurate testing results and long-term operational efficiency.

For international power engineering projects, advanced solutions with integrated design, ultra-low PD levels, and minimal maintenance requirements are becoming the industry standard. Making an informed choice today helps prevent costly failures tomorrow.
