How Is the MS-101G Series Dielectric Loss Tester Applied Across High-Voltage Testing Scenarios?
How Is the MS-101G Series Dielectric Loss Tester Applied Across High-Voltage Testing Scenarios?

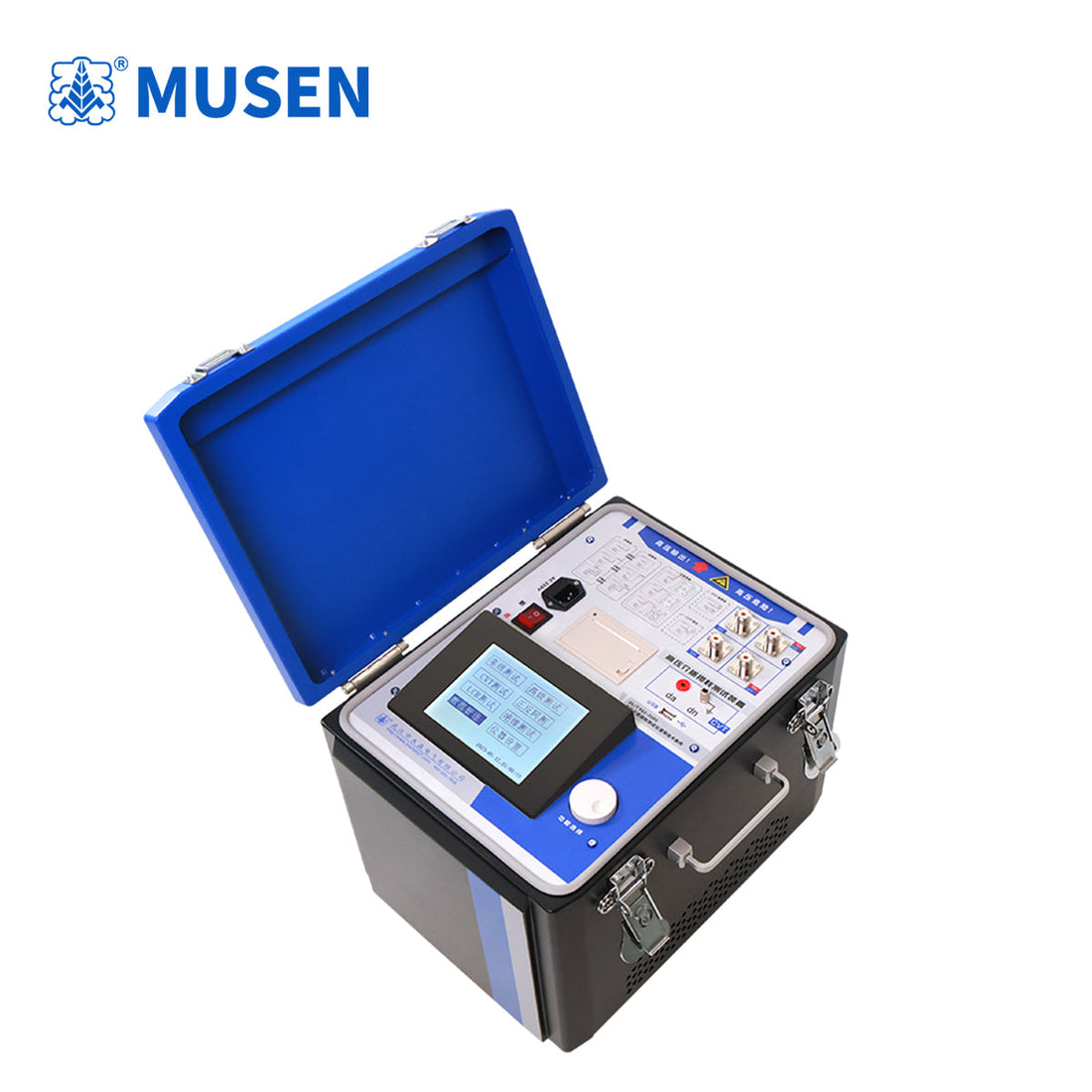

The Dielectric Loss Tester MS-101G Series provides a standardized method for evaluating electrical insulation integrity across transformers, power cables, rotating machines, and capacitive switchyard assets. By measuring capacitance and dissipation factor (\tan delta) under variable frequencies and high voltage stresses, maintenance crews can detect moisture ingress, insulation contamination, thermal aging, and structural void formation in accordance with IEC and IEEE engineering standards.
What Are the Standardized Field Testing Scenarios?
Evaluating high-voltage electrical insulation requires specific test configurations depending on the asset's grounding arrangements and structural layout. The MS-101G Series supports multiple internal wiring modes to perform accurate field diagnostics.
1. Main Transformer Bushing Diagnostics ($C_1$ and $C_2$)
Transformer bushings use layered capacitive paper insulation to manage high electric field gradients. Deterioration or moisture ingress in these layers increases the dielectric loss factor, presenting a catastrophic failure risk.
Using its 4-channel acquisition architecture, the MS-101G Series simultaneous measures the main insulation (C_1) and tap insulation ($C_2$) in a single step. This approach simplifies lead configurations and helps field teams quickly locate thermal aging and localized insulation breakdowns.
2. Power Cable Insulation and Resonant Voltage Testing
Medium- and high-voltage underground power cables exhibit large capacitive loads. Testing long cable runs requires variable-frequency AC test signals to prevent overcurrent tripping on standard supplies.
| Testing Scenario | Applied Test Voltage | Primary Measurement Parameters | Governing Test Standard |
|---|---|---|---|
| HV Transformer Winding | 2.0 kV to 12 kV AC (Internal) | Capacitance ($C$), Tan Delta ($\tan \delta$), Voltage Ratio | IEEE C57.12.90 / IEC 60076-1 |
| Extruded Power Cables | Up to 20 kV (Internal) / 100kV (External Resonant) | $\tan \delta$ vs. Frequency Curve (45–65 Hz), $C$ | IEC 60502-2 / IEEE 400.2 |
| Generator Stator Bars | 2.0 kV to 20 kV AC | Tip-Up $\tan \delta$, Phase angle shift, Capacitance | IEEE Std 286 / IEC 60034-27 |
| Capacitive Voltage Transformers | 1.0 kV to 10 kV AC (Live-line or Offline) | $C_1$/$C_2$ Capacitance ratio, Phase error, $\tan \delta$ | IEC 61869-1 / IEEE C57.13 |
Step-by-Step Test Execution and Data Analysis
Executing an insulation diagnostic run with the MS-101G Series follows a standardized operational sequence designed to maintain personnel safety and measurement precision:
- Isolation and Ground Verification: De-energize the target specimen (if performing offline diagnostics) and establish earth grounding connections per safety guidelines.
- Lead Attachment: Attach the high-voltage output lead and measurement channel leads (HV$, CX$) using either positive or reverse wiring depending on specimen grounding.
- Parameter Selection: Select the target test voltage (e.g., 10 kV), sweep frequencies (e.g., 45 Hz / 55 Hz), and channel configurations on the user interface.
- Measurement Acquisition: Initiate the test sequence. The instrument applies the variable-frequency voltage, auto-balances the internal bridge, and logs capacitance, phase angle, and $\tan \delta$ values.
-
Data Transmission: Export the recorded dataset via the integrated wireless Bluetooth link to the central database for baseline comparisons and trend analysis.
Frequently Asked Questions
Q: What does a rising $\tan \delta$ vs. frequency curve indicate?
A: A significant upward shift in the dissipation factor as frequency decreases usually indicates moisture contamination or conductive polar impurities within paper-oil or polymeric insulation structures.
Q: How does the instrument compensate for ambient temperature differences?
A: Dissipation factor values are temperature-dependent. Test data acquired at field temperatures should be normalized to $20^\circ\text{C}$ equivalent baselines using built-in software algorithm tables in accordance with IEEE C57.12.90 guidelines.
Technical Content Reviewed by High-Voltage Diagnostic Specialists
