How Integrated Gas-Insulated Non-Partial Discharge High-Voltage Test Transformer Systems Optimize AC Dielectric Strength Testing
How Integrated Gas-Insulated Non-Partial Discharge High-Voltage Test Transformer Systems Optimize AC Dielectric Strength Testing

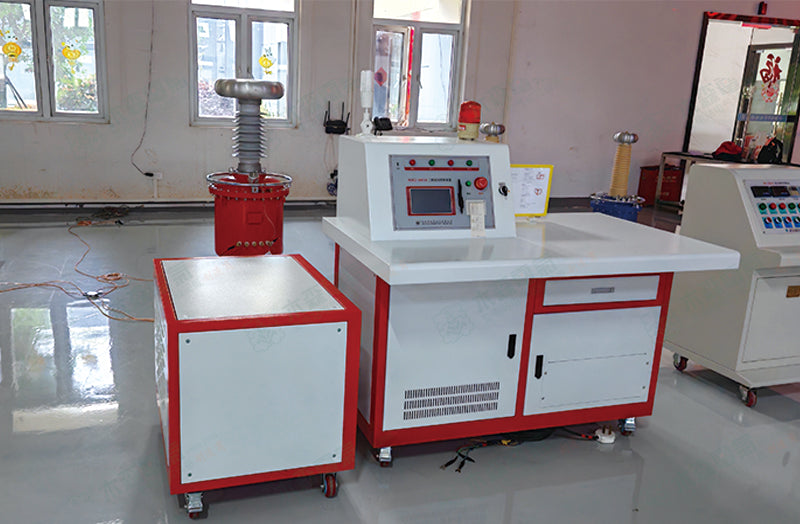

The No Partial Discharge AC Dielectric Test Set (MSYDQ Series) is an integrated high-voltage testing apparatus designed to evaluate insulation integrity with background discharge levels controlled below 3pC at output ratings up to 1000kV and 1200kVA. By housing the high-voltage testing transformer, capacitive voltage divider, coupling capacitor, and current-limiting resistor inside a single SF6 gas-insulated enclosure, this system eliminates external stray capacitance and electromagnetic interference during IEC 60270 insulation diagnostics.
Why Is Partial Discharge Control Below 3pC Critical in Dielectric Strength Testing?
Electrical insulation evaluation per IEC 60270 and IEEE Std 4 requires high sensitivity to detect micro-voids, electrical treeing, and surface degradation. Standard testing transformers generate internal discharges exceeding 10pC to 50pC, masking actual defects within the Device Under Test (DUT). A specialized (non-partial discharge high-voltage test system) utilizes high-purity SF6 dielectric gas at 0.3–0.4 MPa pressure or epoxy cylinder construction to suppress internal ionization.
Integrating a (non-partial discharge AC dielectric strength test device) ensures that acoustic emission (AE) sensors, ultra-high frequency (UHF) couplers, and conventional electrical coupling networks measure genuine discharge events within GIS gear, power transformers, and high-voltage cables.
How Does the Integrated Architecture Compare to Conventional Modular Test Systems?
Traditional high-voltage diagnostic setups require separate physical modules connected via external high-voltage leads. This configuration increases spatial footprint and introduces stray inductance. The MSYDQ series integrates the (gas-insulated non-partial discharge test transformer) directly with protection resistors and voltage dividers.
| System Parameter | MSYDQ Integrated Test Set | Conventional Modular HV System |
|---|---|---|
| Background PD Level (IEC 60270) | ≤ 3 pC at full rated voltage | 10 pC to 30 pC (susceptible to ambient noise) |
| Output Voltage Range | 50 kV, 100 kV, 150 kV, 200 kV, 300 kV, 500 kV, 600 kV, 1000 kV | 50 kV to 800 kV (requires multi-stage cascading) |
| Capacity Range | 50 kVA to 1200 kVA | 20 kVA to 500 kVA |
| No-Load Loss / Load Loss | < 4.0% / < 9.0% | > 6.5% / > 12.0% |
| Frequency Compatibility | 50 Hz / 60 Hz Power Frequency & 30–300 Hz VF | 50 Hz / 60 Hz fixed frequency only |
What Standards Govern Non-PD High Voltage Testing?
Deploying a (non-partial discharge test system) requires compliance with international quality and safety benchmarks:
- IEC 60270: Partial discharge measurements standard defining calibration, pulse resolution, and noise mitigation protocols.
- IEC 60060-1: High-voltage test techniques covering general definitions and test requirements for power frequency AC voltage.
- IEEE Std 4: Standard techniques for high-voltage testing, establishing accuracy criteria for capacitive dividers within ±1%.
- GB/T 16927.1: National technical specifications for high-voltage testing procedures and atmospheric correction factors.
The (Non-partial discharge test transformer) operates within these parameters, featuring automatic zero-return interlocks, over-current trip settings within 10ms, and over-voltage surge protection circuits to safeguard operator safety during destructive dielectric breakdown testing.
How Does the SF6 Gas Insulation Architecture Minimize Physical Footprint?
The (gas-insulated high-voltage test transformer system) leverages SF6 gas dielectric strength, which is approximately 2.5 times higher than air at atmospheric pressure. This allows internal clearance distances to be reduced by up to 65%. The integrated (gas-insulated AC non-partial discharge high-voltage test device) occupies minimal floor space, allowing installation inside mobile testing vans or compact high-voltage laboratories.
Frequently Asked Questions
Q: What is the primary cause of background discharge in high-voltage test sets, and how does the MSYDQ eliminate it?
A: Background PD is caused by sharp mechanical edges, air voids in solid insulation, and poor grounding contacts. The MSYDQ eliminates these by using polished toroidal shielding rings, SF6 gas insulation under pressure, and internal embedding of the divider and coupling capacitor, achieving total system PD ≤3pC.
Q: Can the MSYDQ system perform variable frequency dielectric tests?
A: Yes. The MSYDQ series supports operational frequencies ranging from 30 Hz to 300 Hz when paired with a variable frequency power supply, making it suitable for field resonant testing of long HV cables and GIS installations per IEC 62271-203.
