How Does the MS-101G Series Dielectric Loss Tester Enhance High-Voltage Insulation Diagnostics?
How Does the MS-101G Series Dielectric Loss Tester Enhance High-Voltage Insulation Diagnostics?

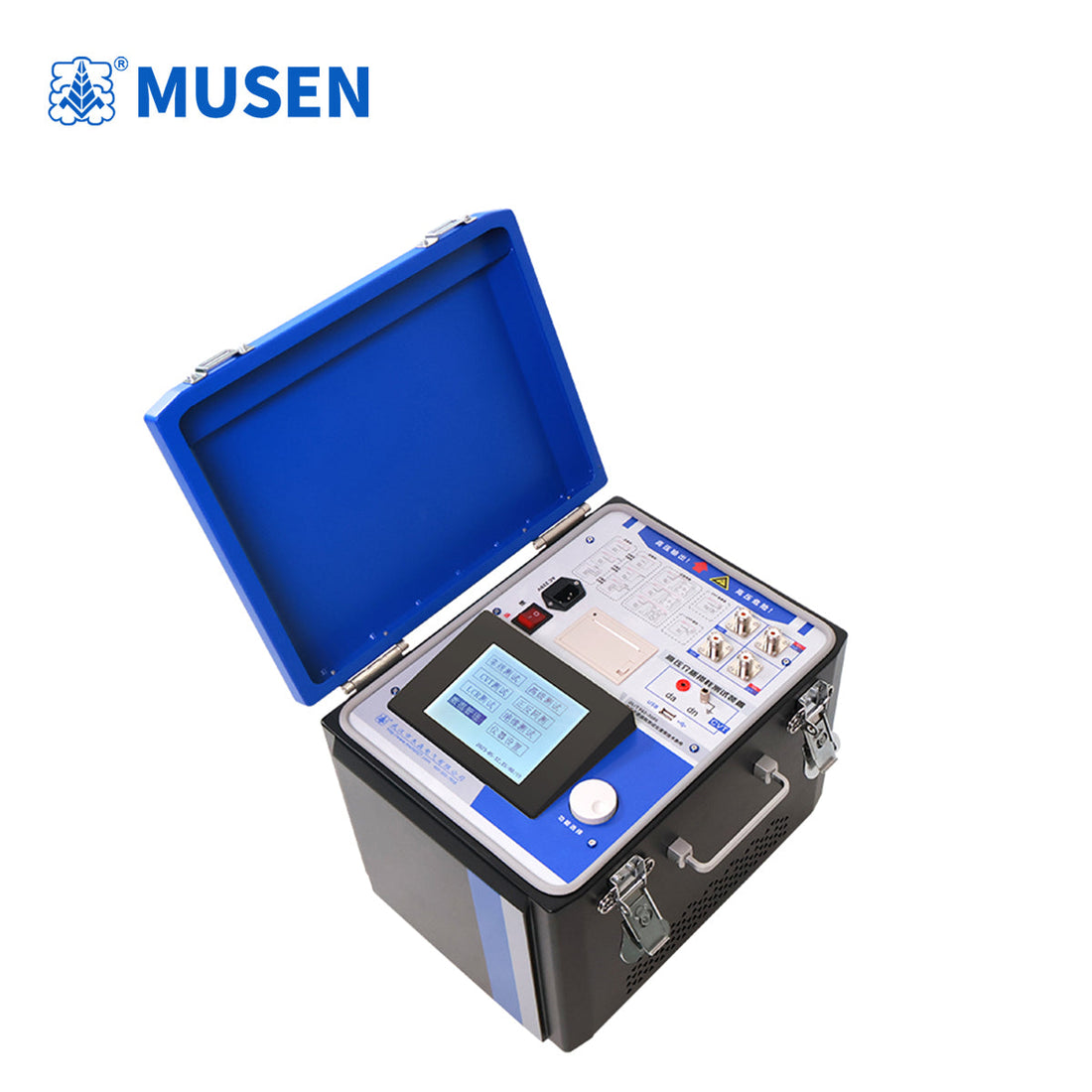

The Dielectric Loss Tester MS-101G Series is a high-precision diagnostic instrument engineered to evaluate the dissipation factor (tan delta, tan \delta) and capacitance of high-voltage electrical insulation systems under offline, online, and resonant voltage conditions. Manufactured to meet global grid reliability standards, the MS-101G Series integrates 12kV and 20kV testing thresholds across single-channel and four-channel configurations for transformers, cables, generators, and bushings.
What Are the Core Technical Features of the MS-101G Series?
High-voltage insulation diagnostics require stable signal acquisition in environments with intense electromagnetic fields. The MS-101G Series combines frequency conversion signal analysis with low-voltage shielding to suppress external stray capacitance and induction currents during field operations.
Advanced Signal Processing and Frequency Conversion
Substation switchyards generate heavy power-frequency (50 Hz / 60 Hz) interference. The Dielectric Loss Tester employs variable frequency anti-interference technology, sweeping between 45 Hz and 65 Hz to isolate true insulation dissipation factors from background noise. Furthermore, the system generates frequency-response curves ($\tan \delta$ vs. frequency) to track insulation polarization dynamics across varying operating states.
Optimized Multi-Channel Acquisition
The device supports a 4-channel positive connection and a 1-channel reverse connection architecture. This setup allows technicians to perform simultaneous testing on primary and secondary capacitance ($C_1$ and $C_2$) of transformer bushings using a single primary connection scheme, reducing physical re-hookup requirements and field test duration.
Key Technical Specifications and Compliance Standards
To ensure diagnostic accuracy, the MS-101G Series operates under strict tolerances and supports external power sources ranging from 40 Hz to 70 Hz. The following data highlights the primary technical boundaries and relevant international standards.
| Parameter / Feature | Specification Value | Reference Standard |
|---|---|---|
| Test Voltage Output | Internal: 0.5 kV to 12 kV / 20 kV; External: Up to 100 kV | IEC 60060-1 / IEEE Std 4 |
| Capacitance Range & Accuracy | 3 pF to 60,000 pF; Resolution: 0.001 pF; Accuracy: ±(1% + 0.5 pF) | IEC 60270 / ASTM D150 |
| Tan Delta ($\tan \delta$) Range | 0.0001 to 1.0000; Resolution: 0.0001; Accuracy: ±(1% reading + 0.0004) | IEC 60247 / CIGRE WG A2.27 |
| Transformation Ratio & Phase Error | Ratio range: 1–10,000; Phase error measurement resolution: 0.01° | IEEE C57.12.90 |
| Data Transmission Interface | Wireless Bluetooth class 2 module; encrypted data backhaul | IEEE 802.15.1 |
How Is Online and Live-Line Testing Implemented?
Traditional offline insulation testing requires complete equipment de-energization, causing operational downtime. The MS-101G Series accommodates live-line dielectric loss testing for capacitive devices and online monitoring for main transformer bushings by referencing system operating voltage and current phase signals.
By connecting low-voltage shielding leads to the measurement tapping points of bushings or current transformers, the Dielectric Loss Tester measures voltage transformer (VT) ratios, polarities, and phase angle shifts in real time. This capability allows utility crews to spot thermal aging, moisture intrusion, and partial discharge inception before cataclysmic insulation breakdown occurs.
Frequently Asked Questions
Q: How does the reverse connection low-voltage shield function?
A: When testing grounded specimens via reverse connection, stray capacitance to ground can introduce error currents. The low-voltage shielding circuit routes stray currents away from the internal measurement bridge, limiting measuring errors to within ±0.0005 tan \delta
Q: Can the MS-101G Series run on external high-voltage sources?
A: Yes. The unit features dedicated external power terminals accepting 40 Hz to 70 Hz sources, allowing field personnel to use high-capacity resonant test systems for long-length cable or large-generator insulation diagnostics.
Technical Content Reviewed by High-Voltage Diagnostic Specialists
