How Does the MS-101 Transformer Tan Delta Tester Ensure Precise Dielectric Loss Measurement?
Website: www.musenelectric.com | Model: MS-101 Series

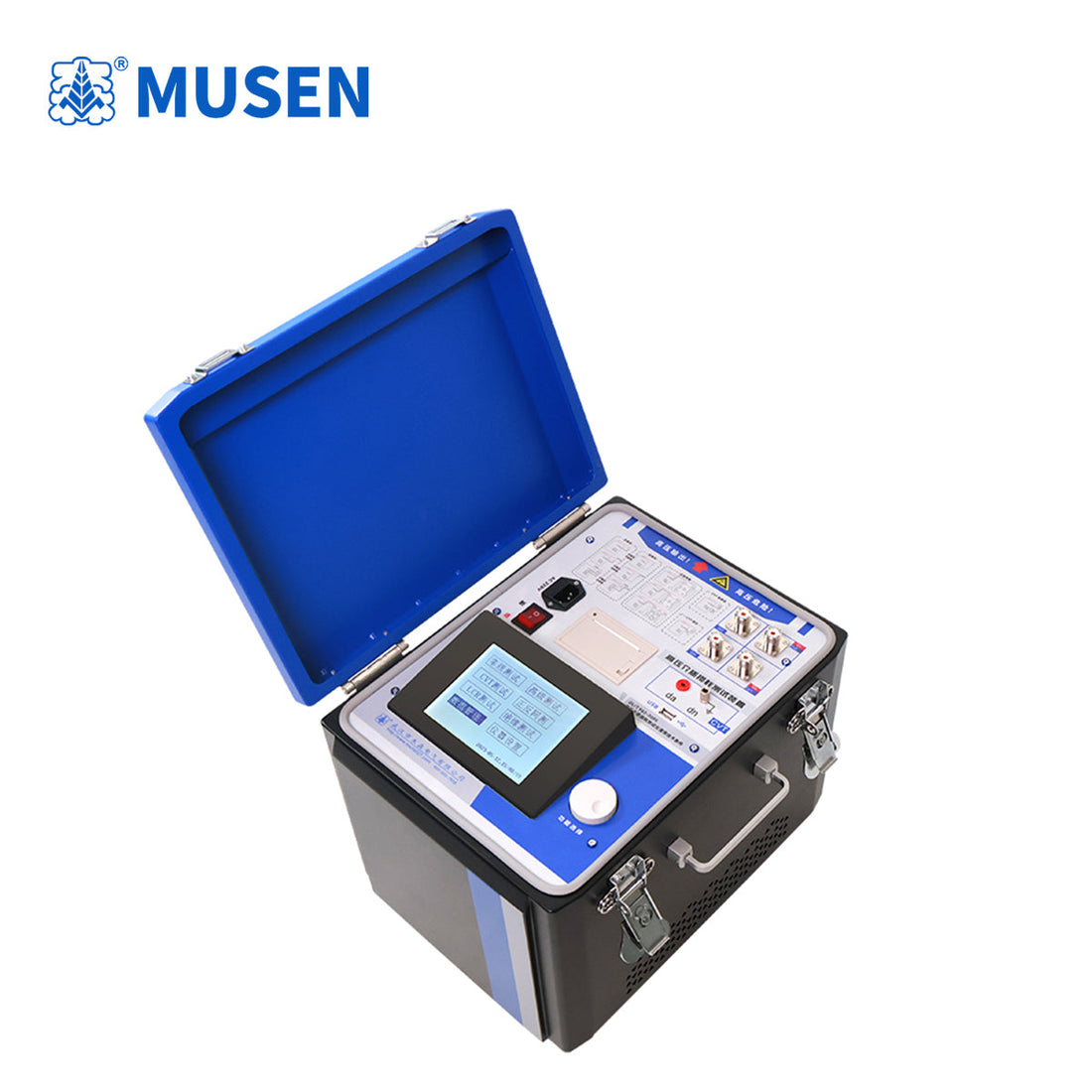

The MS-101 series Transformer Tan Delta Tester (also referred to as a Transformer Tan Delta Tester) is an advanced diagnostic instrument designed to evaluate insulation integrity by measuring dissipation factor (tan delta ) and capacitance with an accuracy of $\pm(1\% \text{rdg} + 0.00005)$ under severe electromagnetic interference. Operating across a frequency conversion range of 45Hz/55Hz or 55Hz/65Hz, it completely eliminates substation electrostatic noise.
What Makes the MS-101 Dielectric Loss Angle Tester Essential for Substation Maintenance?
Maintenance engineers dealing with high-voltage power transformers, bushings, and capacitive apparatus must frequently assess insulation aging. The degradation of cellulose-oil insulation systems produces moisture and oxidation byproducts, shifting power factor values. Utilizing an automated Anti-Interference Dielectric Loss Tester like the MS-101 allows technicians to spot insulation anomalies before catastrophic dielectric breakdown occurs, aligning strictly with IEEE Std 62-2009 and IEC 60035 standards.
Technical Specifications and Core Architecture of the MS-101 Dielectric Loss Test Kit
The hardware configuration of the MS-101 integrates single-channel and four-channel capacities, supporting 12kV and 20kV testing requirements for generators, cables, and resonance voltage conditions.
| Technical Parameter | Measurement Range | Accuracy / Resolution | Applicable Standard |
|---|---|---|---|
| Dissipation Factor ($\tan \delta$) | 0.00000 to 100.0% | (1% rdg} + 0.00005) | IEC 60247, ASTM D924 |
| Capacitance ($C$) | 3pF to 60000pF (10kV) | (0.5% {rdg} + 1pF}) | IEEE Std 62 |
| Test Voltage Output | AC 0.5kV to 12kV / 20kV | Step: 100V, Precision: 1.5% | IEC 60156 / IEC 60270 |
