How Does the AC Resonance Test System Differ from Traditional Testing Methods?

How Does the AC Resonance Test System Differ from Traditional Testing Methods?

In the world of electrical engineering, the testing of high-voltage equipment and systems plays a critical role in ensuring the safety and functionality of electrical infrastructure. As technology advances, so too do the methods and equipment used for these vital tests. One of the latest innovations in this area is the AC Resonance Test System, which offers significant advantages over traditional test methods. In this article, we’ll explore the key differences and advantages of the AC Resonance Test System, as well as how it stands out in terms of safety, efficiency, and ease of use.

What Is the AC Resonance Test System?

The AC Resonance Test System is a specialized device used primarily to test high-voltage electrical equipment, such as transformers, circuit breakers, and cables, by generating resonant AC voltage to simulate real-world operating conditions. Unlike traditional test methods, this system uses an innovative resonance technique to generate precise voltage and current, ensuring that the equipment being tested is subjected to realistic stress conditions.

Key Advantages Over Traditional Testing Methods

1. Higher Safety Standards
   One of the main differences between the AC Resonance Test System and conventional testing methods is its enhanced safety features. The system is equipped with built-in protection mechanisms, including overvoltage, overcurrent, zero-position startup, and system detuning (flashover) protection. These protections ensure that both the device under test and the operator are safeguarded from potential hazards during operation.

2. Lightweight and Portable
   Traditional test systems can often be cumbersome and difficult to transport, making fieldwork challenging. In contrast, the AC Resonance Test System is designed to be lightweight and easy to handle, allowing technicians to move and deploy it effortlessly on-site. This portability ensures that the system can be used in various locations without the need for specialized equipment or extensive setup.

3. Versatile Operating Modes
   The AC Resonance Test System offers three distinct operating modes: fully automatic, manual, and manual tuning with automatic voltage ramping. This flexibility allows users to choose the mode that best suits their testing needs, providing greater control over the testing process compared to traditional methods, which often require manual adjustments throughout.

4. Data Storage and Remote Printing
   Another benefit of the AC Resonance Test System is its ability to store test data and print results remotely. The system automatically assigns numerical identifiers to each dataset, making it easy for users to retrieve and organize test records. This functionality eliminates the need for cumbersome paper records and allows for quick access to historical data, greatly improving the efficiency of the testing process.

5. Frequency Scanning with Adjustable Range
   Traditional testing equipment typically has fixed frequency settings, but the AC Resonance Test System allows users to set the starting frequency within a specified range, providing flexibility in testing various equipment types. The system also automatically scans frequencies, adjusting the voltage and current accordingly for optimal test conditions.

6. User-Friendly Interface with DSP Technology
   The AC Resonance Test System employs DSP (Digital Signal Processing) technology, which enables easy customization and functionality upgrades based on user needs. The human-machine interface (HMI) is intuitive and user-friendly, simplifying the operation of the system and reducing the learning curve for new users. The system can be easily upgraded as technology evolves, ensuring long-term usability and adaptability.

How the AC Resonance Test System Improves Efficiency and Accuracy

The AC Resonance Test System is engineered to deliver greater precision and faster results than traditional testing methods. By using resonant voltage and current, the system is able to simulate real-world conditions more accurately. This improves the overall effectiveness of the tests and ensures that electrical equipment can withstand the stresses it may encounter during operation.

Enhanced Precision in Testing

Unlike traditional testing methods, which may rely on fixed or manual voltage application, the AC Resonance Test System allows for much higher accuracy and consistency in the results. With adjustable frequencies and automated scanning, the system provides a level of precision that manual methods often cannot match.

Increased Testing Speed

In addition to better precision, the automated nature of the system means that testing is faster and more efficient. The AC Resonance Test System eliminates the need for constant manual adjustments, enabling quicker turnaround times for tests. This is especially important in large-scale projects or testing programs, where time is of the essence.

Why Choose the AC Resonance Test System Over Traditional Methods?

The AC Resonance Test System represents a leap forward in testing technology. With its advanced safety features, portability, versatile modes, and user-friendly interface, it is an indispensable tool for modern electrical testing. The system’s ability to store and print data, as well as its customizable frequency range, makes it more efficient and accurate than traditional testing methods.

For professionals in the electrical industry, investing in the AC Resonance Test System means improved safety, accuracy, and overall efficiency. Whether for testing transformers, cables, or other high-voltage equipment, this system offers unparalleled advantages that traditional testing methods simply cannot provide.

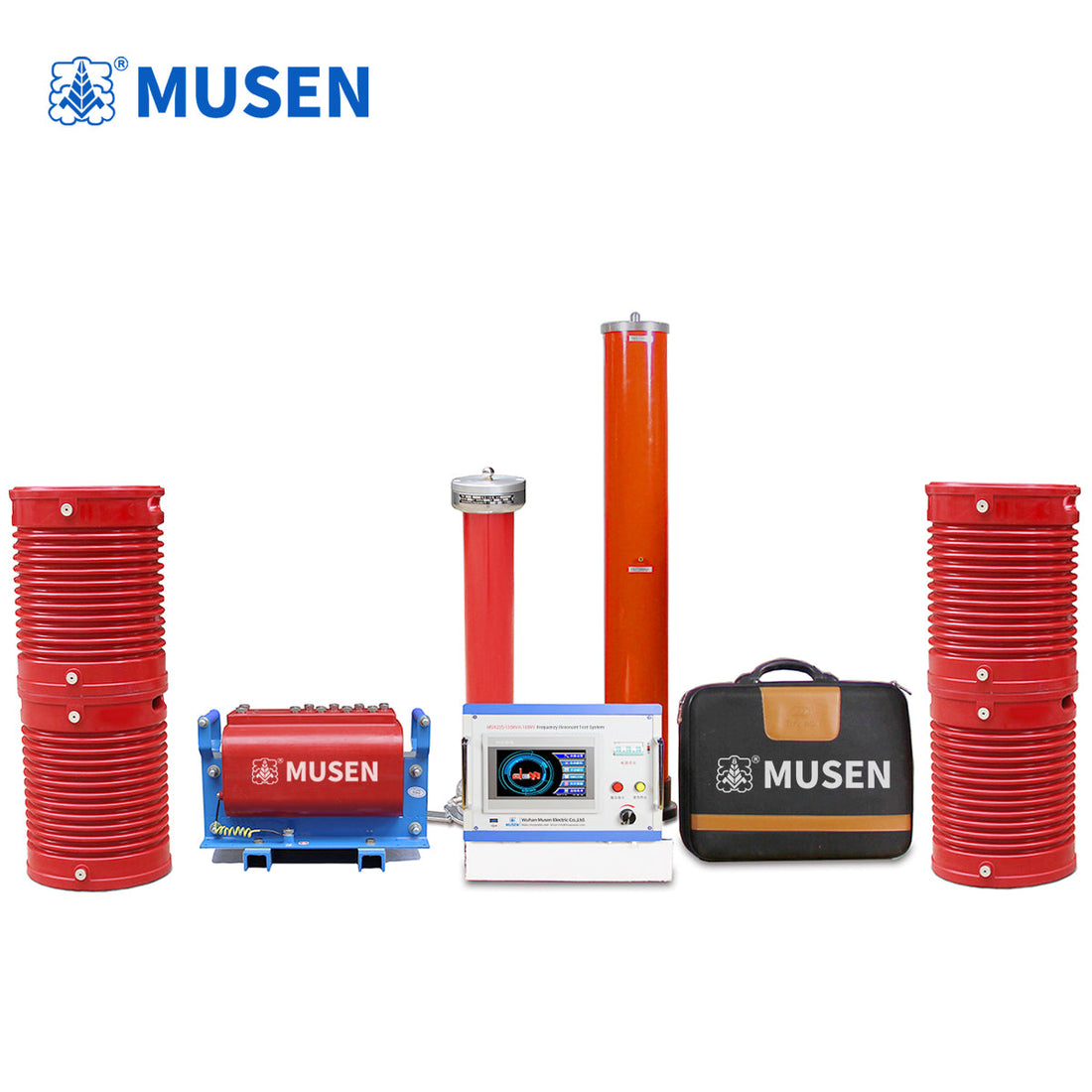

Product Overview: Key Features of the AC Resonance Test System

The AC Resonance Test System from Wuhan Musen Electric Co., Ltd. offers a range of features that set it apart from conventional test methods:

1. Comprehensive Protection Features – Overvoltage, overcurrent, zero-position startup, and system detuning protections ensure safe testing.

2. Lightweight and Portable – Easy to transport and deploy on-site, making it ideal for fieldwork.

3. Flexible Operating Modes – Fully automatic, manual, and manual tuning with automatic voltage ramping modes provide flexibility.

4. Data Storage and Remote Printing – Convenient storage and remote printing of test data with numerical identifiers.

5. Adjustable Frequency Range – Start frequency can be set within a specified range for optimized testing.

6. DSP Platform Technology – Allows for easy upgrades and customization, with an intuitive human-machine interface.

For more information about the AC Resonance Test System, visit Wuhan Musen Electric Co., Ltd..

By embracing cutting-edge technology, the AC Resonance Test System provides the electrical industry with a more reliable, efficient, and safer solution for testing high-voltage equipment.
