Preface: Why Is SF6 PD-Free Testing Critical in High-Voltage Engineering?

In modern power systems, insulation performance directly affects operational safety and service life. Partial discharge is one of the earliest and most dangerous indicators of insulation degradation, especially in high-voltage AC withstand tests. For overseas utilities, EPC contractors, and independent testing organizations, the SF6 partial discharge-free test transformer has become a key solution for achieving accurate, repeatable, and internationally compliant test results.

What Is the Working Principle of an SF6 PD-Free Test Transformer?

The core principle is based on the superior dielectric and arc-quenching properties of SF6 gas. By using SF6 as the main insulating and cooling medium, the transformer effectively suppresses internal electrical discharge under high electric field stress.

Through optimized electric field distribution, sealed metal enclosure design, and controlled gas pressure, the SF6 partial discharge-free test transformer maintains extremely low background discharge levels during power frequency withstand voltage tests. This ensures that detected partial discharge signals originate only from the test object.

Why Does SF6 Technology Improve Test Reliability?

Compared with traditional oil-insulated or air-insulated systems, SF6 insulation provides higher dielectric strength and stronger arc-extinguishing capability. This results in:

• Improved insulation stability under high voltage

• Reduced electromagnetic interference

• Enhanced safety during long-duration testing

As a result, the SF6 partial discharge-free test transformer delivers more stable and credible test data, which is essential for passing IEC-based acceptance tests in overseas projects.

Where Is SF6 PD-Free Testing Applied in Power Systems?

SF6 PD-free testing is widely applied in:

• Power transformers and reactors

• GIS and HV switchgear

• High-voltage cables and accessories

• Insulation research and certification laboratories

In these applications, the SF6 partial discharge-free test transformer serves as a reliable high-voltage source for factory acceptance tests, routine tests, and commissioning inspections.

How Does Integrated Design Reduce Partial Discharge Levels?

Traditional test setups require external current-limiting resistors, coupling capacitors, and voltage dividers. Such configurations typically reach partial discharge levels close to 10 pC due to complex wiring and field distortion.

In contrast, integrated SF6 systems embed these components internally. With optimized layout and shielding, total partial discharge can be reduced to 5 pC, significantly improving measurement accuracy and system stability.

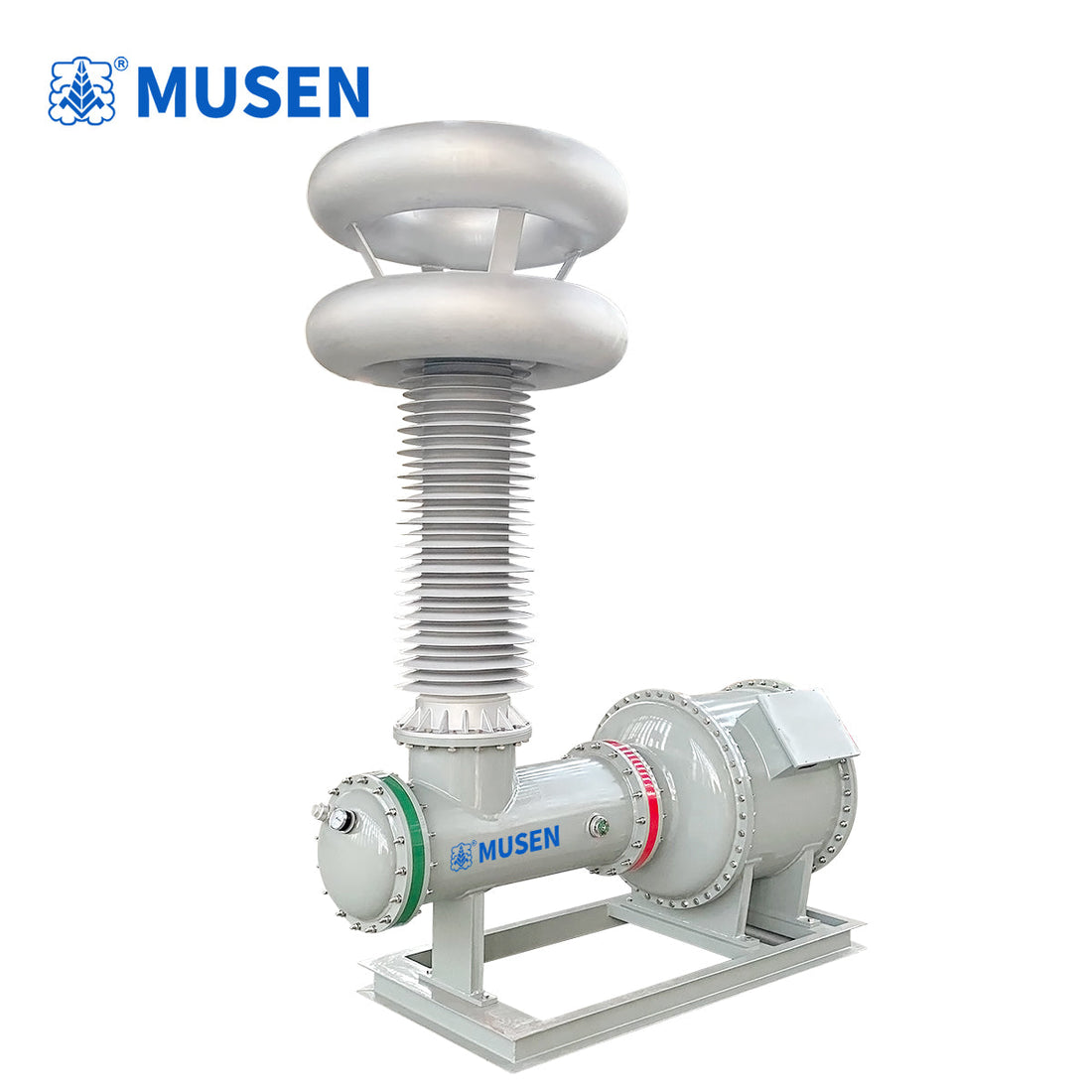

Product Overview: MS-YDQW SF6 Partial Discharge-Free Test Transformer

The MS-YDQW power frequency withstand voltage test device developed by Wuhan Musen Electric Co., Ltd. is a fully integrated SF6 PD-free testing solution designed for international power testing environments. As a high-performance SF6 partial discharge-free test transformer, it combines multiple functions into a compact and sealed structure.

Equipment model:
MS-YDQW Partial Discharge-Free Power Frequency Withstand Voltage Test Device (PD-Free Test Transformer)

Key technical advantages:

1. Strong arc-extinguishing capability and excellent insulation performance

2. Fireproof and non-flammable SF6 gas, ensuring intrinsic safety

3. Lightweight design with high integration, combining gas-insulated test transformer, coupling capacitor, current-limiting resistor, and voltage divider

4. Easy transportation and installation with small footprint

5. Clean operation with no oil contamination and minimal maintenance (only periodic gas pressure and density monitoring required)

6. Fully sealed metal enclosure, minimally affected by environmental conditions

By integrating all critical components, the MS-YDQW system achieves a total partial discharge level of 5 pC, outperforming traditional configurations and meeting strict international testing requirements.
Official website: https://musenelectric.com/

Conclusion: Is an SF6 PD-Free Test Transformer the Right Choice for Overseas Projects?

For global power engineering projects, accurate insulation testing is non-negotiable. SF6 PD-free technology offers a proven path to higher safety, cleaner operation, and more reliable test results. With its advanced integrated design and low partial discharge performance, the MS-YDQW solution from Wuhan Musen Electric Co., Ltd. provides overseas utilities and testing organizations with a dependable foundation for high-voltage insulation assessment and long-term asset reliability.
