AC/DC Hipot Tester: Principles of Dielectric Strength Testing
Understand how an AC/DC Hipot Tester evaluates electrical insulation, how transformer construction affects high-voltage testing, and which IEC standards guide test procedures.
Ac/Dc Withstand Voltage Tester, Ac/Dc High Voltage Tester, Ac/Dc Hipot Tester, Ac Dc Automatic Hipot Tester, Ac/Dc Dielectric Strength Testers
Website: https://www.musenelectric.com/
What Is an AC/DC Hipot Tester?
An AC/DC Hipot Tester is a high-voltage testing system used to assess whether electrical insulation can withstand a specified electrical stress. The test applies an AC or DC voltage according to a defined procedure and evaluates the response of the test object against established acceptance criteria.
The term hipot comes from high potential testing. In industrial applications, hipot testing supports production inspection, incoming component verification, maintenance, and laboratory evaluation of electrical appliances, components, and insulating materials.
A transformer-based test set may generate the required AC voltage, while DC testing requires an appropriately designed rectifier and control arrangement. The term AC/DC therefore describes the intended capability of the complete configured system, not an automatic feature of every high-voltage test transformer.
How Does Dielectric Withstand Testing Work?
AC withstand testing
An AC test applies alternating voltage to the insulation system. The resulting electric field stresses the dielectric, while the measurement circuit monitors relevant electrical quantities. The test procedure defines the voltage, duration, connections, and conditions under which a result is accepted.
AC testing is widely used for power-frequency insulation evaluation. For capacitive test objects, charging current can be significant, so transformer capacity must be selected with the load characteristics in mind.
DC withstand testing
A DC test applies direct voltage. The current response may change as the test object charges and dielectric absorption develops. Test duration, current limits, discharge procedures, and acceptance criteria should therefore follow the relevant equipment standard or approved test procedure.
AC and DC results are not automatically interchangeable. Their electric-field distributions and responses can differ, especially in composite insulation systems.
What Transformer Design Features Affect Test Performance?
Musen Electric's supplied product descriptions identify three construction options.
| Feature | YDJ(Z) | YDQ | GTB |
|---|---|---|---|
| Construction | Oil-immersed | Gas-insulated | Dry-type |
| Core or winding design | Single-frame core; coaxial winding arrangement | Lightweight gas-insulated test transformer | CD-type core and vacuum-cast epoxy coils |
| Stated design benefit | Compact enclosure and improved winding coupling | Reduced weight and no insulating-oil leakage | Portable construction and reduced risk of oil leakage |
| Selection priority | Conventional AC test applications | Handling and clean operation | Portability and dry insulation construction |

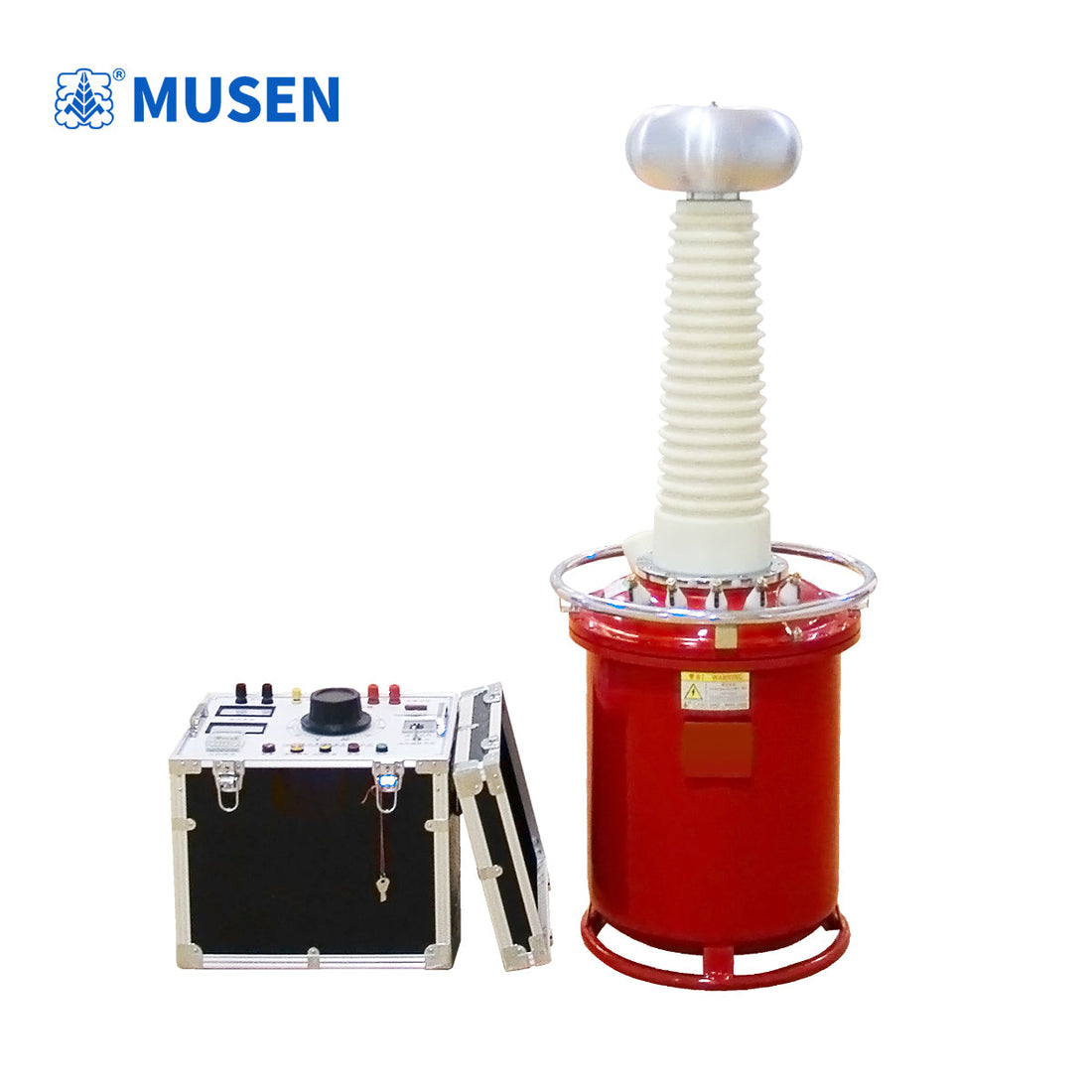

The YDJ(Z) series uses a single-frame core structure, with the primary winding on the core and the high-voltage winding arranged externally. The coaxial arrangement is intended to reduce leakage flux and improve magnetic coupling.
The GTB design uses vacuum-cast epoxy coils. The supplied description identifies improved resistance to moisture and reduced leakage flux as design objectives. Actual performance depends on the detailed design, manufacturing quality, operating conditions, and rated specification.
What Quantitative Data Should Engineers Verify?
| Parameter | Available product information | Engineering interpretation |
|---|---|---|
| Selectable capacity | 1–300 kVA | Confirm the available rating for the requested voltage |
| YDQ series voltage | Up to 300 kV stated for the series | Confirm the exact model and rated output |
| YDQ weight comparison | Approximately 20%–60% lighter than traditional oil-immersed units, depending on rating | Request the comparison basis and actual equipment weight |
| Output mode | AC or AC/DC according to system configuration | Verify the supplied voltage-generation and control architecture |
| Measurement accuracy | Not specified in the supplied description | Request instrument accuracy and calibration documentation |
| Duty cycle | Not specified in the supplied description | Confirm permissible test duration and cooling requirements |
These values distinguish supplied product-family information from specifications that still require confirmation. No unverified output-current rating or measurement-accuracy figure should be assumed.
Which IEC Standards Apply to Dielectric Testing?
IEC 61180:2016 addresses dielectric tests on low-voltage equipment using AC, DC, and impulse voltages, including test equipment and procedures for its defined scope. IEC 60060-1:2025 addresses high-voltage testing for equipment above 1 kV AC or 1.5 kV DC, subject to its stated scope and conditions.
For low-voltage insulation coordination, IEC 60664-1 provides principles and test-related requirements. For partial-discharge measurements, IEC 60270:2025 addresses charge-based measurement under AC up to 500 Hz or DC conditions within its scope.
Partial discharge is different from complete dielectric breakdown. Where required, it can be investigated using calibrated measurement circuits and appropriate noise discrimination. UHF and acoustic-emission (AE) methods are alternative or complementary diagnostic approaches for certain applications; they are not automatically included in a standard hipot test system.
How Can Engineers Obtain Repeatable Results?
A controlled test process should include:
- Inspect the test object and verify the intended test connections.
- Confirm the rated voltage, test duration, and acceptance criteria.
- Verify the instrument calibration status and protective functions.
- Apply voltage using the approved procedure and monitor the required measurements.
- Reduce the voltage, isolate the source, and discharge capacitive test objects safely.
- Record the result, equipment identification, conditions, and any abnormal observations.
High-voltage testing must be conducted by trained personnel using suitable barriers, grounding, interlocks, and site-specific safety procedures.
Why Contact Musen Electric?
When specifying an Ac/Dc Dielectric Strength Testers solution, engineers should identify the test object, voltage waveform, required output, test duration, and reporting requirements before requesting a quotation.
Musen Electric's product information covers several transformer construction options for high-voltage testing. Visit https://www.musenelectric.com/ to request the current datasheet and verify the configuration required for a specific application.
Frequently Asked Questions
Q: Does a hipot pass prove that insulation will never fail in service?
A: No. It demonstrates performance under the defined test conditions. Long-term reliability also depends on design, aging, environmental conditions, workmanship, and other relevant tests.
Q: Can partial discharge be measured with a conventional withstand tester?
A: Not necessarily. Partial-discharge measurement requires an appropriate measurement circuit, instrumentation, calibration, and a defined procedure, such as those covered by IEC 60270.
Q: Is DC testing always better than AC testing?
A: No. The correct test method depends on the equipment, insulation design, and governing product standard. AC and DC testing can produce different stress distributions and results.
