How Does a VLF Hipot Tester Test Power Cables in Field Applications?

Reliable cable insulation is essential for maintaining the stability and safety of modern power distribution networks. Medium-voltage and high-voltage cables are widely used in utilities, industrial plants, renewable energy systems, and underground transmission infrastructure. Before cables are commissioned or after maintenance work, engineers must verify that the insulation system can withstand operating voltage stress.

Very Low Frequency (VLF) withstand testing has become one of the most widely accepted diagnostic methods for evaluating cable insulation in field conditions. By applying a controlled AC voltage at a very low frequency, engineers can test long cable circuits efficiently without requiring extremely large power sources.

This article explains how a vlf hipot tester is used in cable testing, including its operating principle, safe connection procedures, standard testing steps, and key considerations when selecting equipment for professional field applications.

1. What Is the Principle of VLF Cable Withstand Testing?

VLF cable testing works by applying a sinusoidal high-voltage signal at a very low frequency, typically around 0.1 Hz. Power cables behave like capacitors, and at normal power frequency (50 or 60 Hz) they draw large capacitive currents. This makes conventional AC testing impractical for long underground cables.

By lowering the frequency dramatically, the capacitive current decreases proportionally, allowing compact equipment to generate the required high voltage. A vlf hipot tester produces this low-frequency AC voltage and applies it to the cable conductor while the cable shield is grounded.

During the test, leakage current and waveform characteristics are monitored continuously. Stable current levels indicate healthy insulation, while abnormal current behavior may reveal insulation degradation, water treeing, or partial discharge activity. Because the electrical stress remains alternating rather than DC, the test more closely represents real operating conditions of power cables.

  2. How Should Cable Connections and Safety Procedures Be Performed?

High-voltage testing always requires strict safety preparation. Before testing begins, the cable must be disconnected from the power system, verified to be completely de-energized, and discharged to ground.

The typical test configuration connects the high-voltage output terminal of the equipment to the cable conductor. The cable metallic shield or outer sheath is connected to a reliable ground point. For three-phase cables, each phase is tested separately while the remaining phases remain grounded.

When operating a vlf hipot tester, technicians also establish a safe testing zone using grounding cables, insulated test leads, and warning barriers. Operators must monitor system voltage, leakage current values, and protective alarms during the entire test process. If abnormal current spikes or breakdown signals occur, the test must be stopped immediately.

Proper grounding, isolation procedures, and operator training are essential to prevent accidents and ensure accurate diagnostic results.

 3. What Is the Standard Procedure for Performing a VLF Cable Test?

Professional cable testing generally follows a structured sequence to ensure consistency and compliance with international standards such as IEEE 400.2.

The first stage is preparation. Engineers measure insulation resistance and confirm key parameters such as cable voltage rating, cable length, and test voltage requirements. The testing system is then configured with the appropriate frequency and duration settings.

Once the setup is completed, the vlf hipot tester gradually increases the output voltage until the target test level is reached. The voltage is held for a defined time period to stress the insulation system. During this stage, engineers closely observe leakage current and waveform stability.

If the cable insulation remains stable without breakdown or excessive current rise, the cable passes the withstand test. After completion, the voltage is reduced slowly and the cable is discharged safely to eliminate stored electrical energy.

Following a standardized procedure ensures that cable insulation performance can be evaluated accurately in field environments.

 4. How Can Engineers Select the Right VLF Testing Equipment?

Choosing appropriate testing equipment depends on several engineering parameters. The most important factor is the output voltage rating, which must match the rated voltage level of the cable system being tested.

Testing equipment is commonly available in different voltage classes such as 30 kV, 40 kV, 50 kV, 60 kV, and higher. Another critical specification is the maximum load capacitance supported by the device, since long underground cable circuits require higher capacitive load capability.

A modern vlf hipot tester should include automated voltage ramping, accurate waveform generation, integrated protection functions, and digital measurement capabilities. Data storage and reporting features are also valuable for maintenance documentation and engineering analysis.

For utilities, electrical contractors, and industrial maintenance teams, selecting equipment from a reliable manufacturer ensures consistent performance, long-term reliability, and professional technical support.

Recommended Cable Testing Equipment

For power utilities, engineering contractors, and industrial maintenance teams requiring reliable field cable testing solutions, Wuhan Musen Electric Co., Ltd. provides advanced high-voltage testing equipment designed for modern power systems.

The company offers a professional series of Very Low Frequency cable testing systems widely used in cable commissioning, preventive maintenance, and fault diagnosis of medium-voltage networks.

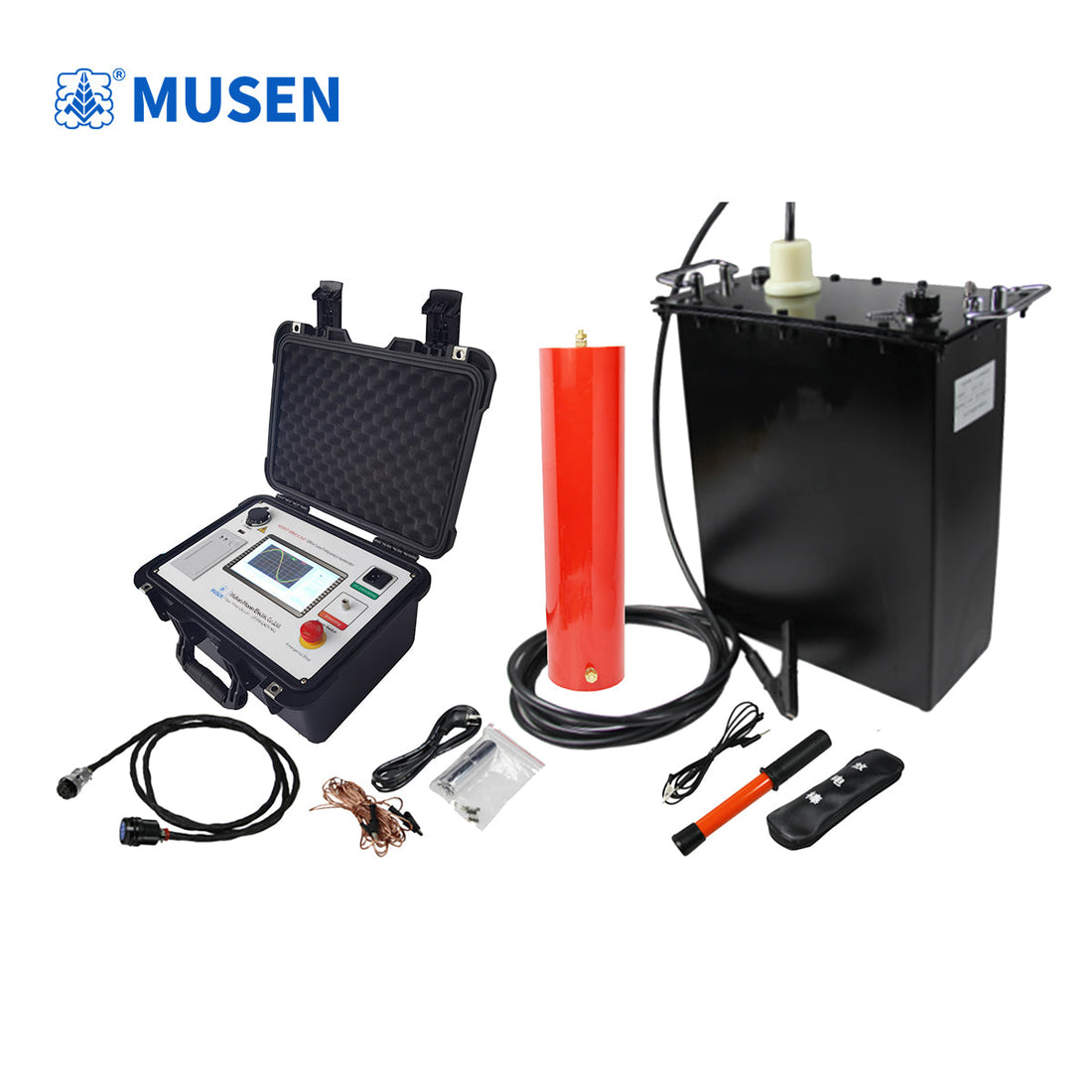

The recommended system is the MSVLF-30kV / 40kV / 50kV / 60kV / 80kV / 90kV Very Low Frequency High Voltage Tester, designed for efficient field testing of power cables.

Key advantages include:

• Digital frequency-conversion technology with microcomputer control for fully automated testing processes

• Simple wiring and easy field operation

• Multiple protection mechanisms including over-voltage and over-current protection

• Fast protection response ensuring safe testing conditions

• Closed-loop control technology for stable voltage output

• Touchscreen interface with automatic data storage and printing capability

• Multiple frequency selections (0.1 Hz, 0.05 Hz, 0.02 Hz) for different testing requirements

• Compact structure and lightweight design suitable for outdoor field work

• Bilingual operation interface supporting international engineering teams

For detailed specifications and product information, visit the official website:
🌐 www.musenelectric.com

Very Low Frequency cable testing has become an essential method for evaluating the insulation condition of medium-voltage power cables. By applying controlled low-frequency AC voltage, engineers can assess insulation strength while minimizing the power requirements of field testing equipment.

Understanding the testing principle, connection methods, and standardized procedures allows utilities and maintenance teams to perform reliable diagnostics and prevent unexpected cable failures. Selecting professional testing equipment from experienced manufacturers further improves testing efficiency and operational safety.

With advanced testing technology and practical field solutions, Wuhan Musen Electric Co., Ltd. continues to support power engineers worldwide in maintaining reliable and secure cable networks.
