How Does a VLF Hipot Tester Conduct Cable Withstand Voltage Testing?

In modern power systems, cable insulation plays a crucial role in ensuring safety and reliable electricity supply. With the expansion of urban grids and industrial power networks, medium and high-voltage cables are widely used. Before commissioning or during routine maintenance, cable insulation must be tested to prevent failures, water treeing, and partial discharges that can lead to outages.

Very Low Frequency (VLF) testing has become a preferred method in the electrical industry. By using a VLF Hipot Tester, engineers can simulate operational stresses on cables, detect insulation defects, and evaluate potential risks. This article explores the principles, procedures, safety considerations, and equipment selection for VLF cable testing, providing practical guidance for international power engineering teams.

 1. What Is the Principle of VLF Hipot Testing?


VLF (Very Low Frequency) testing uses a low-frequency AC voltage, typically 0.1Hz, to evaluate cable insulation. Compared with traditional AC or DC testing, VLF reduces the capacitive current of long cables, allowing compact and portable equipment to generate high-voltage stress efficiently.

The VLF Hipot Tester applies a stable AC voltage to the cable and continuously monitors leakage current and waveform patterns. Any abnormal fluctuations indicate insulation defects, water tree aging, or partial discharges. This approach closely simulates real operational conditions, making it more reliable for assessing medium-voltage XLPE cable insulation than DC testing.

 2. How Should Cables Be Connected and Tested Safely?

Content:
Prior to VLF testing, ensure the cable is fully de-energized, verified, and properly grounded. The tester’s high-voltage output should connect to the cable conductor, while shields or outer sheaths are grounded. Three-phase cables must be tested phase by phase, keeping the other phases grounded.

Safety measures include protective barriers, warning signs, and dedicated high-voltage grounding lines. Operators should monitor voltage, current, and protection systems in real-time. Immediate shutdown is necessary if anomalies occur. Proper connection and safety protocols ensure both accurate test results and operator safety.

 3. What Is the Standard Procedure for VLF Cable Testing?


The standard procedure includes preparation, parameter setting, voltage ramp-up, observation, and voltage ramp-down with discharge. First, verify insulation resistance, cable length, and rated voltage. Set the test voltage, frequency, and duration in the VLF Hipot Tester.

The tester gradually increases voltage to the target value and maintains it for a specified period while monitoring leakage current and waveform stability. Stable current without abnormal spikes confirms proper insulation. After testing, gradually lower the voltage and discharge the cable to remove stored energy, ensuring safety and accurate test results.

 4. How to Select the Right VLF Hipot Tester?


When choosing a VLF tester, consider output voltage range, maximum load capacitance, automation features, and data recording functions. Output voltage should match cable ratings, and the tester must operate stably under high capacitive loads. Modern VLF Hipot Testers offer digital control, automatic voltage ramp-up, measurement, and multi-level protection. Built-in data logging and report generation simplify documentation.

Selecting a reliable manufacturer like Wuhan Musen Electric Co., Ltd. ensures high testing accuracy, equipment stability, and ongoing technical support for international power engineering projects.

Recommended VLF Cable Testing Equipment

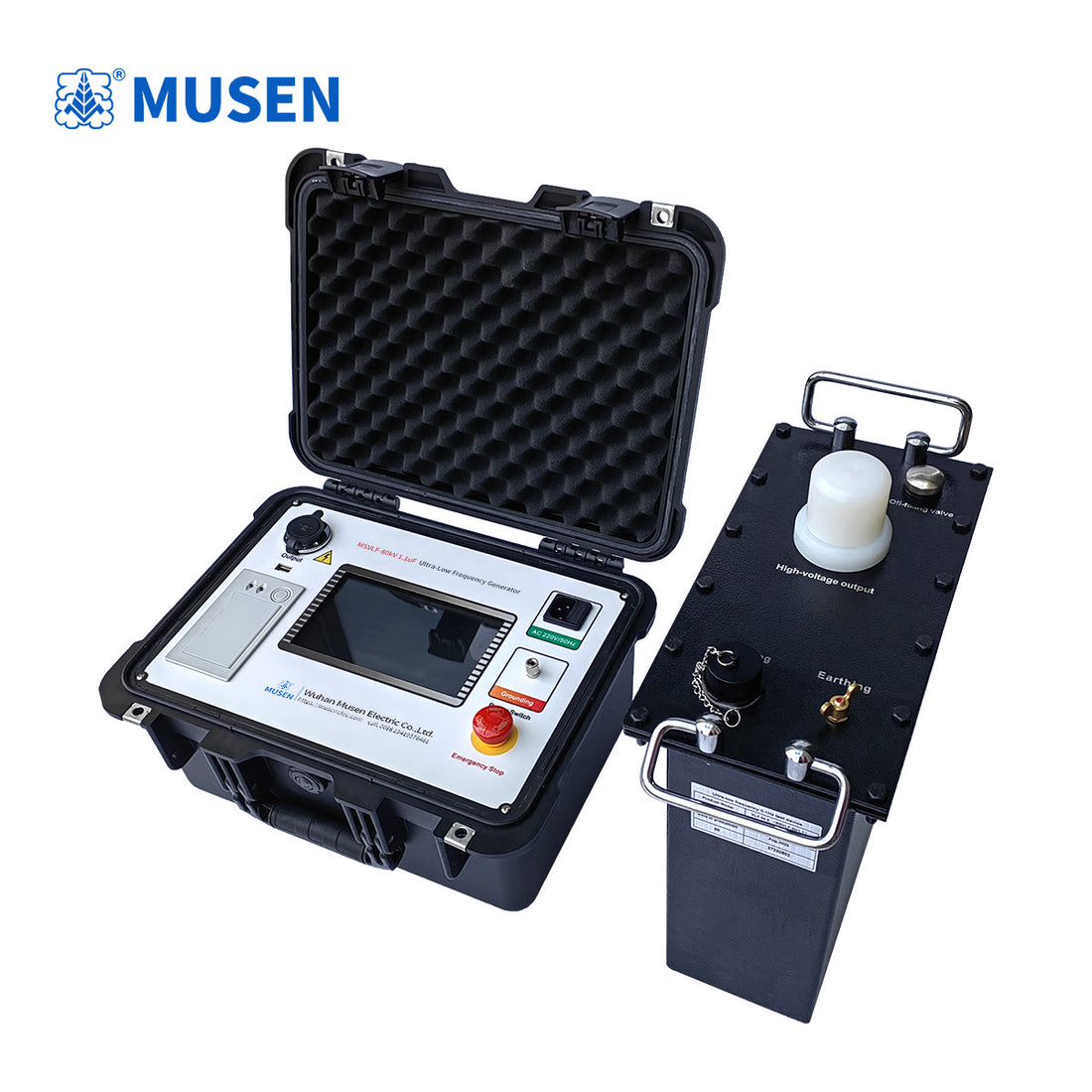

For medium and high-voltage cable testing, Wuhan Musen Electric Co., Ltd. offers the MSVLF Series Very Low Frequency High-Voltage Testers (30kV / 40kV / 50kV / 60kV / 80kV / 90kV).

Key Features:

• Digital frequency conversion and microcomputer control for fully automated voltage ramp-up, measurement, and protection

• Simple connections and easy operation for field use

• Multi-level protection (over-voltage, overcurrent on high/low voltage sides) with fast response ≤10ms

• Low-voltage control connection with optical isolation ensures operational safety

• High/low voltage closed-loop feedback eliminates capacitive charging effects

• Capacitive touchscreen, LCD display, automatic data storage, and printing

• Multiple frequency options (0.1Hz / 0.05Hz / 0.02Hz)

• Compact and lightweight design for outdoor operations

• English/Chinese interface

Official website: 🌐 www.musenelec.com

VLF testing is a reliable method for evaluating medium and high-voltage cable insulation. Understanding its principles, safe connection methods, standardized procedures, and proper equipment selection allows engineers to accurately assess cable condition, improve operational safety, and reduce the risk of failures. Utilizing professional equipment from Wuhan Musen Electric Co., Ltd. ensures efficient, reliable, and internationally compliant cable testing for power engineering projects worldwide.
