How Does a VLF Hipot Tester Improve Cable Insulation Reliability?

Introduction

Reliable cable insulation is critical for medium- and high-voltage systems worldwide. With increasing complexity in industrial, urban, and long-distance underground power networks, accurate testing of cable insulation has become a necessity.

A VLF Hipot Tester allows engineers to simulate operational stress on cables, detect partial discharges and insulation defects, and evaluate overall cable health. This article explains the testing principle, operational procedures, safety measures, and proper equipment selection for effective and safe cable testing in professional applications.

  1. What Is the Principle of VLF Hipot Testing?


The VLF Hipot Tester applies very low frequency (0.1Hz to 0.05Hz) AC voltage to medium- and high-voltage cables, reducing capacitive charging currents and simulating real operational stress. This method allows precise detection of insulation degradation, water treeing, and partial discharge activity. The device continuously monitors leakage current and waveform quality. Any irregularity signals a potential insulation defect. Compared to conventional AC or DC testing, VLF testing offers portability, safety, and reliable field measurement, providing engineers with accurate diagnostic data to predict cable failures.

 2. How Should Cables Be Connected and What Safety Measures Are Required?


Prior to testing, cables must be fully de-energized and verified for zero voltage. Proper grounding of conductors and shields is essential. For three-phase cables, each phase should be tested individually while the others are grounded. Safety barriers and warning signs must be installed around the testing area. Operators must continuously monitor voltage, current, and protective device status. The VLF Hipot Tester uses low-voltage control circuits and optical isolation, ensuring both operational safety and accurate measurement results.

 3. What Is the Standard VLF Testing Procedure?


The standard procedure includes cable preparation, parameter setting, controlled voltage ramp-up, continuous monitoring, and voltage ramp-down. Engineers first check insulation resistance, cable length, and rated voltage. Then, the VLF Hipot Tester is configured for target voltage, frequency, and duration. Voltage is gradually applied and maintained while leakage current and waveform are recorded. Stable readings indicate sound insulation, while anomalies suggest potential defects. After testing, voltage is slowly reduced and safely discharged, ensuring both operator safety and measurement accuracy. This workflow is suitable for field and indoor applications.

  4. How to Choose the Right VLF Hipot Tester?


Selecting a suitable VLF Hipot Tester requires attention to output voltage range, maximum capacitive load, automation features, and data recording capabilities. Modern testers provide digital controls, automatic voltage ramp-up, multi-level protection, and report generation. Choosing a reliable manufacturer, such as Wuhan Musen Electric Co., Ltd., ensures precise measurement, stable operation, and long-term technical support. Proper equipment selection minimizes testing errors, enhances system reliability, and allows engineers to accurately evaluate cable insulation for various applications.

Recommended Equipment

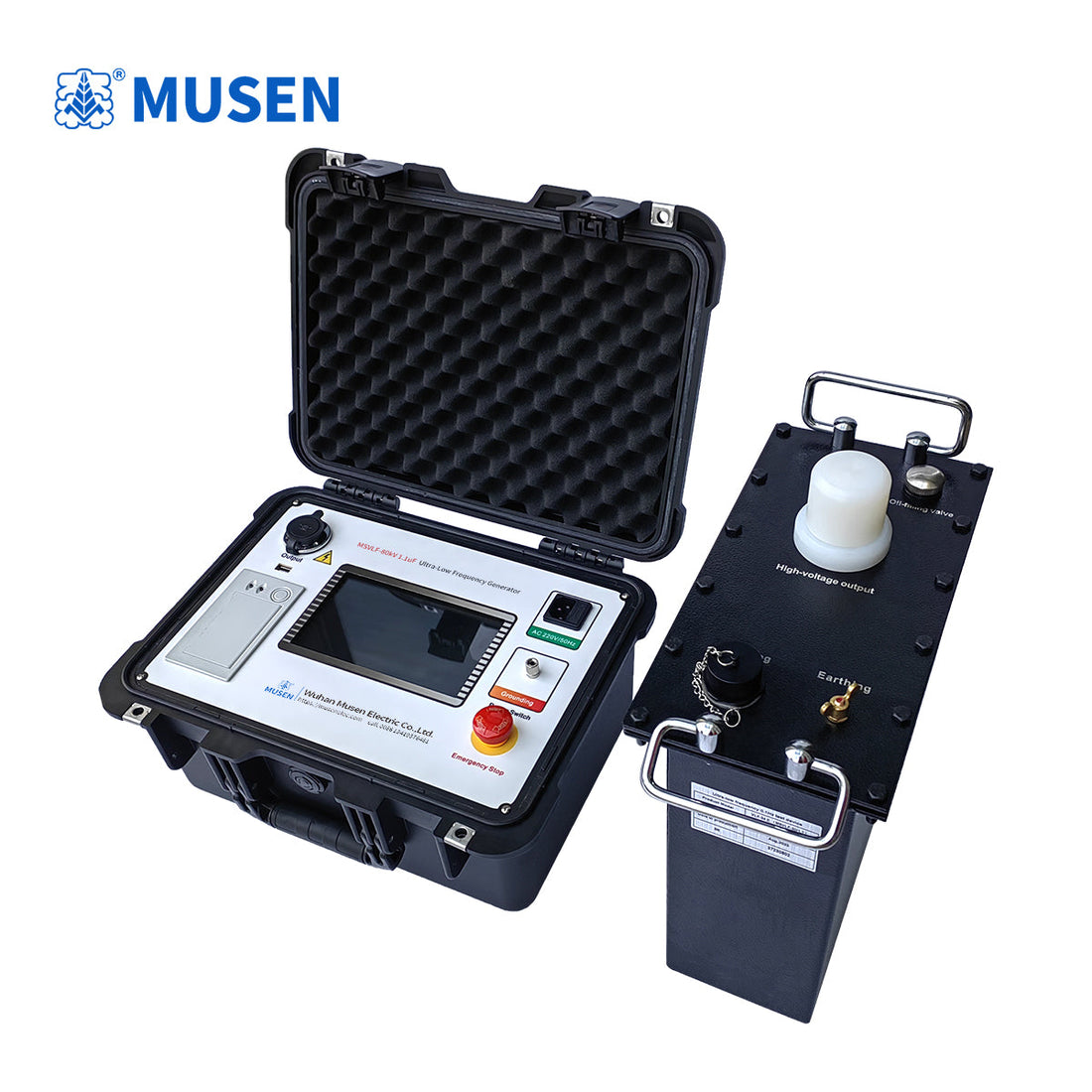

For medium- and high-voltage cable testing, Wuhan Musen Electric Co., Ltd. recommends the MSVLF Series Very Low Frequency High Voltage Testers (30kV / 40kV / 50kV / 60kV / 80kV / 90kV).

Key Features:

• Advanced digital frequency conversion technology with microcomputer-controlled automatic voltage ramp-up, measurement, and protection

• Simple connections and portable design for field operations

• Multiple protection mechanisms (over-voltage, high/low side overcurrent) with fast response (≤10ms)

• Low-voltage control with optical isolation for operator safety

• High and low voltage closed-loop feedback eliminates capacitive charging effect

• Capacitive touchscreen, LCD display, automatic data storage, and report printing

• Multi-frequency selection (0.1Hz, 0.05Hz, 0.02Hz) covering wide testing ranges

• Compact and lightweight, ideal for outdoor work

• English and Chinese interface switchable

Official website: 🌐 www.musenelectric.com

VLF testing is a reliable method for evaluating the insulation condition of medium- and high-voltage cables. Understanding its working principle, safe operation, step-by-step testing procedure, and appropriate equipment selection allows engineers to reduce failure risks and improve overall system reliability. Using a professional VLF Hipot Tester from Wuhan Musen Electric Co., Ltd. ensures efficient, safe, and internationally compliant cable testing for a wide range of power engineering projects.
