1. Why is Precise Winding Resistance Measurement Critical for Power Transformers?

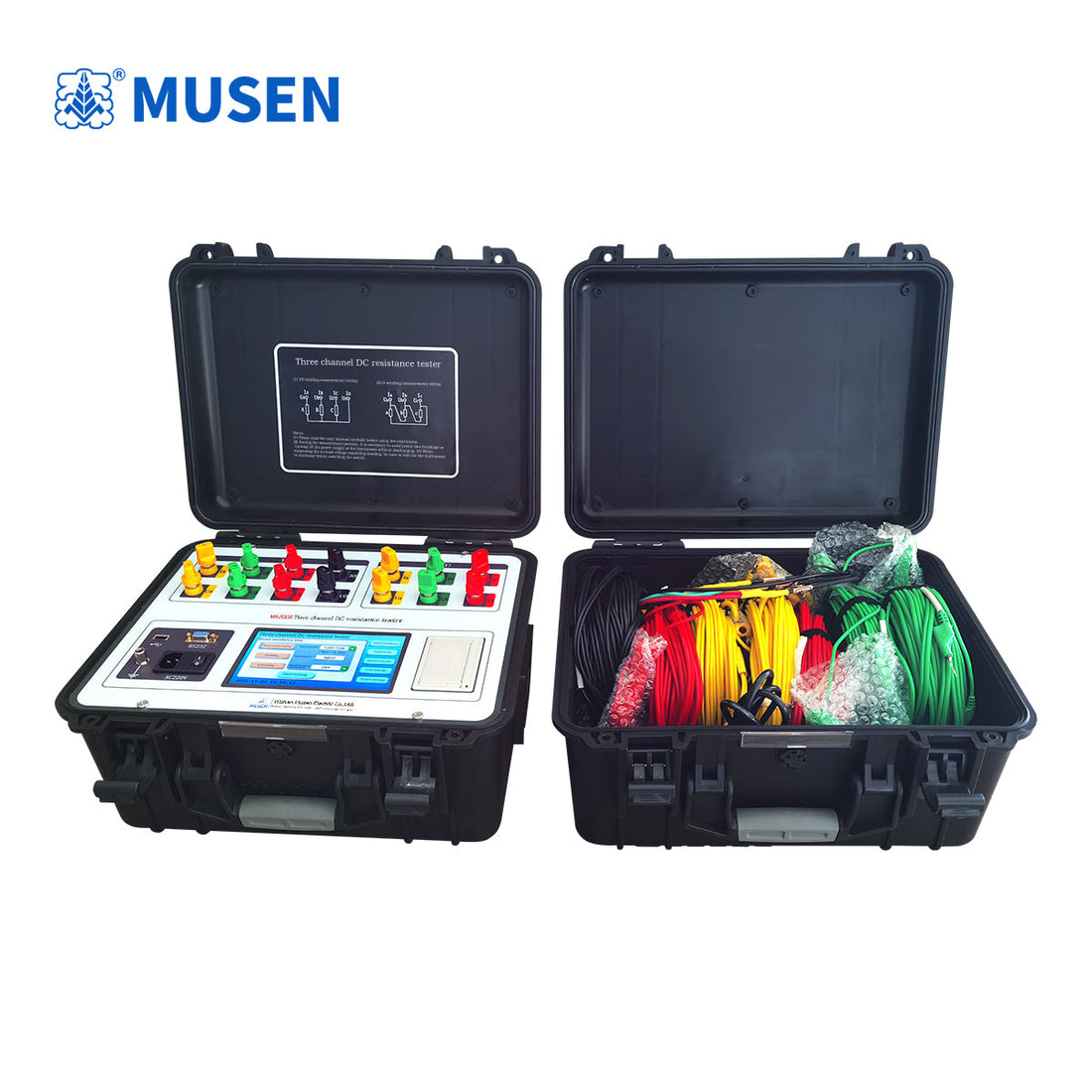

 In the high-stakes field of global electrical engineering, the integrity of transformer windings determines the longevity of the entire power grid. A Three Channel Dc Resistance Tester is not merely a diagnostic tool; it is a vital safeguard against catastrophic failure. By delivering precise DC injection, this instrument identifies microscopic abnormalities such as material impurities, poor solder joints, and strand breakage. For maintenance teams at www.musenelectric.com, these measurements provide the empirical data required to certify a transformer’s operational readiness under heavy thermal loads.

2. How Does the 3-Phase Transformer Resistance Analyzer Solve Field Testing Challenges?

Traditional testing methods often struggle with the high inductance inherent in large-scale power transformers, leading to long stabilization times. The modern Three Channel Dc Resistance Tester utilizes advanced magnetic boosting technology to overcome this physical barrier. By simultaneously energizing three phases, the equipment neutralizes the core's magnetic inertia, allowing for rapid data acquisition. This structural efficiency is particularly beneficial for five-column core units and low-voltage delta-connected windings, where conventional single-phase ohmmeters fail to provide timely results.

3. What Technical Innovations Define a Professional Transformer Ohmmeter?

 Professional-grade equipment must adapt to diverse environmental conditions and material specifications. Technical sales and engineering firms rely on advanced algorithms that incorporate temperature compensation coefficients. Whether the winding is composed of copper or aluminum, the system automatically adjusts the resistance value to a standard reference temperature. This ensures that data collected in the arid climates of Uzbekistan or the humid regions of Southeast Asia remain comparable and authoritative for long-term trend analysis.

4. Structural Features and Core Specifications of Musen Electric Equipment The following technical attributes define the performance standards of our latest Three Channel Dc Resistance Tester and supporting diagnostic range: 5. Frequently Asked Questions (FAQ)

Q1: How does the "Three-Channel" mode improve site efficiency?

By connecting all three phases at once, the operator eliminates the need for repeated climbing and rewiring. The instrument stabilizes the magnetic field of the entire core simultaneously, reducing the total test window by up to 70% compared to traditional single-channel devices.

Q2: Can this equipment detect a single broken strand in a multi-strand winding?

Yes. Because the tester measures resistance with high resolution, even a slight increase in resistance caused by a single broken strand or a loose internal connection will be flagged during the unbalance rate calculation.

Q3: What is the significance of the "Unbalance Rate" in the final report?

The unbalance rate compares the resistance between phases. A deviation beyond standard limits (typically 2% for transformers) indicates internal defects like tap changer misalignment or faulty internal connections that require immediate inspection.

Q4: Is the equipment compatible with both Y and Delta transformer connections?

Absolutely. The tester features dedicated logic for YN connections (with neutral detection) and Delta (D) connections, including a phase-by-phase mode to ensure comprehensive coverage of all transformer architectures.
