In high-voltage power systems, insulation defects are one of the leading causes of equipment failure. For overseas utilities, EPC contractors, and testing laboratories, accurate detection of insulation performance is critical before commissioning. This article focuses on the working principle and application technology of the partial discharge free test transformer (1/5), explaining how it supports reliable power equipment testing and meets international engineering expectations.

### What Is the Working Principle Behind Partial Discharge-Free Testing?

A partial discharge-free testing solution is designed to generate high voltage while strictly controlling internal electric field distribution. By optimizing winding structure, insulation materials, and shielding design, the transformer suppresses internal discharge sources. In operation, the partial discharge free test transformer (2/5) provides a clean voltage waveform, ensuring that any detected discharge originates from the tested object rather than the test system itself.

### Why Is This Technology Essential for Power Equipment Tests?

Modern power assets such as GIS, power transformers, and high-voltage cables require ultra-low background noise during testing. Traditional test transformers may introduce interference, affecting measurement accuracy. Using a partial discharge free test transformer (3/5) allows engineers to evaluate insulation condition with higher confidence, supporting compliance with IEC and IEEE standards.

### Where Is It Commonly Applied in Real Projects?

This technology is widely used in factory acceptance tests, on-site commissioning, and routine diagnostics. Typical applications include transformer insulation verification, GIS withstand voltage tests, and research laboratories. For international projects, a partial discharge free test transformer (4/5) helps reduce retesting costs and shortens project schedules by delivering stable and repeatable results.

### What Makes the Test Results More Reliable?

Reliability comes from both structural design and protection mechanisms. Low-impedance output improves voltage stability, while integrated overcurrent and overvoltage protection safeguards the system. These features ensure that the partial discharge free test transformer (5/5) operates safely even under demanding test conditions.

As power systems continue to move toward higher voltage levels and stricter quality requirements, partial discharge-free testing has become a core diagnostic method. Understanding its principles and applications helps overseas users select the right equipment, improve test accuracy, and extend the service life of critical assets.

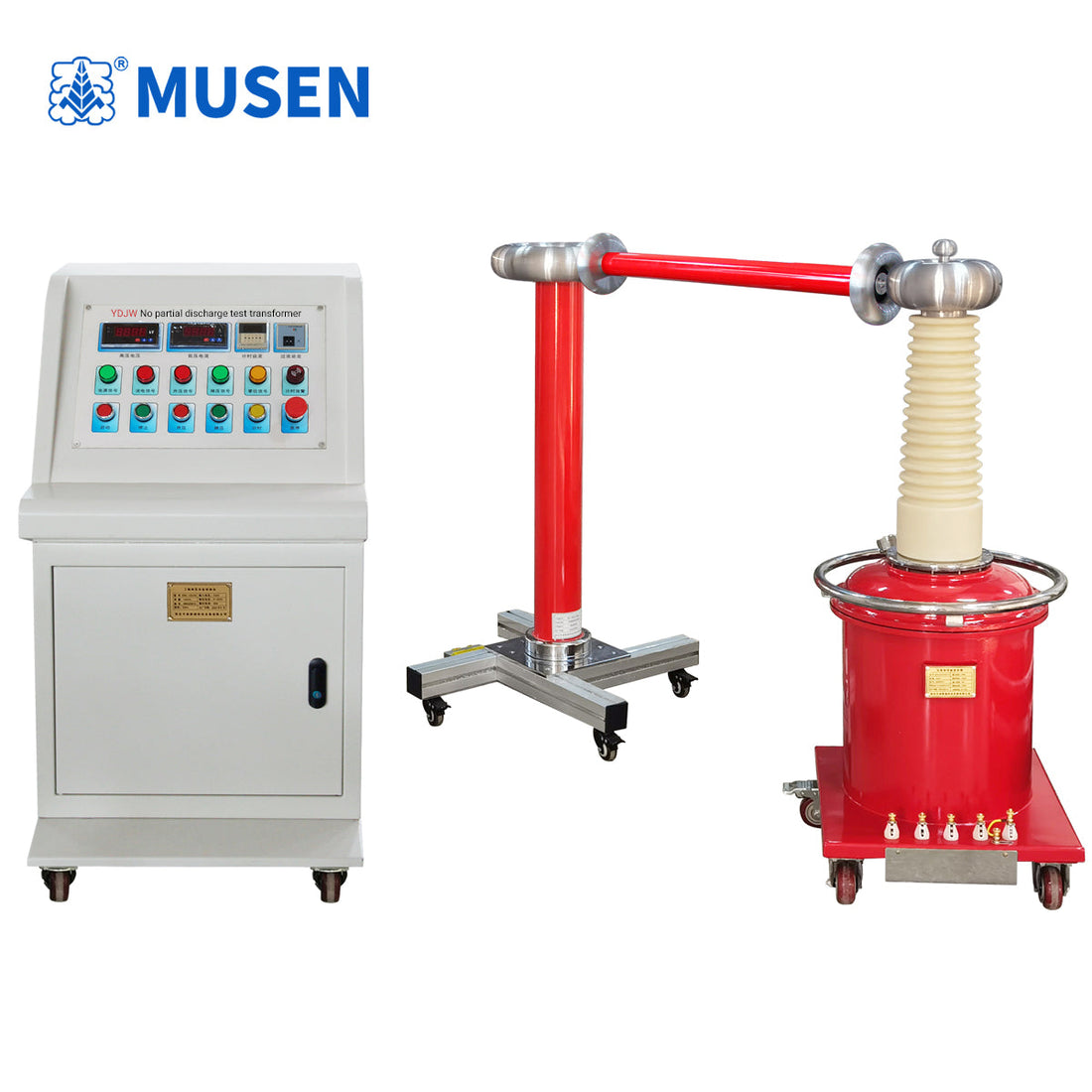

Product Overview: MS-YDJW Oil-Immersed Partial Discharge-Free Test Transformer

Developed by Wuhan Musen Electric Co., Ltd. and showcased on its official website https://musenelectric.com/, the MS-YDJW oil-immersed partial discharge-free test transformer is engineered for professional high-voltage testing applications. Its key advantages include:

• Epoxy cylinder structure for enhanced mechanical strength and insulation stability

• Low-impedance voltage output, exceeding national standard requirements

• High insulation class with partial discharge level ≤5 pC

• Reliable overcurrent and overvoltage protection to ensure safe operation

With its robust design and precise performance, the MS-YDJW model provides overseas power utilities and testing organizations with a dependable solution for advanced power equipment testing.
